Description

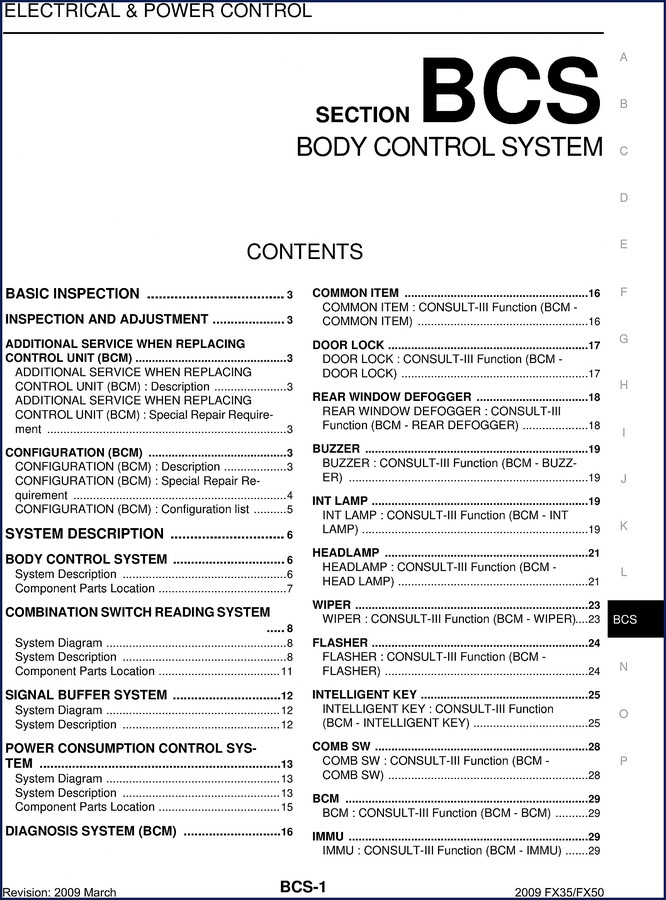

Infinity FX35, FX50 Service Manual

If you’ve ever cracked open an aftermarket manual and found a torque spec that doesn’t match the bolt in your hand, you know what I’m talking about. That’s the kind of frustration that wastes an afternoon and leaves you chasing leaks. I’ve been twisting wrenches for 28 years, and I’ve seen more stripped threads from bad aftermarket data than from rust. The Infinity FX35, FX50 Service Manual on this page is the real deal. Printed from the factory source, 211 pages, no guesswork. This is what the dealership techs use. If you’re working on an FX35 or FX50 and you want the job done right the first time, stop looking for shortcuts and get the factory book.

BASIC INSPECTION: What the Factory Workflow Looks Like

The first section of this manual isn’t fluff. It walks you through the DIAGNOSIS AND REPAIR WORKFLOW with an OVERALL SEQUENCE and DETAILED FLOW. That means you get a logical path from symptom to fix, not a random guess. Page 5-7 lay out the step order. If you’ve ever skipped a step and ended up with a no-start condition because you forgot to initialize the system, you’ll appreciate this. The manual also covers INSPECTION AND ADJUSTMENT, including the ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL. That’s a real-world pain point—pull the battery without following the procedure and you lose memory settings, trigger codes, or worse. The manual gives you the exact “Special Repair Requirement” for that scenario. No ambiguity.

System Initialization: Don’t Skip This

Another thing that separates factory manuals from the rest is the SYSTEM INITIALIZATION section. After you replace a control unit—say, the automatic drive positioner ECU—you can’t just plug it in and drive off. The manual dedicates a page to the INITIALIZATION PROCEDURE. It tells you what sequence to follow, what tools you need (usually just a scan tool and your fingers), and what happens if you ignore it. I’ve seen more than one DIYer replace a seat motor and then wonder why the memory function doesn’t work. The factory procedure is on page 9. Follow it.

MEMORY STORING: How to Keep Settings Saved

The MEMORY STORING section is short—page 9-10—but critical. It covers the Memory Storage Procedure. If you’re working on an FX35 or FX50 with the automatic drive positioner, you need to know how to store seat, mirror, and steering wheel positions. The manual gives you the exact button sequence and the conditions required (ignition on, transmission in park, etc.). Aftermarket manuals often skip the “Special Repair Requirement” part, which is where the factory tells you what to do if the memory function fails after a battery disconnect. This manual includes it. Infinity FX35 FX50 2009 Body Control System Electrical pairs well if you’re diving into the body control side.

SYSTEM DESCRIPTION: Automatic Drive Positioner System

This is the meat of the manual. The SYSTEM DESCRIPTION section covers the AUTOMATIC DRIVE POSITIONER SYSTEM in detail. You get a System Diagram, System Description (OUTLINE), Component Parts Location, and Component Description that breaks down CONTROL UNITS, INPUT PARTS (Switches, Sensors), and OUTPUT PARTS. If you’re troubleshooting a seat that won’t move or a mirror that doesn’t return to the memory position, this section saves hours. The manual doesn’t assume you have a factory scan tool—it shows you where the sensors are and how to test them with a multimeter. Infinity G35 Coupe 2003 Lighting System Service Manual won’t help you here, but this one will. For engine work, 2003 G35 Coupe Engine Mechanical Service Manual is a different manual entirely—this one focuses on body interior systems.

Manual Function and Seat Synchronization: Factory Flow

Within the SYSTEM DESCRIPTION, there are subsections for MANUAL FUNCTION and SEAT SYNCHRONIZATION FUNCTION. Each has its own System Diagram, Description (OUTLINE, OPERATION PROCEDURE, DETAIL FLOW), and Component Parts Location. The DETAIL FLOW for the seat includes the tilt and telescopic linkage. If you’re replacing a seat track or a motor, the manual shows you the mechanical sequence—don’t guess which bolt comes out first. The torque values for the seat mounting bolts are listed in the Component Description. I’d trust those numbers over any aftermarket CD-ROM from 2005. Speaking of trust, Manual Transmission work isn’t in this book, but if you’re dealing with a stick shift, you’ll want a separate factory manual for that. Manual Transmission is a different beast entirely.

One thing that stands out: the manual tells you exactly what to do after replacing a control unit—ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT includes both Description and Special Repair Requirement. That’s the kind of detail that keeps you from calling a tow truck.

Source Validity: Why OEM Beats Aftermarket

I’ve used every brand of aftermarket manual out there. Some are decent, but none match the original factory print. This manual comes from the OEM source—likely the same PDF the dealer network uses. The page count is 211 pages, not some condensed 50-page pamphlet that leaves out the “Special Repair Requirement” notes. The torque values, wiring diagrams, and initialization procedures are what the engineers wrote. If you’ve ever had an aftermarket manual tell you to “tighten to spec” without giving a number, you know the value of this. It’s not about convenience—it’s about not breaking something expensive.

FAQ

Does this manual cover the engine or transmission?

No. The FX35 and FX50 Service Manual in this listing covers the BODY INTERIOR section, specifically the AUTOMATIC DRIVE POSITIONER SYSTEM. That includes seat, mirror, steering wheel memory, tilt/telescopic, entry/exit assist, and intelligent key interlock functions. For engine or transmission work, you would need a separate factory manual for those systems.

Can I use this on a 2004 FX35?

Yes—the manual covers both FX35 and FX50 models across multiple years. Always verify the specific system diagrams against your VIN.

Look, I’m not going to sell you on hype. What I will tell you is that if you own an FX35 or FX50 and you plan to work on the automatic drive positioner, this 211-page factory manual is the only source you should trust. Aftermarket manuals will leave you guessing. Access the Factory Manual and get back to turning wrenches with the right numbers in front of you.
