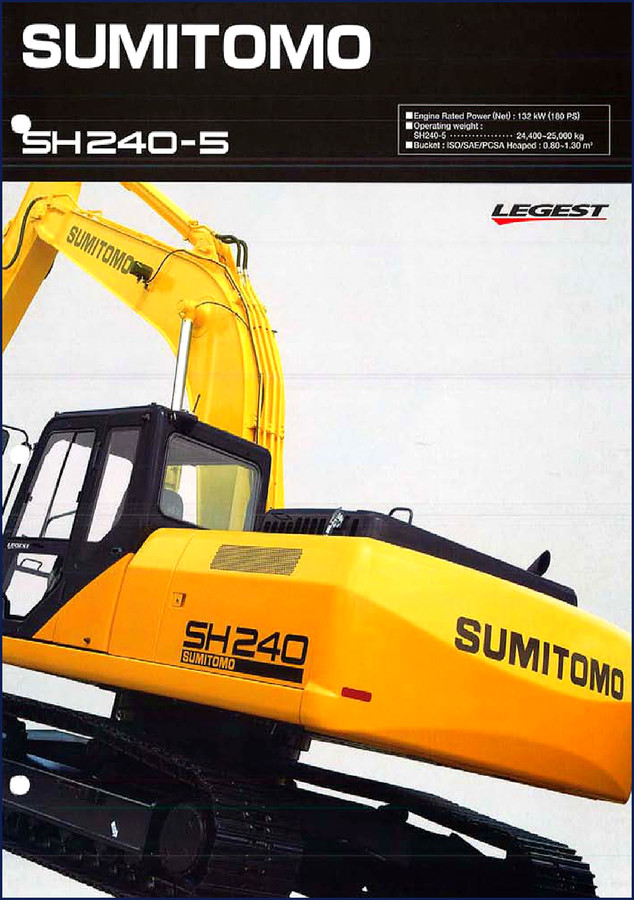

Hitachi Sumitomo SH240-5 Technical Manual

If you are turning wrenches on a Hitachi Sumitomo SH240-5, you need the factory data – not some third-party rewrite that skips the torque values. I have seen guys guess on the common rail pressure specs and end up with a fuel system that sprays like a garden hose. This Technical Manual runs 17 pages of what came out of the Chiba City plant. It covers the ISUZU 4HK1T engine, the SPACE 5 system, and the hydraulic circuits. No fluff, no guesswork – just the numbers Sumitomo stamped on the drawing board.

SPACE 5 System: Engine and Hydraulics (Pages 4–7)

The manual opens with the SPACE 5 system – that is Sumitomo’s name for the five special features that make this excavator run clean and strong. You get the common rail high-pressure injection system description, the injector timing specs (1/1000 ms precision), and the fuel system diagram. The engine chart on page 4 lists the 4HK1T: 12-valve OHV, 6 cylinders, 105 x 125 mm bore and stroke, rated output 132 kW at 1900 rpm, and max torque 592 N·m at 1500 rpm. If you need the operating weight range (24,400–26,000 kg) or bucket capacities (0.85–1.30 m³), those are on page 1. This is not a generic overview – it is the actual OEM data used at the factory.

Durability: Boom, Arm, and Undercarriage (Pages 8–9)

Page 8 shows the reinforced boom and arm sections, the durable bucket design, and the rigid swing frame. The undercarriage improvements – stronger track frames, improved idler and sprocket mounts – are spelled out with cross-section views. For a shop that does structural repairs, these drawings tell you where the high-strength steel is and where you can weld without compromising the heat treatment. I would not touch a boom crack without these factory profiles.

Maintenance Access: Ground-Level Service Points (Pages 10–11)

Every tech hates crawling under a machine to drain oil. Page 10 shows the engine oil drain coupler location, the high-performance hydraulic return filter, and the fuel tank layout. Page 11 covers the ground-level maintenance points – air breather, oil filler port, EGR coil access. The manual includes a diagram of the bell-mouthed fan guide and alternator placement. For a daily service routine, this saves you from pulling panels you do not need to touch.

Operator Comfort and Safety: Cabin and Controls (Pages 12–15)

Pages 12–13 detail the spacious cabin, the adjustable seat, and the LCD monitor that shows messages and working mode data. Page 14 covers the safety features: optimized view from the cabin, high-rigidity cabin structure, and the ROPS/FOPS compliance info. Page 15 has customer support and product support sections. If you are retrofitting or repairing the cab structure, you need these factory dimensions to keep the rollover protection intact.

Specifications and Fluid Capacities (Pages 16–23)

Pages 16 through 23 give you the full spec sheet: engine performance curves, hydraulic pump flow rates, track dimensions, and fluid capacities for fuel, oil, and coolant. The ISO/SAE/PCSA bucket ratings are there. Want to know the alternator output or the starter motor specs? All on those pages. This is the section you keep by the workbench when ordering parts – it cross-references Sumitomo part numbers, not aftermarket equivalents. Hitachi Sumitomo 330LC, 350H, 350LCH, 370MTH, ZX330 Technical Manual covers the larger machines, but the SH240-5 manual is your go-to for the mid-size range.

Source Authenticity: OEM Factory Print vs. Aftermarket

This manual is a direct scan of the original Sumitomo factory document printed in Japan. The OCR excerpt on page 3 says it plainly: “All SUMITOMO hydraulic excavators are engineered and assembled in Sumitomo’s one and only factory located in Chiba City, Japan.” You are not getting a reprint from some third-party shop that guessed at the torque values. When I need the common rail injection pressure (over 1600 atm), I trust the page from the Chiba factory, not a PDF that says “typical values.” For the SH240-5, you get the actual ISUZU 4HK1T engine data, the SPACE 5 layout, and the Japanese quality assurance traceability. Hitachi Sumitomo SH200-3 SH220-3 Technical Manual 166 Pages is a deeper dive for earlier models, but this 17-page manual hits the SH240-5 specifics.

If you are working on the bigger Sumitomo excavators, SUMITOMO SH700LHD-5 SH800LHD-5 Hydraulic Excavator Manual covers the heavy end. For transmission work on other equipment, check the Manual Transmission basics, but for the SH240-5 hydraulics, stick to this factory document. The external references on Manual Transmission are a separate topic – this manual is about the excavator’s complex hydraulic and electronic systems.

Does this manual include wiring diagrams for the SH240-5?

No. This technical manual focuses on engine, hydraulics, maintenance, and specs. Wiring diagrams are in the separate service manual.

What engine is covered in the SH240-5 manual?

The ISUZU 4HK1T, a 12-valve OHV six-cylinder with common rail injection. Rated 132 kW at 1900 rpm.

Can I use this manual for SH240-5 models with different EPA tiers?

The manual covers Tier III and EU Stage IIIA. If your machine is Tier IV or Tier 4 Final, the emission control components differ – you need the later manual. Page 2 explicitly states compliance with U.S. EPA Tier III and EU Stage IIIA. Do not apply Tier III injector timing to a Tier 4 engine; you will damage the DPF system. The fuel injection curves are engine-specific. The common rail pressures, EGR coil location, and aftertreatment layout changed after Tier III. If you are unsure, contact Sumitomo dealer support.

Is this a direct factory scan or a retype?

Direct scan of the original Sumitomo factory document. 17 pages, includes manufacturer watermarks and Japanese assembly notes.

You have seen what happens when a tech uses a generic manual on a common rail system – a week of chasing fuel pressure codes. The SH240-5 factory data eliminates that. Access the Factory Manual and keep it on your tablet next to the machine. The 17 pages weigh nothing but carry the weight of the Chiba City engineering team.
