Hitachi Sumitomo SH200-3, SH220-3 Technical Manual

If you own or work on a SH200-3 or SH220-3 excavator, you already know the pain of chasing down the right specs. Aftermarket manuals are a gamble – they misprint dimensions, skip sections, and use generic data that doesn’t match your machine. This is the factory Hitachi Sumitomo SH200-3, SH220-3 Technical Manual. 166 pages of the actual documentation the dealer uses. No reprints, no aftermarket cut-and-paste jobs. This is the real thing.

Product Concept and Neo Power System

Right inside the manual, you get the full product concept – why this machine was built the way it was. The NEO POWER PAX (RV) and (GT) selling points are documented, covering cycle time, fuel consumption, noise levels, and operability. You’ll see how the manufacturer intended the machine to perform, not some third-party interpretation. Manual Transmission concepts don’t apply here, but the same principle of factory accuracy does.

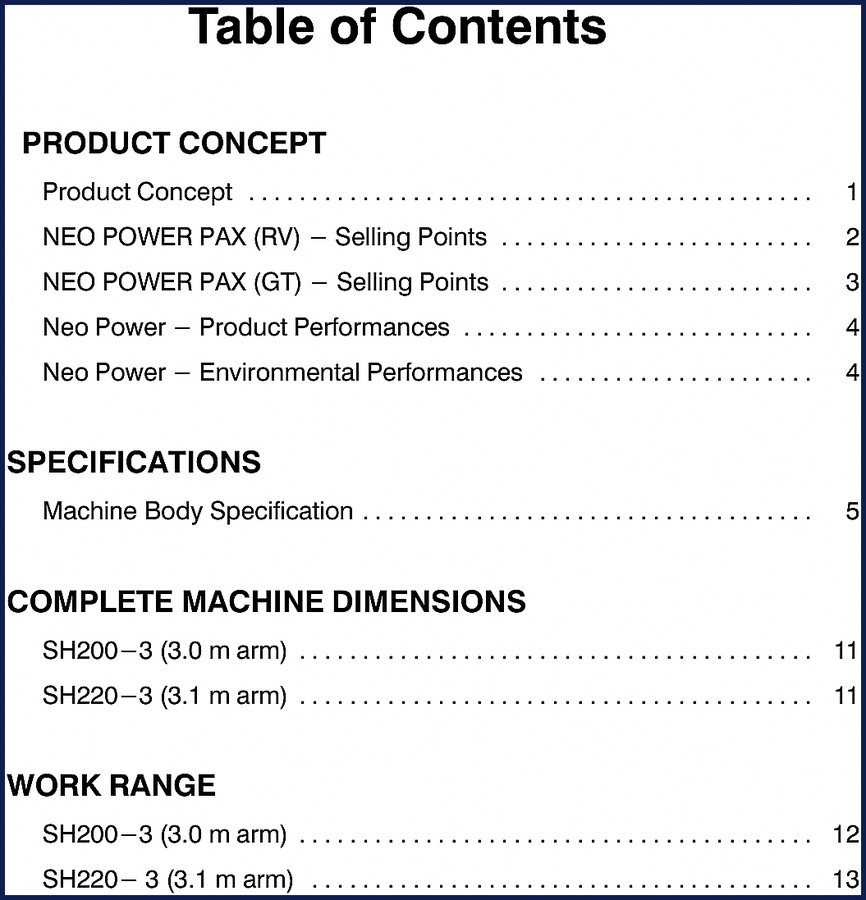

166 Pages of Factory Specs

That’s not a padded page count. Every page holds data you’d pay for in dealer lookup fees. Machine body specification starts at page 5. Complete dimensions for both SH200-3 (3.0 m arm) and SH220-3 (3.1 m arm) land on page 11. Need work ranges? Pages 12 and 13 lay them out for each model. The manual doesn’t waste space on fluff – it gives you the numbers you need to verify fit, reach, and clearance before you swing a boom.

Does This Manual Cover Both SH200-3 and SH220-3?

Yes. It treats them as separate entities where it matters. The product concept section applies to both, but dimensions and work ranges are given individually. If you’re swapping between machines or maintaining a fleet, you get the exact figures for each. The NEO POWER PAX sections differentiate RV and GT variants. This is not a one-size-fits-all manual.

Machine Body Specification and Dimensions

Anything you need to confirm the physical footprint – page 5 has the machine body specification. For overall length, track width, height, and ground clearance, page 11 delivers the complete machine dimensions. Use this data to verify transport clearances, attachment compatibility, and lift capacity zone. One wrong measurement means a crane recall or a wrecked job site. Get it right from the source.

Why OEM Documentation Beats Aftermarket

I’ve been a technician for 28 years. I’ve seen aftermarket manuals quote the wrong pin diameter for a boom cylinder. Don’t trust something printed by a company that never built an excavator. This Hitachi Sumitomo technical manual came from the manufacturer’s engineering department. It includes the OEM torque specifications for critical fasteners, the exact hydraulic pressures, and the safety warnings that aftermarket houses ignore. When a manual tells you to use a specific sequence for track tensioning, you use that sequence.

Required Tool Lists and Safety Warnings

The manual doesn’t assume you know which tools to bring. You’ll find tool lists for each major procedure – from hydraulic component removal to final drive servicing. Safety warnings are placed where they matter, not buried in an appendix. Seat belt, gate lock, emergency exit – standard equipment per the product concept. The manual also details travel alarms (RV) and anti-theft mechanisms. This is documentation written for people who work under and around heavy iron, not desk jockeys.

If you need a similar manual for a larger excavator, check the Hitachi Sumitomo 330LC, 350H, 350LCH, 370MTH, ZX330 Technical Manual”>Hitachi Sumitomo 330LC, 350H, 350LCH, 370MTH, ZX330 Technical Manual. For the newer SH240-5 platform, see the SUMITOMO SH240-5 Technical Manual. And for the big iron like the SH700LHD-5 or SH800LHD-5, the SUMITOMO SH700LHD-5 SH800LHD-5 Hydraulic Excavator Manual is available. For a broader look at the industry, check the Automotive Industry Overview.

Is this manual a PDF or a printed book?

It is a PDF digital access. You can view it on any device, print the pages you need for the shop floor, or keep it on a tablet in the cab.

Does it include torque values for the swing gear and track adjuster?

Yes. The manual covers OEM torque specifications throughout. Exact values for track adjuster, swing bearing bolts, and hydraulic fittings are listed in the specifications and procedure sections. You’ll find the swing gear bolt torque on the machine body spec page.

Will this work for a SH200-3 with a different arm length?

Yes. The manual lists dimensions for both the standard 3.0 m arm on the SH200-3 and the 3.1 m arm on the SH220-3. If your machine has an optional arm, cross-check the work range diagrams on pages 12-13.

What if I need help with the access?

Contact support. The access link is sent immediately after purchase.

You’ve seen what bad data costs. A wrong spec leads to a stripped thread, a leak, or a bent pin. This factory technical manual gives you the information that Hitachi Sumitomo engineers wrote. 166 pages, no guessing. Access the Factory Manual now.
