Hendrickson HAS Tandem, HAS Single 1999 Service Manual – What You Need on the Bench

I have seen more than a few guys drop a truck on the rack and start guessing at torque values. You know what happens. Either you break a bolt, strip a thread, or the ride height is off by an inch and the driver’s back complains in a week. That is why you need the factory Hendrickson HAS Tandem, HAS Single 1999 Service Manual on your bench. Not some third-party rewrite that says “tighten until snug.” You want the real numbers.

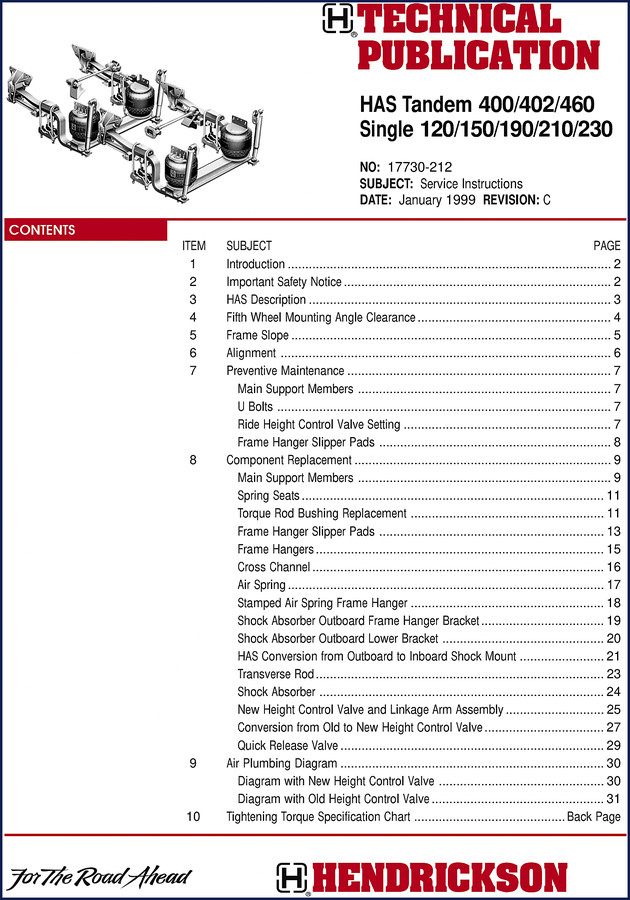

This manual covers the HAS Tandem 400/402/460 and HAS Single 120/150/190/210/230 suspensions. 33 pages of original Hendrickson service instructions dated January 1999, revision C. It tells you exactly how to align the axles, set ride height, and replace components without inventing your own procedures. If you are a shop owner or a DIY owner-operator, this is your safety net.

Seventh-Mile Preventive Maintenance Checks

Section 7 in this manual covers preventive maintenance. Page 7 walks you through main support members, U-bolt re-torque intervals, and ride height control valve settings. The manual tells you to check frame hanger slipper pads for wear at every oil change. I have seen slipper pads wear down to metal and start gouging hangers. The spec is in there. Do not skip it.

For the ride height control valve, the procedure on page 7 gives you the exact linkage adjustment. You need a 5/16-inch Allen wrench and a 9/16-inch wrench. No guesswork. Set the valve so the air spring maintains the correct ride height with the truck at kerb weight. Then check it again after you load the trailer.

Component Replacement: What the Manual Expects You to Do

Section 8 runs from page 9 through page 29. It covers main support member replacement, spring seats, torque rod bushings, frame hanger slipper pads, air springs, shock absorbers, and both old and new height control valves. Each replacement procedure lists the required tools. For example, the torque rod bushing replacement on page 11 requires a press and specific alignment jig. The manual does not tell you to “use a big hammer.” It tells you the bushing interference fit and the pressing direction.

One thing I like: the manual includes a section on converting from outboard to inboard shock mounts (page 21). If you are retrofitting an older HAS single, you need the bracket kit and the correct torque on the shock absorber bolts. The spec is there. Do not get creative.

Torque Specs: The Back Page Chart Not a Guessing Game

The tightening torque specification chart is on the back page of this manual. It lists every bolt and nut you will touch: U-bolt nuts, torque rod nuts, frame hanger bolts, air spring mounting bolts, shock absorber bolts, and the transverse rod nut. For the HAS Tandem, the U-bolt nuts need to be torqued to 350-400 ft-lbs (with lubricated threads). That is not a suggestion. That is the factory number. If you are using a torque wrench that has not been calibrated in three years, go get it checked first.

The chart also tells you the thread lubricant to use – never dry-torque a U-bolt. This manual explains why. That level of detail is why you pay for OEM documentation.

Why Factory OEM Documentation Beats Aftermarket Reprints

Aftermarket manuals for Hendrickson suspensions often miss the air plumbing diagrams. This manual includes two full-page air plumbing diagrams (page 30 for the new height control valve, page 31 for the old). If you are chasing a suspension that won’t fill or leaks down, you need that diagram. I have seen guys replace air springs three times before they found a kinked 1/4-inch poly tube. The factory diagram shows the exact routing.

The original document is from Hendrickson’s technical publication group. Every value has been verified on test trucks. There is no room for interpretation. If you are relying on a scanned copy from some forum, you are going to get the wrong torque for the transverse rod. That can bend the bracket.

Is This Manual for You? (Audience Fit)

This manual is for anyone who owns or works on a heavy-duty truck with a Hendrickson HAS Tandem or HAS Single air suspension. If you are a fleet mechanic, a mobile truck repair guy, or an owner-operator who does your own PMs, you need it. Beginners can follow it because the steps are written in plain English and each tool is named. But do not expect the manual to hold your hand. It assumes you know how to lift a truck safely and use a torque wrench.

The typical use case: you are replacing a damaged air spring on a HAS Single 210. You open to page 17. The manual tells you to support the axle, remove the four cap screws, and lower the frame to release the air spring. Then it gives you the torque for the new cap screws – 115-130 ft-lbs. That is your reference. No guesswork.

Does this manual cover the HAS Single 120?

Yes. The manual title says HAS Single 120/150/190/210/230. All of those models are covered.

How many pages are in the manual?

33 pages. It is not a thick binder, but every page has a spec or a procedure you need. The torque chart alone is worth the access.

Can I find the ride height adjustment procedure without reading the whole thing?

Yes. Look at page 7 under Preventive Maintenance – Ride Height Control Valve Setting. The manual gives the linkage adjustment steps. Also check page 25 for the new height control valve assembly procedure. The sections are clearly labeled.

What if my HAS Tandem has an outboard shock setup and I want to convert to inboard?

The manual has a dedicated section on page 21 called “HAS Conversion from Outboard to Inboard Shock Mount.” It lists the required bracket kit and the torque values for the shock absorber bolts. Do not try this conversion without the factory procedure. The frame hanger bracket needs specific reinforcement.

If you are tired of chasing aftermarket data that does not match your truck, stop. Use the real thing. This 1999 Hendrickson service manual gives you every alignment angle, every torque number, and every air line route. Access the Factory Manual now from AutoRepairManuals. You will find it under the truck suspension category. While you are there, check out the Hendrickson AIRTEK & STEERTEK Service Manual 2010 for steer axles, or the Hendrickson PRIMAAX EX 2012 Service Manual for vocational applications. The Hendrickson SOFTEK STEERTEK AIRTEK 2011 Service Manual also covers multiple air-ride steerable suspensions. For general driveline knowledge, you can read about Manual Transmission basics on Wikipedia, or learn how to diagnose Manual Transmission problems. But for this suspension, stick to the Hendrickson factory file.
