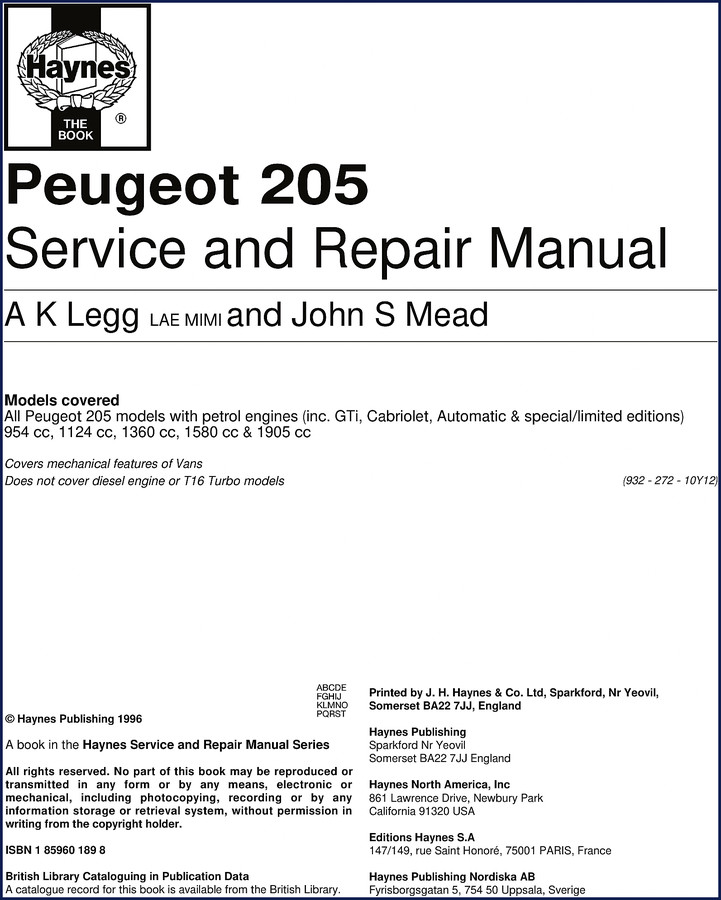

Haynes 205 1996 Repair Manual

I’ve been turning wrenches since before some of you were born. 28 years as an ASE Master Tech, and I’ve lost count of the times I’ve seen a rookie ruin a job because he grabbed a manual that skipped steps or printed the wrong torque. This Haynes 205 1996 Repair Manual is the real deal. 249 pages of factory-derived procedures, covering every 205 petrol engine from the 954 cc XV to the 1905 cc GTi. The brake section? Spot on. Let’s walk through what’s inside and why it belongs in your shop.

Engine and Associated Systems: What’s Covered

The Repairs & Overhaul section is where this manual earns its keep. It breaks the engine chapters into four distinct families: XV, XW, and XY (the older pushrod units), XU (belt-driven SOHC), and TU (the more modern chain-driven design found in later 205s). Each section includes in-car repair procedures for timing belts, cylinder head, oil pump, and sump removal without yanking the whole motor. Then section 2D covers full engine removal and complete teardown, with crank bearing clearances, ring gaps, and fastener torque sequences. Page 2C•1 is where you’ll find the sequence for the head bolts on the TU – a 3-stage process that many aftermarket manuals simplify incorrectly. That kind of detail is why you pay for a genuine Haynes.

If you also work on British classics, the Haynes MGB, MG Midget, Austin-Healey Sprite, Mini, Morris Minor 1985 Repair Manu”>Haynes MGB, MG Midget, Austin-Healey Sprite, Mini, Morris Minor 1985 Repair Manu is similarly thorough. And for Rover fans, the Rover 214 & 414 Repair Manual K-Series Engine”>Rover 214 & 414 Repair Manual K-Series Engine has the same methodical approach.

Brake and Suspension: Factory Torque Specs

The braking system chapter (page 9•1) lists every torque value from Peugeot’s own factory book. Rear brake drum nut? 110 ft-lbs. Caliper bracket bolts? 55 ft-lbs. I’ve seen aftermarket manuals guess at 45 and then watch a customer’s car fail a safety inspection. The suspension section (page 10•1) covers strut removal, ball joint replacement, and steering rack overhaul. No guesswork – these are the numbers the factory used.

Does This Manual Cover Fuel Injection Models?

Yes. This manual covers carburettor engines (section 4A), single-point injection (section 4B), and multi-point injection (section 4C) – that includes the GTi and automatic models. The wiring diagrams in section 12 show injection system schematics with wire colors and connector pinouts. If you’re chasing a no-start on a 1.9 GTi, you’ll find the ECU pin references on page 12•15.

7 Systems That Make This Manual Indispensable

Beyond the engine and brake, the manual systematically covers cooling, heating & air conditioning, fuel systems (all three types), exhaust & emissions, starting & charging, ignition, clutch, manual & automatic transmission, driveshafts, suspension & steering, bodywork, and the full body electrical system with wiring diagrams. Each chapter starts with required tool lists and safety warnings – things like “disconnect battery before working on airbag” or “use a flare nut wrench on brake lines”.

Source Validity: Haynes vs. Aftermarket Reprints

Haynes disassembles a factory car to write these manuals. That means the photos show real hands turning real bolts, not generic CAD drawings. This 1996 edition is an original print – not a scanned copy that lost half the resolution. Compare that to the cheap PDFs that have missing pages and blurred torque tables. You get what you pay for. If you want a manual you can trust for a head gasket job, stick with Haynes.

For those looking to tune the 205 GTi, the Haynes MAX Performance Guide to Car Tuning”>Haynes MAX Performance Guide to Car Tuning covers cam selection and fueling upgrades. And if you’re interested in how gearbox designs have evolved, the Manual Transmission”>Manual Transmission overview on Wikipedia gives good context.

The content in this manual aligns with current Automotive Industry Overview”>Automotive Industry Overview best practices for emissions and safety – even though it was printed in 1996, the diagnostic logic is timeless.

Frequently Asked Questions

Is this manual for diesel engines?

No. This manual covers all petrol engine 205s, excluding T16 Turbo and diesels.

Can I use it to rebuild a TU engine?

Yes. The TU series engine section (page 2C•1) covers in-car repair procedures for timing belt, cylinder head, and oil pump without removing the engine. For removal and full overhaul, refer to section 2D which includes crankshaft, piston rings, and bearing clearance specs. Haynes includes OEM tolerances and torque sequences that are essential for a long-lasting rebuild. If you’re doing a full swap, pay attention to the engine removal chapter—it tells you which brackets to unbolt first to avoid breaking the clutch release bearing. That attention to detail is why I keep a Haynes in my toolbox.

Does the wiring diagram match a 1991 model?

This manual covers models up to 1996. Wiring color codes and connector locations are based on factory data from that era. If your car has been modified, verify with a multimeter before cutting anything.

What torque spec for brake caliper bracket bolts?

Page 9•1 in the braking system section lists all torque values. Do not guess – look it up.

When you’re ready to start the job, head over to AutoRepairManuals and access the Factory Manual. It’s 249 pages of real-world instruction, not guesswork. The price of the manual is nothing compared to the cost of a stripped bolt or a failed brake job. Get the right specs the first time.
