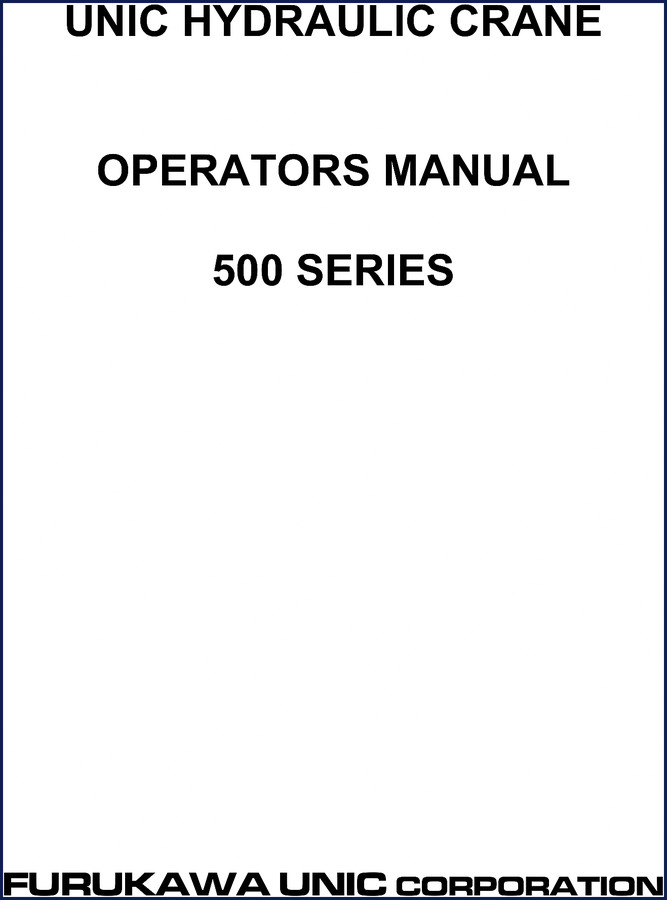

Furukawa Unic UR500 1990 Operators Manual – OEM Crane Specs on the Workbench

If you’ve ever had a crane boom drop because you guessed the load angle or used the wrong hydraulic oil, you know the cost of missing factory data. The Furukawa Unic UR500 1990 Operators Manual is the one piece of paper – 70 pages – that keeps your 500-series crane from becoming a liability. I’ve torqued enough head bolts to know that the Japanese factory engineers at Furukawa Unic didn’t waste ink. Every spec in this book is there for a reason.

Safety Rules: Page 1-1 Sets the Standard

The manual opens with safety rules on page 1-1. Not a generic list – Furukawa Unic wrote these for the UR500 specifically. They cover what to check before starting, who can operate the unit, and how to handle emergencies. If you’re running this crane in a yard or on a site, you need those rules memorized, not glanced at. Unlike a Manual Transmission in a pickup, a crane hydraulic system has no room for guesswork.

Page 2-16: The Maximum Load and Boom Angle Chart

Every operator should have the load chart from page 2-16 burned into memory. This is not a generic capacity chart you find on the internet. It gives you the correct load for each boom angle and outrigger setup. The 1990 edition includes the UR503 through UR506 variants. If you overload, the crane will tell you by bending. Use the factory chart. The same principle applies to a Manual Transmission rebuild – but crane safety is a higher bar.

3 Maintenance Schedules You Can’t Skip

Walk-around inspection on page 3-2. Check hydraulic oil level on page 3-3. Wire rope inspection on page 3-4. These aren’t suggestions. The manual lays out daily, weekly, and annual intervals. Annual tasks include changing hydraulic oil (page 3-8) and checking swing bearing mounting bolts (page 3-11). Skip the annual oil change and you’ll be replacing pumps. For deeper rebuild procedures, check the Furukawa UR Series Hydraulic Crane Workshop Manual.

What Grease and Oil Does the Manual Recommend?

Section 4 lists recommended grease, gear oil, and hydraulic oil by brand and viscosity. Aftermarket manuals often substitute generic specs, but Furukawa Unic tested these specific lubricants for the UR500. Using the wrong hydraulic oil can cause valve sticking or pump cavitation. The manual also includes the hydraulic circuit diagram on page 4-3 – critical for troubleshooting leaks. If you need the manual for the URW295C1UR model, see Furukawa Unic URW295C1UR Operators Manual – Factory Specs.

Why the Factory 1990 Edition Matters

This is an original 1990 Furukawa Unic Operators Manual, not a reprint. Copyrighted by Furukawa Unic Corporation. The illustrations and specifications match the production run. Aftermarket versions often miss details like the placard locations (page 2-36) or the correct torque for swing bearing bolts. You want the OEM data. The URA343, URA344, URA345 variants have their own manual: Furukawa Unic URA343 URA344 URA345 Operators Manual – OEM Specs.

Call it insurance. You wouldn’t run a crane without a load chart. Don’t run one without the factory manual. Access the Factory Manual now and keep your UR500 safe and operational.

Frequently Asked Questions

Does this manual cover all UR500 variants?

Yes. The manual includes specifications for UR503, UR504, UR505, and UR506 models.

Is this a PDF or physical book?

This is a digital PDF format of the original 1990 operators manual. You get the full 70 pages, including all 11 sections from safety through hydraulic circuit diagrams. The quality matches the factory print, not a scanned copy with missing pages. You can print specific sections for the shop or keep it on a tablet near the crane. No water spots, no grease stains, and you can search for keywords like “wire rope” instantly.

What if I need torque specs for the swing bearing bolts?

The manual does not list torque specs explicitly in the operators manual. That information is in the workshop manual. For the UR500, use the linked workshop manual.

Can I use this manual for other Furukawa Unic models?

Only the 500 series. Other models like the A343 series have their own manuals.
