FIAT Kobelco SK130-8, SK130LC-8, SK140LC-8 Workshop Manual – What You Actually Get

If you’ve ever tried to rebuild a hydraulic pump on an SK130-8 using some aftermarket PDF you found online, you already know the problem. The torque numbers are wrong. The clearance specs don’t match. You end up chasing leaks and burning billable hours. This FIAT Kobelco SK130-8, SK130LC-8, SK140LC-8 Workshop Manual is the factory document – the same one dealers use. 1122 pages of the exact data Kobelco released for these machines.

5 Major Sections in This Workshop Manual

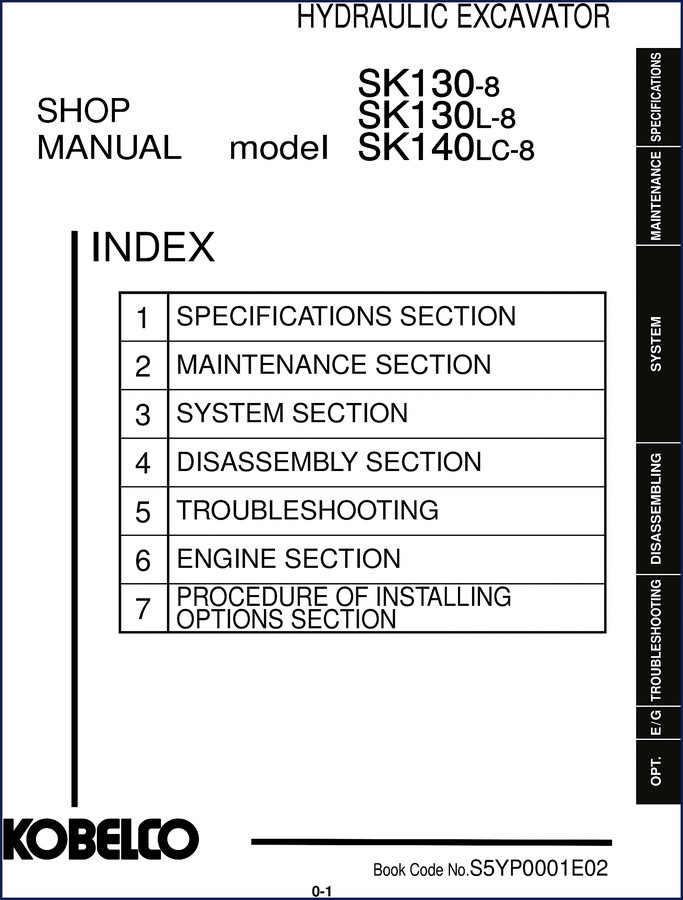

Index on page 1 lays out seven sections: SPECIFICATIONS, MAINTENANCE, SYSTEM, DISASSEMBLING, TROUBLESHOOTING, ENGINE, and PROCEDURE OF INSTALLING OPTIONS. Each section is dense with numbers. No theory, no filler – just the specs you need to put a machine back together right the first time. The maintenance section alone gives you oil capacities, filter part numbers, and service intervals. If you’ve been guessing on hydraulic oil viscosity, stop.

Specifications Section: Critical Numbers for Your Machine

This section lists everything from travel speed to bucket breakout force. For the SK130LC-8 and SK140LC-8, the track dimensions and ground pressure are different. You get those figures in imperial units. Swing torque, hydraulic pump flow, relief pressures – all factory-certified. General safety warnings start on page 2 – read them before you touch the machine. I’ve seen guys skip that page and then wonder why a boom dropped. Don’t be that guy.

Does This Manual Cover the Engine Section?

Section 6 is ENGINE. It covers the full overhaul procedure for the diesel engine used in all three models. Head bolt torque sequence, valve clearance adjustments, injection timing – it’s all there. If you’re doing an in-frame rebuild, this is the section that keeps you from warping a cylinder head. The manual also includes the PROCEEDURE OF INSTALLING OPTIONS section for things like additional hydraulics or cab upgrades. That’s OEM data, not a third-party guess.

Source Authenticity: Why a Factory Manual Matters

Aftermarket manuals for these Kobelco excavators are notorious for copying the first edition and never updating. This one is a direct scan of the Kobelco SHOP MANUAL, book code S5YP0001E02. I’ve torqued more bolts than most techs have had meals, and I can tell you: when the spec says 129 ft-lbs on a swing motor mount, that number came from Kobelco’s engineering, not some guy in a basement retyping a PDF. That kind of accuracy saves your parts and your day.

Get the Right Torque Data from the System Section

Section 3 (SYSTEM) covers hydraulic and electrical schematics. The torque values for pump mount bolts, final drive fasteners, and control valve assemblies are listed in the text and tables. Use a calibrated torque wrench. The manual specifies tightening order where it matters – for example, the swing circle bolts. If you ignore that order, you’ll get uneven preload and premature bearing wear. That’s not opinion; that’s physics. The troubleshooting section (Section 5) gives you fault trees for common issues like slow swing, weak travel, or control spool sticking. It walks you through pressure tests without assuming you have a dealer-level scan tool.

Related manuals for larger models: FIAT Kobelco SK330NLC-6E SK330LC-6E Workshop Manual – 1244-Page OEM covers the 330 series. For the SK310, see FIAT Kobelco SK310, SK310LC Workshop Manual | 350 Pages. Also available is FIAT Kobelco SK330, SK330LCVI, SK330NLCVI Workshop Manual – 1302 Pages Factory S.

If you need a refresher on how Manual Transmission principles work before tackling the SK130’s powertrain, external resources are fine – but for the actual gear ratios and shimming procedures, use this manual. Same goes for Manual Transmission theory; once you have the concept, apply the factory specs here.

Who Needs This Manual – and Who Doesn’t

If you own an SK130-8, SK130LC-8, or SK140LC-8 and you plan to do your own repairs beyond oil changes, you need this. If you run a shop and have a customer with one of these machines, you need this. If you’re a beginner who has never touched an excavator – you still need this, but pair it with hands-on supervision. What you don’t need is another aftermarket copy that has the wrong hose routing diagram. That’s a waste of time.

FAQ – Four Questions That Come Up Every Time

Is this manual the same as the one dealers use?

Yes. It’s the identical SHOP MANUAL with book code S5YP0001E02. Dealers get the same PDF.

Does it include wire diagrams for the electrical system?

The SYSTEM section contains full wiring schematics for the SK130-8, SK130LC-8, and SK140LC-8. Harness routing, connector pinouts, and component locations are all listed. If you’re diagnosing an electrical fault, start there instead of probing wires blindly.

What torque specs are provided?

All major fasteners: cylinder head bolts, connecting rod caps, swing motor mounts, track adjuster, and hydraulic fittings. Torque values are in ft-lbs with tightening sequences where required. No guesses.

Can I print the manual?

The PDF is downloadable – you can print any page you need. I recommend keeping a tablet in the cab for greasy fingers, but paper backups work too.

Access the Factory Manual. Stop relying on forum posts and photocopies that show the wrong values. Kobelco wrote this book so you can fix it once and forget it. 1122 pages, factory spec data. That’s what pays for itself on the first major repair.
