FIAT Kobelco LK650-II 1992 Parts Catalog

If you have ever ordered a seal kit for an LK650-II and got the wrong size because you guessed the serial number, you know the pain. A 1992 FIAT Kobelco LK650-II Parts Catalog is the only document that maps the machine’s serial breaks to each part. Without it, you are fishing. I have seen guys bolt on a final drive carrier that didn’t match the chassis because they used a third-party parts list. That costs you a Saturday and a tow bill. This catalog ends that.

Serial Number Breakdown (Page 4)

Page 4 of this FIAT Kobelco LK650-II 1992 Parts Catalog shows exactly where to find the chassis number and manufacturing serial number. The manual tells you the chassis number is stamped on the rear chassis; the manufacturing serial number is on a plate. It lists the range RE02201 to RE02999 for model LK600A, but the LK650-II uses the same designation logic. If you order parts without checking the serial number against the table on page 4, you are asking for returns. That is how you waste a week waiting for the right bearing.

How to Use the Parts List (Page 5)

Page 5 gives the ordering rules. Pay attention to the unit quantity column. When a quantity is shown as 1M or 2M, you are buying by the meter, not the piece. The manual gives an example: Qty 1M, REMARK L=1/700 means you get one piece 2 meters long, but you actually need 1400 mm. If you do not read that note, you will order a yard of hose when you need half that. Also there is the abbreviation “ABR.” which means the quantity can vary depending on how the machine is configured. This is factory-level detail, not a parts counter cheat sheet.

Parts Coverage and Document Scope

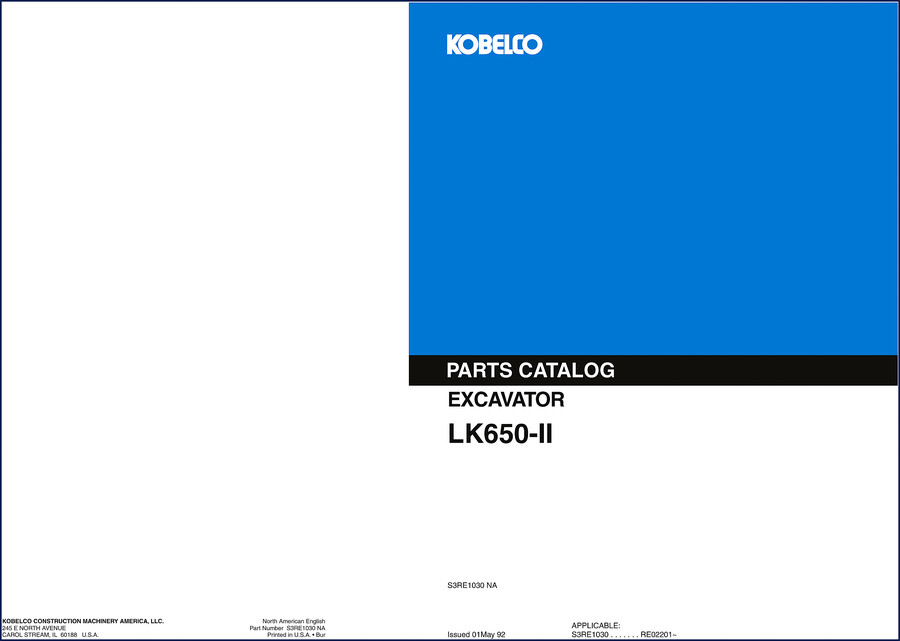

This catalog covers the LK650-II excavator – not the loader variant, not the older LK600. It includes the bucket type number, part numbers for the hydraulic system, undercarriage, engine group, cab, and electrical. Every section is keyed to the manufacturing serial number range. You get 459 pages of exploded diagrams and part callouts. The document was issued 01 May 1992, first edition, part number SJRE1030 NA. It is printed by Kobelco Construction Machinery America, LLC, Carol Stream, IL. That means the part numbers match what the dealer parts system still uses, as long as you account for supersession.

Who Needs This Manual

Two kinds of people: 1) A shop that sees a LK650-II more than once every six months. You need the serial break data to order seals, cylinders, and undercarriage parts without pulling the machine apart twice. 2) An owner who wants to buy used parts and cross-reference them before you scrounge the salvage yard. I have watched guys buy a whole swing gearbox only to find the spline count is different because the serial number was three hundred units off. This catalog stops that. Beginners should start here before they even pull a wrench. If you do not know the difference between a RE02201 and a RE02999 chassis, you are not ready to rebuild the control valve.

Source Authenticity: OEM vs Aftermarket

This is an original 1992 factory print, scanned from the Kobelco bindery. Aftermarket parts catalogs often re-number items or consolidate groups because they do not have the rights to the actual drawings. The result? You order part X from an aftermarket book, it does not fit, and you blame the machine. With this catalog, you have the exact OEM part number, the exact quantity, and the exact serial range. The notice on page 3 states that Kobelco reserves the right to change specs without obligation, so you need the version that matches the issue date of your machine. This is the first edition, 01 May 92. It is the right one for LK650-II machines built from RE32001 onward (the applicable serial numbers listed on page 1). Other years or models like the FIAT Kobelco ED150, ED150-IE 2013 Parts Catalog OEM or FIAT Kobelco ED150, ED150-2 2009 Parts Catalog OEM Manual will have different parts. And if you work on Kobelco excavators, the Kobelco K914 Hydraulic Excavator Parts Catalog is a different animal entirely. Do not mix them.

3 Reasons to Choose OEM Documentation

• Serial number accuracy: You get the exact break point (RE02201 to RE02999 for this series) so you order the right shaft seal the first time.
• Factory-original diagrams: The exploded views match the actual machine layout, not a generic illustration.
• Legitimate part numbers: These numbers are what the dealer inventory system expects. No cross-referencing errors.

FAQ

Does this catalog include torque specs?

No. This is a parts catalog, not a service manual. Torque values are in the service repair manual. This book gives part numbers and quantities only.

How do I know if my LK650-II falls in the serial range covered?

Look at the page 1 and page 2: the applicable machines start at RE32001 for the SJRE1030 NA document. But note the chassis serial for LK650-II is listed as RE02201–RE02999 on page 4. That is because the manufacturing serial and chassis serial are different. You need to match your chassis stamp (not the plate) to the range in the catalog. If you are outside that range, you need a later edition.

Can I use this to locate a hydraulic pump part for a LK650-II built in 1994?

If the serial number RE02201–RE02999 covers 1992 production, a 1994 machine likely falls out of range. Check your chassis number first. The 1992 edition only covers those serials. For later builds, look for a later revision.

What is the difference between this and a generic aftermarket parts list?

The aftermarket list often leaves out the serial break information, groups incompatible parts together, or substitutes an improvised part number that your dealer will not recognize. This catalog gives the original 459 pages of factory data. For the same reason you would not use a generic gasket to seal a high-pressure line, do not use a generic parts list for a machine that needs exact match. Stick with the OEM document.

If you maintain LK650-II machines, you need the correct part numbers from the source. The FIAT Kobelco LK650-II 1992 Parts Catalog with 459 pages will sit on the bench next to the serial plate. Ordering parts without it is guessing. Save yourself the phone calls to the dealer parts line: Access the Factory Manual from AutoRepairManuals and get the right numbers today.
