FIAT Kobelco K935 2005 Parts Catalog

If you own a FIAT Kobelco K935 2005 Parts Catalog, you already know the frustration of ordering a part that doesn’t fit because the aftermarket database listed the wrong suffix. I’ve been there – a $300 hydraulic pump that turned out to be from a different serial number range. That mistake ate half a day and cost more than this whole catalog. This is the factory book. 522 pages, printed by Kobelco Construction Machinery America in 2005. Every part number, every exploded view, every serial number break is direct from the assembly line. You don’t guess – you look up the machine serial, find the correct item number, and order the right piece the first time.

FIAT Kobelco K935 Parts Catalog: What to Expect

This document is a parts catalog, not a service manual. That means you get the full breakdown of every assembly on the K935 hydraulic excavator – engine, hydraulics, undercarriage, cab, electrical, the works. Each section starts with an exploded drawing, then lists each piece with its part number, quantity, notes, and superseded replacements. The OCR excerpt shows the typical Japanese-English format: item numbers with sub-assembly codes (1-1, 1-1A). You’ll find the same structure throughout the 200+ pages. If you need to know what o-ring goes between the swing motor and the reduction gear, it’s in there. If you need the bolt part number for the track adjuster, it’s in there.

Why Factory Parts Catalogs Beat Aftermarket Data

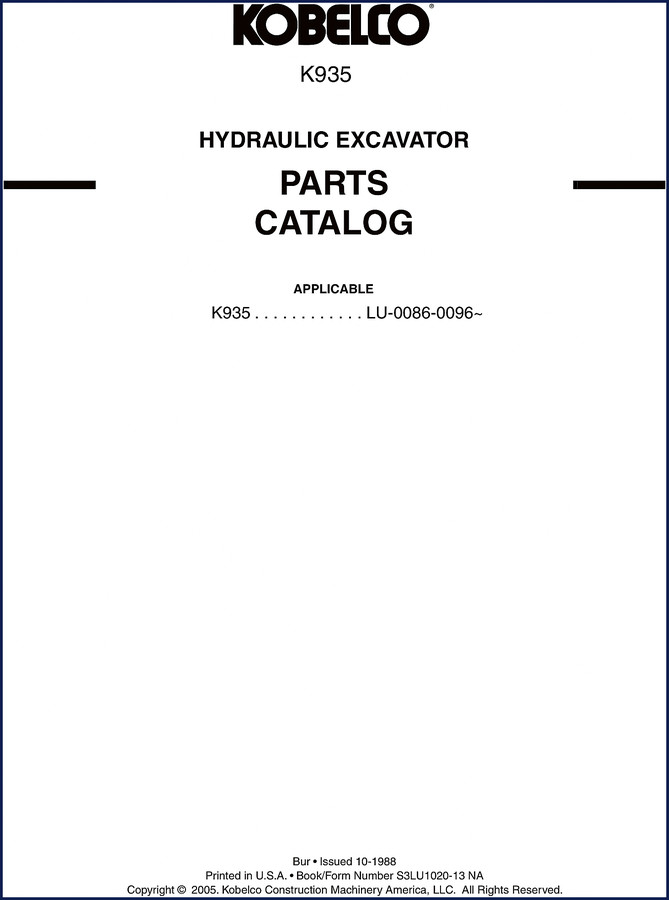

I’ve seen third-party parts websites list a part for a K935 that actually belongs to a K935-2. The difference is a mounting bracket shift of 15 mm – enough to make your new hydraulic line rub against the frame. Factory catalogs like this one include the exact model year and serial number break. Look at the catalog cover: “K935……… LU-0086-0096~” – that’s the serial number range this book covers. Aftermarket data usually ignores that. If you order from a generic database, you might get a part that’s been superseded twice. This manual gives you the current part number and any supersession chain. That’s worth the price of entry alone.

Order Parts with Serial Number – Every Time

Page 3 of this catalog has a space for machine serial number and engine serial number. The note says (in Japanese and English) to write them down. That’s not decoration – that’s how you avoid ordering the wrong final drive. When you call a dealer, they’ll ask for the serial. If you don’t have it, they’ll guess. With this catalog in hand, you look up your machine’s serial range in the index, find the correct assembly group, and pull the part number. No phone tag, no returns. The book also includes instructions on how to read the item codes: 1-1 means sub-assembly of item 1, 1-1A means a further sub-group. That’s your roadmap to the exact piece.

Who Needs a 2005 K935 Parts Catalog?

Anyone who owns a K935 backhoe loader from that era. If you’re a DIY owner running a farm or a small excavation company, you’ll use this catalog every time you need a filter bracket, a seal kit, or a wiring harness clip. Professional mechanics in small shops who don’t have dealer access – this is your parts bible. And if you’re a salvage yard or rebuild shop, this catalog is how you correctly identify and list inventory. The Internal Combustion Engine section alone covers all engine-related parts (though for repair procedures you need a service manual).

Other related manuals you might need: KOBELCO K909A/K910/K912/K935 1983 Service Manual for actual repair steps. Also the KOBELCO K935 K935M-1 Parts Catalog for later model variants. And if you have a newer machine, the FIAT Kobelco ED150, ED150-IE 2013 Parts Catalog OEM covers that series.

One more thing – don’t confuse this with a reprint. I’ve seen shops waste money on scanned copies with missing pages. This is the original OEM file, no missing pages, no blurry lines. You get the same data the dealer’s parts counter uses. For a broader look at the industry, check the Automotive Industry Overview.

FAQ

Can I use this catalog to repair my K935 engine?

No. This is a parts catalog, not a service manual. It shows part numbers, not torque specs or removal procedures.

How do I find the correct part number for my specific machine?

Locate your machine serial number (stamped on the frame near the cab). Then find the corresponding serial range on the catalog cover page. The index groups parts by assembly – for example, the hydraulic pump section lists different pump part numbers depending on serial number break. Always verify with the exploded view to confirm the shape and orientation match your machine. If you’re still unsure, call the dealer with both the serial and the part number from this book. That removes all ambiguity.

Access the Factory Manual now and stop betting on aftermarket guesses. The FIAT Kobelco K935 2005 Parts Catalog is the difference between a one-time order and a week of return shipping.
