Description

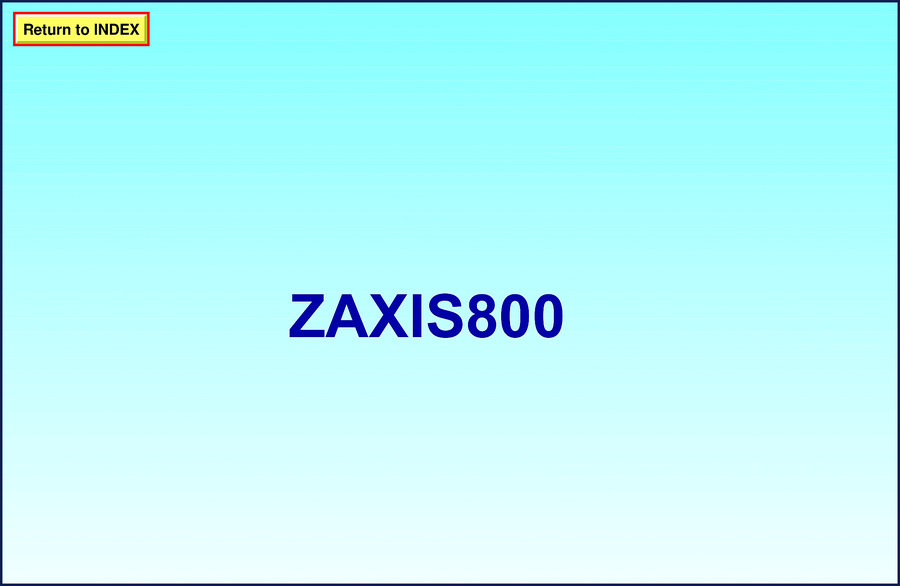

Fiat-hitachi ZX800 Technical Manual

If you are working on a Fiat-hitachi ZX800 excavator and you don’t have the factory technical manual, you are operating blind. I have seen techs try to identify components using generic parts diagrams – they end up ordering the wrong solenoid or misrouting a hydraulic line. This manual is 13 pages of OEM component layout drawings. Not a reprint. Not a scan of a scan. This is the original Hitachi document that shows you exactly where every major assembly lives: the Engine, pump device, swing device, travel device, control valve, and the full Electrical component layout with relays, sensors, switches, motors, and solenoid valves.

No guesswork needed.

Fiat-hitachi ZX800 Technical Manual: Factory Component Diagrams

The manual opens with a two-page main component layout. You get a clear drawing of the entire machine: center joint, swing device, fuel tank, control valve, engine, pump device, hydraulic oil tank, solenoid valve unit, signal control valve, and travel device. Each component is labeled. If you need to know where the swing relief valve is located, you flip to the swing device section (page 4). The control valve section (page 5) shows both the left block (5-spool) and right block (4-spool) with every relief valve, shuttle valve, and make-up valve identified. The holding valves for boom and arm are called out. This is the kind of detail that keeps you from pulling the wrong spool.

What’s Inside the 13 Pages?

The table of contents lists these sections: MAIN COMPONENT LAYOUT, ENGINE, PUMP DEVICE, SWING DEVICE, TRAVEL DEVICE, CONTROL VALVE, ELECTRICAL COMPONENT LAYOUT (with sub-sections for RELAY, SENSOR, SWITCH, MOTOR, SOLENOID VALVE.etc), and OPTIONAL (COUNTERWEIGHT, LUBRICATOR). Each section is a page or two of factory drawings. For example, the electrical layout (page 3) shows the location of the air cleaner restriction switch, pressure sensors (4-spool, 5-spool, swing, travel), washer motor, solenoid valve unit, pump displacement angle sensor, delivery pressure sensors, N sensor, oil pressure switch, oil level sensor, overheat switches, coolant temperature switch, fusible link, safety relay, battery relay, glow plug, horn monitor, hydraulic oil temperature sensor, EC motor/EC sensor, outside temperature sensor, fuel sensor, and battery. That is a lot of location data packed into one page.

Engine and Valve Layouts

The engine section shows the block and mounts. The valve section is the money page – the control valve drawing with every spool block, relief valve, and shuttle valve clearly positioned. If you are troubleshooting a weak swing or a boom drift, this page tells you which valve to check without pulling the wrong one.

Electrical System: Sensors, Switches, Motors

The electrical component layout spans relays, sensors, switches, motors, and solenoid valves. The manual gives you reference groups – for example, the pressure sensors are grouped together; the pump device group includes pump displacement angle sensor, delivery pressure sensor, and control proportional solenoid valve. The around-battery group shows fusible link, safety relay, battery relay, and glow plug. This is not a wiring diagram manual, but it tells you where each electrical component is physically located, which is half the battle when you are tracing a circuit. Pair this with the separate electrical schematic, and you have a complete picture.

3 Reasons to Trust OEM Documentation Over Aftermarket

First, OEM drawings are not generic – they match the exact machine configuration. Aftermarket manuals often show a similar model with different sensor locations. Second, the part numbers and references in this manual come from Hitachi’s own engineering, not from a third-party reverse engineer. Third, the layout accuracy saves you time. You can find the travel device right away without guessing. If you have worked with aftermarket manuals that put the solenoid valve unit on the wrong side, you know what I mean.

For related equipment, check the Fiat-Hitachi EX135 Technical Manual Function Description if you work on the smaller EX135. The hydraulic control system on these machines shares design elements with the ZX800; the US Patent 5,911,506: Control System for Hydraulic Pump describes the pump control logic. For air filtration components, the Donaldson Vehicle Card for Hitachi Equipment gives cross-reference data.

This manual is not about repair procedures – it is about knowing where everything is before you wrench. For general knowledge about transmissions, see Manual Transmission; for a broader view of automotive versus construction standards, see Automotive Industry Overview.

FAQ

Does the manual include torque specs?

No torque values are listed in this 13-page component layout manual.

Is this the full service manual?

This is a technical manual focusing on component identification and layout, not a full service/repair manual with step-by-step procedures. It shows where each part is located – engine, pump, swing, travel, control valve, electrical sensors, switches, motors, solenoid valves – and provides the OEM’s own scale drawings. For actual repair steps, you would need the separate service manual that covers disassembly and reassembly. This manual is essential for understanding the machine’s configuration before you start disassembly; without it, you risk misidentifying a component and wasting time ordering wrong parts. I have seen techs pull the wrong solenoid because they used an aftermarket diagram that swapped the travel and swing sensors. This manual prevents that.

If you need to identify a part or trace a hydraulic line on a Fiat-hitachi ZX800, this factory technical manual will save you the headache of flipping through vague aftermarket charts. Access the Factory Manual from AutoRepairManuals and get the OEM data on your screen or printed.
