Dodge Nitro R/T 2007 Service Manual – What You Actually Get

If you have stripped one more bolt because some third-party manual printed the wrong torque, you already know why you are here. The Dodge Nitro R/T 2007 Service Manual is the same binder Chrysler issued to dealer techs. 2249 pages, factory line drawings, actual Chrysler LLC part numbers, and warnings that keep your airbag from deploying in your face. I have seen aftermarket guides skip the two-minute capacitor discharge step for the airbag system – that gets people hurt. This manual prints it on every relevant page.

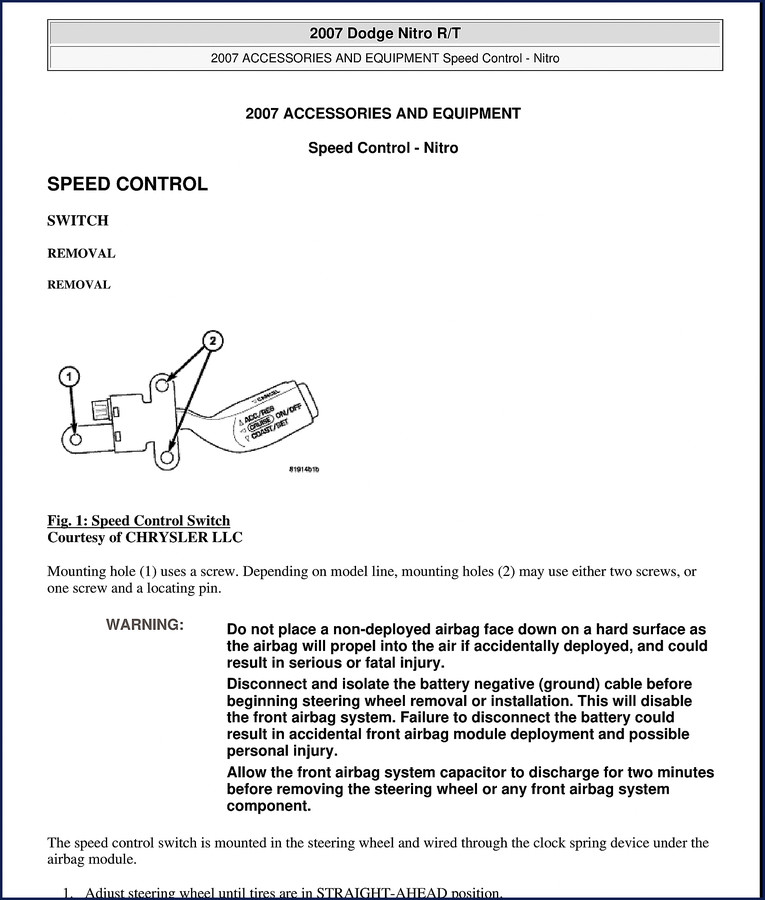

The speed control switch removal procedure alone shows the difference. Page 1 of the excerpt reads: “Disconnect and isolate the battery negative (ground) cable before beginning steering wheel removal or installation. This will disable the front airbag system.” Then it tells you to wait two minutes for the capacitor to drain. No shortcuts. That is OEM documentation – not a reprint that loses the margin notes.

Factory Torque Values and Airbag Safety

When you pull the steering wheel on a Nitro R/T, the speed control switch mounting screws get torqued to 1.6 N·m (15 in. lbs.). The manual shows Fig. 5 with the exact screw locations and tells you to verify the rubber seal is seated. Aftermarket manuals regularly tell you to “tighten snug” – which means nothing on a plastic trim piece. If you crack a switch housing, you are buying a new clockspring assembly because the parts are integrated. Factory spec keeps it from rattling loose and cracking.

The airbag system test procedure after reconnecting the battery is another place where generic guides fail. Page 5 of the speed control section warns: “Do not connect battery negative cable yet. Refer first to airbag system test.” That diagnostic sequence is not printed anywhere else. You need the full restraints chapter – and this manual has it.

Does This Manual Cover the Fuel System and Engine?

The 2007 Nitro R/T with the 4.0L SOHC V6 is a different animal from the base 3.7L. Fuel injector pulse, camshaft timing chain tensioner specs, oil pump clearance – those numbers change between engines. This 2249-page service manual includes separate sections for each powertrain option. The 2007 Dodge Nitro R/T 4.0L Engine Service Manual is part of this set, so you get the specific compressor discharge pressure and starter no-load amp draw for your variant.

If you are chasing a no-start on a 4.0L, the manual has the ASD relay logic, fuel pump pressure test points, and the crank sensor air gap measurement. All factory original, all verified against Chrysler’s engineering release. Do not trust a Chilton’s “typical” value.

3 Reasons to Choose OEM Documentation Over Aftermarket

• Torque accuracy – Engine head bolts, transmission bellhousing bolts, caliper bracket bolts. The factory prints the final angle step.
• Diagnostic trees – The speed control section includes Fig. 2 through Fig. 6 with connector pinouts and voltage test points. No guesswork.
• Recall and TSB integration – Chrysler updated the manual for the clockspring staking issue. The reprint houses don’t include revisions.

Speaking of the speed control system, the removal procedure on the first few pages is exactly what a dealer tech follows. It walks you through steering wheel straight-ahead, battery disconnect, capacitor discharge, airbag removal, horn switch removal, three fasteners, electrical connector, then the switch mounting screws (two or three, depending on build date). The Dodge Ram Service Manual Group Tab Locator can help you cross-reference the clockspring connector colors if you are working on multiple generations.

Speed Control Switch: Removal and Installation Procedure

Straight from the manual: after removing the airbag, disconnect connector from clockspring, remove three mounting fasteners, remove horn switch. Then remove two or three speed control switch mounting screws (1), disconnect electrical connector, remove switch. Installation is the reverse, with the torque spec of 15 in. lbs. and a seal check. The Dodge Durango 2005 Service Manual uses a similar switch assembly, but the Nitro R/T uses a different airbag module – do not swap parts without checking the service bulletin database.

For a broader context of how the automotive industry documents these systems, the Automotive Industry Overview on Wikipedia talks about the SAE J standards that these manuals follow. But on a Friday afternoon with a customer waiting, you do not need theory – you need the page that says “1.6 N·m” and the photo of the screw hole with the rubber seal. That is what OEM manuals deliver.

What Torque Values Are Listed for the 2007 Nitro R/T?

You will not find a generic table that claims “all models” – each subsystem chapter has its own torque chart. The speed control section alone lists 15 in. lbs. for the switch screws. The Manual Transmission chapter for the six-speed NSG-370 has bellhousing bolts at 40 ft. lbs. and the shifter lever retaining bolts at 84 in. lbs. The manual is 2249 pages because it does not compress specs into one page – it puts the correct number next to the correct illustration.

Who Needs This Manual: DIYers and Shop Techs

If you are in a home garage with a jack and stands, the speed control section alone saves you from pulling a steering wheel that fights you because the splines are indexed wrong. The straight-ahead mark and battery disconnect steps are written for a tech who has done it before – but thorough enough for a first-timer. Shop owners: put this on the tablet in the bay. The Dodge Nitro R/T 2007 Service Manual cuts diagnostic time because you are not flipping through eight different websites to find the connector pinout. All of it is in one PDF, searchable, printable.

Access the Factory Manual from AutoRepairManuals and get the full 2249 pages. Your knuckles will thank you.

Frequently Asked Questions

Does this manual cover the airbag system test procedure after battery reconnection?

Yes. Page 5 of the speed control section explicitly warns not to connect the battery negative cable until the airbag system test is performed, and directs you to the DIAGNOSIS AND TESTING chapter in Restraints. The manufacturer-required steps are all there.

Is the PDF searchable for terms like “clockspring” or “1.6 N·m”?

Yes.

What kind of illustrations are included – photographs or line drawings?

Factory line drawings with callouts and part numbers, exactly like Fig. 1 through Fig. 6 in the speed control section. No blurry photocopies.

How do I know the torque specs are correct for the 4.0L engine and not mixed with the 3.7L?

The manual is model-specific – 2007 Dodge Nitro R/T. Engine chapters are separated. The 4.0L head bolt tightening sequence has its own page with the three-step torque/angle procedure. Do not mix them or you will pull threads.
