Daimlerchrysler Liberty, Liberty/Cherokee Parts Catalog – 609 Pages of OEM Specs

Description

If you’re ordering parts for a Liberty or Liberty/Cherokee blind, you’re wasting time and money. Aftermarket catalogs mix up part numbers between the 2.4L gas, 2.8L diesel, and 3.7L V6. You get the wrong water pump, wrong brake line, wrong axle shaft. Then you wait another week for the return. This Daimlerchrysler **Liberty, Liberty/Cherokee Parts Catalog** kills that guesswork. It’s 609 pages of factory part diagrams, exploded views, and VIN-specific part callouts. Not a reprint of a reprint – this is the original OEM PDF from Daimlerchrysler.

VIN Plate Decoding: The First Step

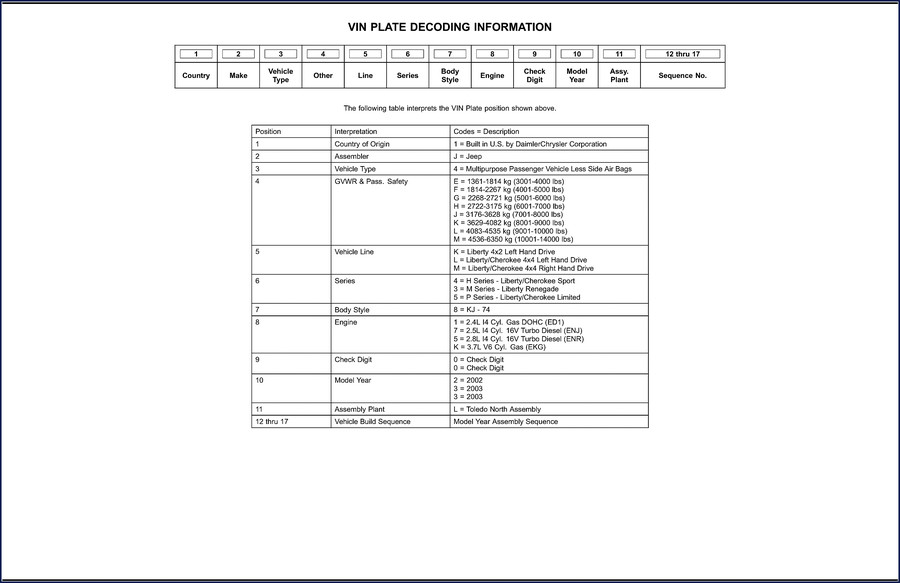

Before you order a single bolt, you need to know what your truck left the factory with. The manual opens with a full VIN decoding table (page 1). Position 5 tells you vehicle line: K = Liberty 4×2 LHD, L = Liberty/Cherokee 4×4 LHD, M = Liberty/Cherokee 4×4 RHD. Position 8 decodes engine: 1 = 2.4L I4 gas, 5 = 2.8L I4 diesel, K = 3.7L V6. If you don’t check these codes, you’re ordering parts for the wrong build. I’ve seen guys slap a 3.7L radiator into a 2.8L diesel and wonder why the hoses don’t line up. This catalog stops that.

Group 1 – Mopar Accessories: What You Need

Dealers charge double for Mopar accessories, and aftermarket knockoffs never fit right. This catalog lists every factory accessory with part numbers – from bike carriers (Fig. 1-210 roof fork mount) to fog light kits (Fig. 1-610), alarm systems (EVS II Base and Plus, Fig. 1-910/915), and even the dog guard kit (Fig. 1-810). If you’re adding a trailer tow, the wiring kits (4-way Fig. 1-260, 7-way Fig. 1-265) are right there. You get the exact harness you need instead of splicing into the wrong wire.

Front Suspension & Drive (Group 2): Part Numbers and Diagrams

Front suspension on these Liberty/Cherokees eats struts and sway bar bushings. Group 2 covers Fig. 2-110 front suspension and strut, Fig. 2-120 front sway bar, plus axle shafts (Fig. 2-210), axle housing (Fig. 2-310), and differential (Fig. 2-610). The skid plate for the front axle is Fig. 2-810. Each figure shows the exploded assembly with every washer and bolt called out. No guesswork about which grade of bolt goes where.

Rear Axle and Brake Systems (Groups 3 & 5): OEM Specs Matter

Corporate 8.25 rear axle? Group 3 shows the complete rear axle assembly (Fig. 3-110) and differential housing (Fig. 3-210). Group 5 covers service brakes – front brakes Fig. 5-110, rear disc brakes Fig. 5-210, power brake booster Fig. 5-310, master cylinder Fig. 5-410. Brake lines are split by LHD and RHD (Fig. 5-510 and 5-520). If you’ve ever wasted a day trying to match a pre-bent brake line from a generic parts store, you’ll appreciate having the factory line routing and part number.

Cooling System (Group 7): Engine-Specific Components

This catalog separates cooling parts by engine. Fig. 7-110 is for the 2.4L gas, Fig. 7-120 for the 3.7L V6, Fig. 7-130 for the 2.5/2.8L diesel. Water pump and related parts are likewise split (Fig. 7-210, 7-220, 7-230). Coolant tank is Fig. 7-305 for 2.4L, Fig. 7-310 for [DATA NEEDED]. Ordering a radiator? You verify engine code first, then pull the figure. That’s it. No returns.

Why OEM Parts Catalogs Beat Aftermarket

I’ve been burned by aftermarket parts catalogs that list one part number for all Liberty years. A 2004 Liberty 4×4 with the 2.8L diesel uses different brake lines than a 2002 Liberty 4×2 2.4L. The OEM catalog shows each figure by model year and engine. The VIN decoding on page 1 locks down your exact build. If you’re serious about wrenching on these trucks, you need factory documentation. For related documents, check the Daimlerchrysler 300 Magnum Charger SRT-8 2008 Parts Catalog or the DaimlerChrysler Grand Cherokee 2001 WJ Parts Catalog and DaimlerChrysler Jeep Commander 2007 Parts Catalog. For broader context on automotive part sourcing, see the Automotive Industry Overview and Automotive Battery top-level resources.

Does this catalog include torque specs for assembly?

No. This is a parts catalog, not a service manual. It lists part numbers, illustrations, and VIN decoding. For torque specs you need the factory service manual.

How do I find the right part number for my Liberty/Cherokee?

First, decode your VIN using the table on page 1 – especially position 8 for engine and position 5 for vehicle line. Then go to the appropriate group (e.g., Group 7 for cooling). Each figure lists the part numbers for that specific engine and drivetrain combination. If your VIN says engine code 7 (2.5L diesel) but you need a water pump, you go to Fig. 7-230 (2.5/2.8L diesel). The part number will be right there. Cross-check with the illustration to confirm shape. That is the fastest way to avoid mistakes. Aftermarket catalogs often lump all Liberty engines together, which is why you end up with a 2.4L water pump on a diesel engine. This catalog prevents that by keeping figures engine-specific. If you are restoring a 2004 Liberty 4×4 Limited with the 3.7L V6, you’ll use Fig. 7-120 for radiator parts and Fig. 7-220 for water pump. Always verify your engine code before ordering.
