DaimlerChrysler Crossfire Technical Manual

If you are pulling a Crossfire into your bay and reach for a manual, you want the document that the engineers who built the car signed off on. This DaimlerChrysler Crossfire Technical Manual is exactly that – 3307 pages of factory-authored procedures. Not a reprint, not a scan of a scan. This is the same binder that dealership techs used when these cars were new. I have spent enough time fighting aftermarket wiring diagrams that leave out a ground location or list a torque value that strips threads. That stops here.

Before you touch a wrench, flip to the INTRODUCTION section (page 1). Inside you will find the VEHICLE SAFETY CERT LABEL description and the VIN code breakdown – critical for identifying which transmission or engine variant you are working on. The manual covers both the 6-speed manual and the 5-speed automatic. Without that VIN decoding, you could order the wrong seal kit or misdiagnose a driveline noise. The manual spells out the CROSSFIRE VIN CODE BREAKDOWN table right on page 3. Use it.

7 Systems Covered in This Technical Manual

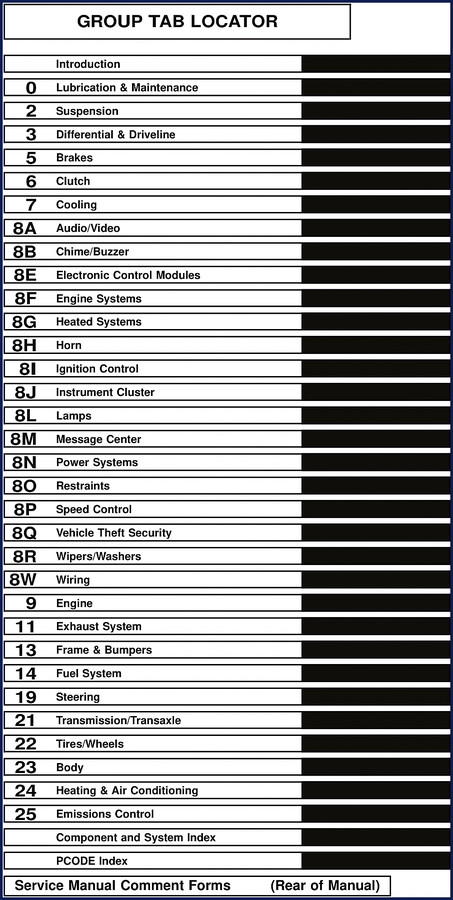

The GROUP TAB LOCATOR lists every major system from Introduction through Emissions Control. Each group has its own tab: Lubrication & Maintenance (Group 0), Suspension (Group 2), Brakes (Group 5), Engine Systems (Group 8F), Wiring (Group 8W), and a full Engine group (Group 9). The manual goes deep into each. For suspension work, the FRONT SUSPENSION TORQUE CHART gives you the numbers for every fastener – control arm bolts, shock mounts, stabilizer bar links. I have seen cars come in with clunks because a shop guessed at the torque on the lower ball joint. Use the spec in this manual and it stays quiet.

Need the fluid capacities? The SPECIFICATIONS – FLUID CAPACITIES section under Lubrication & Maintenance tells you exact amounts for automatic transmission fluid, engine coolant, and differential lubricant. It even lists the API service grade and SAE viscosity requirements. That is the difference between a transmission that shifts right and one that burns up in 20,000 miles.

Torque Specs and Fluid Capacities

Torque references are covered in the INTRODUCTION under TORQUE REFERENCES DESCRIPTION. That section explains how to interpret the fasteners and the thread repair procedures. Then every component group has its own torque chart. For front suspension, the TORQUE CHART – FRONT SUSPENSION lists values for the knuckle, hub bearing, lower control arm, upper control arm, shock, spring, and stabilizer bar. I do not have to tell you what happens when you over-torque a strut rod nut on an aluminum knuckle – it cracks. The factory numbers are here. You will also find the wheel alignment specs: caster, camber, toe-in, and toe-out on turns. All in degrees and inches.

Fluid capacities are listed in quarts and pints. For example, the automatic transmission fluid type is specified as ATF+4, with the exact fill procedure. The coolant section covers HOAT coolant selection and the correct mix ratio. These are the same specs used on the assembly line. Aftermarket manuals often round up or guess. This one does not.

Does This Manual Cover the Fuel System and Engine Control?

Yes. Group 14 covers the Fuel System, Group 8F covers Engine Systems, and Group 9 covers the Engine itself. The manual includes diagnostic procedures for the MR-PLD injection system. If you are dealing with a no-start or a misfire code, the wiring diagrams in Group 8W show every pin and connector. For related engine control reference, check the DaimlerChrysler Engine Control with MR-PLD manual if you want even deeper ECU-level logic. But for most repair work, this Crossfire manual has everything – from throttle body removal to timing chain inspection.

Wiring Diagrams and Component Index

Group 8W is the wiring section. It covers all electrical systems: audio/video (8A), chime/buzzer (8B), electronic control modules (8E), heated systems (8G), horn (8H), ignition control (8I), instrument cluster (8J), lamps (8L), message center (8M), power systems (8N), restraints (8O), speed control (8P), vehicle theft security (8Q), wipers/washers (8R). That is a lot of electrical content. The manual ends with a Component and System Index and a PCODE Index so you can find any diagnostic trouble code fast. The manual also includes Service Manual Comment Forms at the rear – original factory documents that let you report errors. That is how thorough this is.

Source Authenticity: OEM vs. Aftermarket

Aftermarket manuals for the Crossfire are copied from these factory pages but often skip the fastener usage and threaded hole repair notes. The OEM manual includes fasteners identification – it describes how to identify metric bolts by head markings and tells you which ones are reusable. The THREADED HOLE REPAIR section provides the correct thread insert specs if you strip a hole. Aftermarket versions leave that out because it saves space. That is the kind of detail that prevents a comeback. If you want to understand the automotive industry standards behind these documents, read the Automotive Industry Overview for context on why OEM data is legal-grade. For information on manual transmissions, the Manual Transmission article covers general principles, but the specific gear ratios and shift linkage adjustments are in this manual.

If you need VIN decoding for other years, the DaimlerChrysler Crossfire 2008 VIN Decoding Information is a separate resource. And if you work on commercial vehicles, the Daimlerchrysler Commercial Vehicle 2004 Technical Manual – Factory Brake Design covers air brake systems – entirely different animal but same factory rigor.

FAQ – Common Questions About This Technical Manual

Is this the official factory manual used by Chrysler dealers?

Yes. This is the OEM Technical Manual published by DaimlerChrysler. It contains the same procedures and specifications used in dealership service departments. Aftermarket manuals are reprints of this data but often omit sections like fastener identification and thread repair.

Does the manual include torque specs for the cylinder head?

Torque references are in the INTRODUCTION section, and cylinder head bolt torque values are listed in the Engine group (Group 9). Page numbers vary by printing, but the data is there.

How many pages does this manual have?

3307 pages.

Can I print this manual or copy it to a tablet?

Access the PDF and use it on any device. You can print specific pages for the workbench. The file is a direct scan of the factory binder – no watermarks, no missing content.

This is the manual that belongs on your bench if you service any Crossfire from 2004 through 2008. Do not trust aftermarket copies that compress data to save file size. You need the full 3307 pages – the VIN breakdown, the torque charts, the wiring diagrams, the fluid specs. Access the Factory Manual now and keep it open every time you touch this car.
