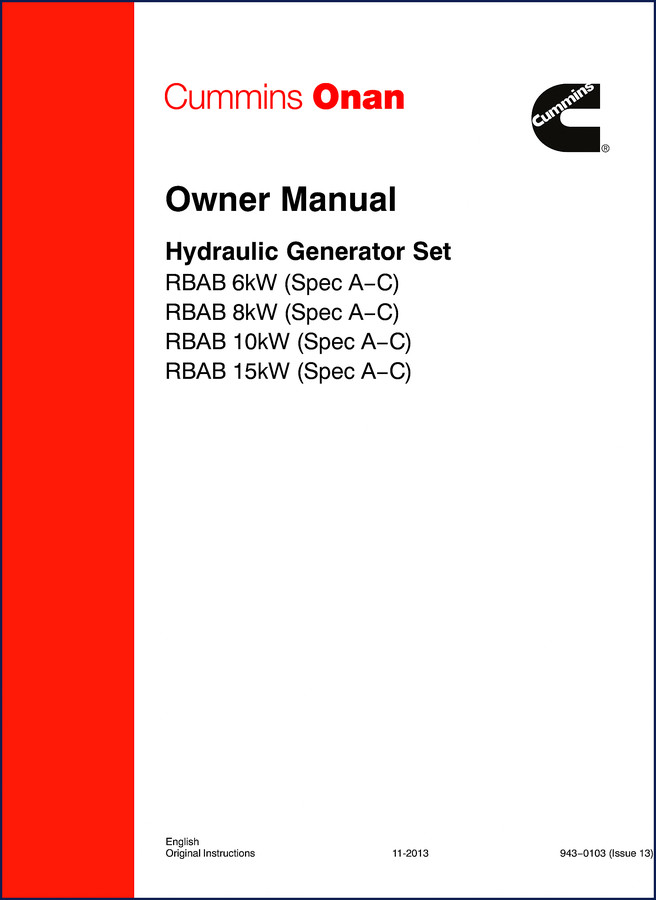

Cummins Onan RBAB 6kW, RBAB 8kW, RBAB 10kW, RBAB 15kW 2013 Operators Manual

Forty-five pages. That’s what separates a repair that holds up from a generator that comes back on a hook. If you’re messing with a Cummins Onan RBAB 6kW, RBAB 8kW, RBAB 10kW, or RBAB 15kW hydraulic generator set, you need the factory document—not some aftermarket rewrite that leaves out torque values or skips the warnings. This is the genuine 2013 Operators Manual, 45 pages of procedures and schematics that Cummins Onan printed for the field.

Saw a guy last week try to wire a Display Module using a generic pinout from a forum. Fried the control board. That’s a $600 mistake because he didn’t have the factory wiring diagram. Page 4-3 of this manual shows the exact Wiring Connections—the harness colors, the pin assignments, the battery cable gauge. No guessing.

Safety Precautions: Why Page ii Matters

First page after the cover? California Proposition 65 warning and a note about marine use. That’s not lawyer fluff. The manual says flat-out: do not use this genset on a boat. Coast Guard regulations, fire risk, electrocution, carbon monoxide poisoning. If you skip the safety section, you’re trusting luck over engineering. I’ve seen what happens when a genset catches fire because somebody bypassed the breaker. Read the precautions. I mean it.

Installation: Hydraulic Connections and Wiring

Section 4 covers Genset placement, Oil Reservoir setup, Display Module mounting, and the On/Off Switch. The hydraulic pump and motor connections are detailed on pages 4-4 through 4-6. You’ll find the hydraulic line routing, fitting torque (not in the excerpt, but the manual lists it), and the startup procedure on page 4-7. The wiring schematics live in Section 9—page 9-1 through 9-? (depending on spec). If you’re plumbing a hydraulic system, this section keeps you from crimping a line wrong and starving the pump.

Troubleshooting No AC Output

Section 6 is where the manual earns its keep. Seven pages of symptom-based diagnostics. No AC output with engine running? Page 6-2. Display module shows voltage but no power? Page 6-3. Frequency too high or unstable? Page 6-5. Voltage too low? Page 6-6. Each flowchart gives you the test points and the acceptable readings in imperial units (volts, hertz). No generic “check the alternator” crap. It tells you which wire to probe and what reading you should see.

Maintenance: Oil Level and Filter Checks

Section 3 lists the routine service intervals. Oil level check (page 3-1), oil filter replacement, breather filter cleaning, generator bearing inspection. The manual doesn’t assume you know the fill procedure—it gives the sequence. Overfilling the hydraulic reservoir leads to aeration and pump noise. That noisy pump issue in Section 6 traces right back to maintenance gaps. Keep this manual on the bench next to the oil can.

45 Pages of Factory Specs You Can Trust

Section 7 has the specification tables for all four models: RBAB 6kW, 8kW, 10kW, and 15kW. Voltage regulation, frequency tolerance, hydraulic flow rates, weight, dimensions. Outline drawings in Section 8 give you the mounting footprint and clearance dimensions. If you’re retrofitting a genset into a truck body or a mobile workshop, those drawings save you from cutting holes in the wrong place.

Aftermarket manuals often skip the wiring schematics or redraw them with errors. Section 9 in this factory document is a direct scan of the Cummins Onan engineer’s drawing. The trace lines are clear, the component labels match the part numbers. Use it to trace a dead control board or a missing ground. Wiring is not the place for guesswork—one shorted wire in a hydraulic genset can fry the controller and leave you in the dark.

Related Manuals

Need parts breakdowns? Check the Cummins Onan P216G-OL20 Parts Manual 2010. For other equipment, see the Hitachi ZAXIS225US-3 2007 Operators Manual | OEM Factory Specs and the LIBRA SK40 Pala Compatta Operator Manual. If you’re new to hydraulic power transfer, read up on Manual Transmission fundamentals—the principles are similar. Also handy: Manual Transmission basics for understanding gear ratios in hydraulic motors.

Does this manual cover the RBAB 12kW model?

No. Covers only RBAB 6kW, 8kW, 10kW, and 15kW (Spec A-C).

What is the difference between the Operators Manual and a Service Manual?

The Operators Manual focuses on installation, operation, maintenance, and basic troubleshooting. It includes wiring schematics and hydraulic diagrams, but does not contain internal engine rebuild specs or detailed component disassembly procedures. For major overhauls, you need the separate Service Manual. This 45-page document gets you through daily operation and common faults.

Stop wasting time on generic PDFs that omit the hydraulic connection details or skip the wiring schematics. Get the genuine factory document and keep your generator set running on the job site. Access the Factory Manual.
