Cfmoto CF500, CF500-A 2006 Service Manual

If you have ever trusted an aftermarket PDF for torque specs on a Cfmoto CF500 and watched a head bolt stretch or a coolant leak appear a week later, you already know the price of guessing. I have been torquing bolts in San Antonio for 28 years, and I have seen more stripped threads from generic numbers than from worn tools. This Cfmoto CF500, CF500-A 2006 Service Manual is the OEM factory print – 254 pages, first edition August 2006, from Chunfeng Holding Group. No third-party rewrite. No conversion errors. The conversion table on page 3 alone (kPa, kgf-cm, N·m) will save you a headache if you work in imperial units. This is the document the dealer tech uses.

Engine Overhaul Information and Torque Specs

Chapter 13 (Engine Overhaul Information) and Chapter 1 (Overhaul Information) give you the tightening torque table and lubricant/sealing agent data on page 1-10 and 1-11. The manual does not let you guess which thread locker to use on the flywheel bolt. It lists the product by name. The main data table on page 1-5 shows displacements, compression ratios, and valve clearances. For the Engine removal procedure, Chapter 15 walks you through inspection and installation in a logical sequence – not the “remove everything at once” approach that leaves you with leftover hardware. You get the factory sequence for the cylinder head bolts, which matters more than most DIYers realize. Skip that sequence and you warp the deck.

What Does the Cooling System Section Cover?

Chapter 4 is dedicated entirely to Cooling. It covers coolant type, capacity, bleeding procedure, and pump inspection. The manual warns you outright: coolant is poisonous – see page 4 for the safety caution. That page also covers battery acid and exhaust hazards. I do not care how many cooling systems you have flushed; if you do not know the factory bleed valve location and the specified torque for the water pump bolts, you are wasting shop time. Chapter 17 (Cooling and Lubrication System) overlaps with the lubrication circuit – oil pump clearances, pressure specs, and the oil filter bypass valve data. That is the difference between a rebuild that lasts and one that seizes at 50 miles.

Check the Wiring Diagram Before You Touch It

Chapter 11 gives you the Circuit Diagram and Wiring Diagram for both CF500 and CF500-A. The battery, charging system, ignition system, and lighting are covered in Chapters 8, 9, and 10. If you are troubleshooting an electrical fault, you need the factory color codes and connector pinouts – aftermarket diagrams often invert ground and power. I have fixed three ATVs this year where someone fried the ECU because they followed a generic schematic. This manual’s Wiring section is 11. If you want to understand how a Manual Transmission interacts with the starter circuit, the diagrams show you the logic path. For deeper learning on transmission fundamentals, the Manual Transmission design principles apply here too.

Suspension and Brake: Factory Specs You Need

Chapters 6 and 7 cover Front Wheel, Front Brake, Suspension, Steering and Rear Wheel, Rear Brake, Suspension. The Brake section includes master cylinder bore specs, caliper piston diameter, and pad thickness limits. The Suspension section gives you the front and rear shock absorber gas pressure and the steering knuckle torque values. If you replace a tie rod without the factory tightening angle, the alignment will wander. Chapter 6 also includes the front brake hose routing – one wrong bend and you get a locked caliper. I have seen it. This manual tells you exactly where each clamp goes.

19 Chapters – Not a Single Missing Section

The TOC lists 19 chapters plus a conversion table and index. Every chapter is present in the PDF, from Overhaul Information (Chapter 1) through Troubleshooting (Chapter 19). The Carburetor chapter (16) includes float level and jet specifications. The Ignition System (Chapter 9) gives pickup coil resistance and timing marks. The Troubleshooting chapters (12 and 19) are not generic symptom lists – they follow the factory diagnostic tree. You start at Step 1 and work through resistances and pressures until you find the fault. That is how you fix a no-start on a CF500 without replacing parts at random.

Who Needs This Manual – And Why

If you own a 2006 Cfmoto CF500 or CF500-A and you do your own maintenance, this is the only document you should open. If you are a shop that sees these ATVs, having the factory manual on a tablet next to the lift cuts diagnostic time in half. Beginners will appreciate the caution statements – they are specific, not lawyer fluff. Professionals will appreciate that the torque table covers every critical fastener, from the cylinder head to the swingarm pivot. The Suspension alignment data in Chapter 6 keeps you from chasing a pull after a rebuild.

OEM vs Aftermarket – The Difference Is Data Integrity

This manual is the original 2006 print from Chunfeng. The OCR excerpt shows the exact safety language and conversion table. Aftermarket manuals often round torque values to “convenient” numbers – they forget that 18 N·m is not the same as 13 ft-lb when the bolt diameter is 8mm. Page 3 has the exact conversion factors. The wiring diagram in Chapter 11 uses the factory connector ID system. I have seen aftermarket manuals that swap the ignition switch wire colors because they copied from a different model. That mistake costs hours. This manual is the one the dealer uses. Period.

FAQ

Does this manual cover the CF500-A model specifically?

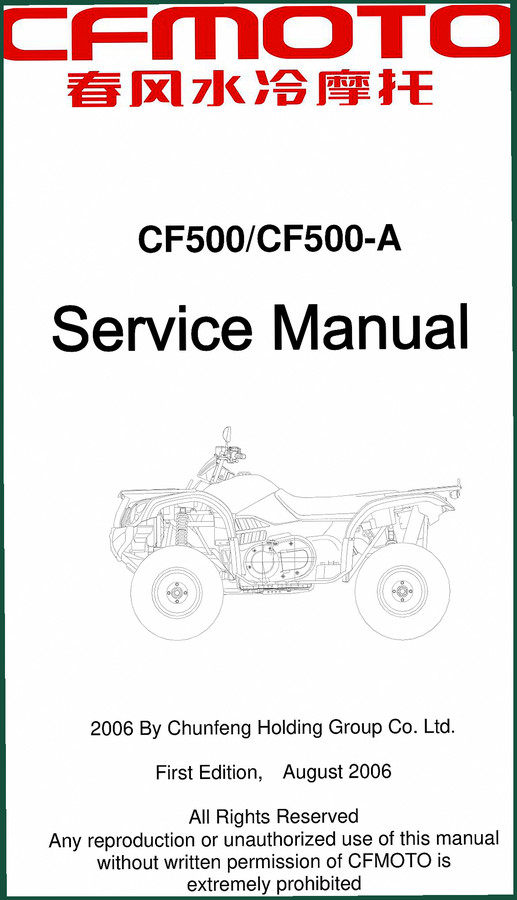

Yes. The cover states CF500/CF500-A, and the foreword mentions both models. The wiring diagrams include separate schematics for each where they differ.

What year is this manual for?

2006, first edition August 2006.

How many pages and what sections are included?

254 pages. Sections include: Overhaul Information, Vehicle Body and Muffler, Checks & Adjustment, Cooling System, Engine/Drivetrain removal, Front and Rear Brake/Suspension, Battery/Charging, Ignition, Lighting/Switches, Circuit/Wiring Diagrams, Troubleshooting, Engine Overhaul, Carburetor, Cooling and Lubrication System, Electrical System, and a second Troubleshooting chapter.

Is this a genuine OEM manual or a reprint?

It is the original OEM factory PDF from Chunfeng Holding Group. It contains the copyright notice and original page numbering.

Related Manuals that follow the same factory-documentation standard: White Outdoor LT-5 – 700 Series Rider Service Manual for lawn tractors, Maruti MB308 Service Manual Procedures and Repair – Section: Section 8A Wiring D for automotive electrical, and HUSKIE Hydraulic Hammers Service Manual for heavy equipment. If you are serious about fixing equipment right, use the OEM source.

Stop chasing ghost specs. Access the Factory Manual.
