Caterpillar 777B 2009 Technical Manual

If you’ve ever spent a Saturday afternoon cursing a hydraulic leak on a Caterpillar 777B 2009 Technical Manual will pull your head out of the frustration. That hose that blew while you were loading? The one that left a puddle of oil under the rear axle? I’ve been there. The factory manual for the 777B hose systems is what you need when aftermarket diagrams show the wrong coupling or skip the torque sequence entirely.

Hose Assembly Procedures: Reusable vs. Permanent Couplings

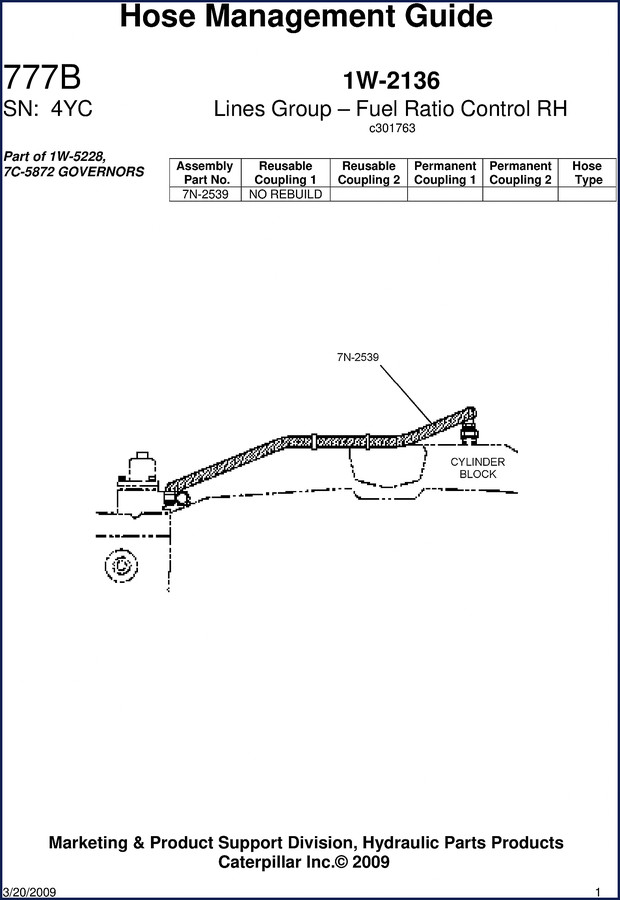

The document breaks down every assembly into two coupling types – reusable and permanent. Each row in the tables gives you the assembly part number, the coupling part numbers for both ends, and the hose type. Page 1 shows the 7N-2539 assembly for the fuel ratio control group with a note “NO REBUILD” on the reusable coupling. That’s the kind of warning you don’t find in a generic guide. If you try to reuse a coupling that’s marked no rebuild, you’re asking for a leak that takes down a haul road. The manual covers 14 distinct line groups including air conditioner, oil cooler, torque converter filter, and more.

19 Pages of Factory Hose Data

This is not a thick manual. 19 pages. But every page is packed with tables that tell you exactly which OEM coupling to order for each connection. No guesswork about whether a 6V-4657 fits a 146-8531 hose. The tables specify the coupling pair and the hose type – XT-3ES or 716 series. The 2009 publication date means this matches the production year for the 777B with serial number prefix 4YC. If you’re working on a later machine, check your SN against the range.

Does This Manual Cover the Entire 777B?

Let me be direct: this is not the full service manual. It’s the Hose Management Guide. You won’t find engine overhaul steps or transmission rebuild specs here. What you get is the exact routing and coupling information for every hydraulic and fuel hose on the truck. The table on page 3 lists the oil cooler line group with both lower and upper serial number breaks (1-531 and 532-Up). That’s the level of detail that keeps a 777B out of the shop. If you need torque converter removal procedures, you’ll want the main technical manual. But for hose replacement, this is the only source you should trust.

Verify Coupling Part Numbers Before Assembly

One mistake I see all the time: a tech grabs a coupling from the bin without cross-referencing the manual. The tables list two different permanent coupling columns – Permanent Coupling 1 and Permanent Coupling 2. Example on page 5: assembly 5T-4817 uses 9S-9727 and 8S-4055. That’s not the same as the 146-8533/146-8531 pair used on the torque converter filter group. The manual flags assemblies with “NO REBUILD” – the 5T-7899 assembly on page 5 is one of them. That means you replace the entire assembly, not rebuild it. If you skip checking that, you’re wasting time on a fitting that’ll fail.

Hydraulic System Safety: Why This Manual Matters

Hydraulic hose failures on a 777B can blow fluid at 3000 psi. That’s not a quick fix. The OEM manual is your safety insurance. It tells you the correct hose type – XT-3ES versus 716 – and whether to use reusable or permanent couplings. Reusable couplings let you swap the hose and keep the ends; permanent ones require a crimp tool. The tables also show the line group – fuel ratio control, air conditioner, oil cooler, torque converter. Each group has different pressure and temperature requirements. Using the wrong hose type can lead to a burst line. Access the factory manual to get this data straight from Caterpillar, not from a third-party reprint that might have lost a digit.

Related manuals you might need alongside this one: Caterpillar 3116, 3044C, 3114, 3408 Technical Manual | Piston Specs. Also check Caterpillar 30A1, 4KC1, 8SZ1, 2WB1, 2WN1 1999 Technical Manual and Caterpillar 30A1, 6NB1, 7DE1, 8KC1, 4KC1 1999 Technical Manual if your machine uses those engines. For general transmission knowledge, see Manual Transmission and Manual Transmission (Wikipedia links for background theory).

FAQ on the Caterpillar 777B Hose Manual

Can I use this manual for a 777D or 777F?

No. The manual is specific to the 777B with serial number 4YC. Different generations use different couplings and hose routings. Using it on a later model will give you wrong part numbers.

Does it include torque values for the hose fittings?

It lists part numbers, not torque specs. For coupling torque, refer to the Caterpillar service manual for the specific assembly group.

How many assemblies are covered?

Over a dozen line groups are shown in the tables, including fuel ratio control, air conditioner, oil cooler (two serial break sections), torque converter filter, and more. Each group lists multiple assemblies.

Is this a PDF or a physical book?

Digital access. 19-page PDF, exact scan of the 2009 factory printed guide. No reprint, no third-party edit. What you see is what Caterpillar released.

Stop wasting time on aftermarket diagrams that skip details. The factory Caterpillar manual for the 777B hose systems is right here. Get the coupling part numbers, hose types, and assembly instructions straight from the source. Access the Factory Manual.
