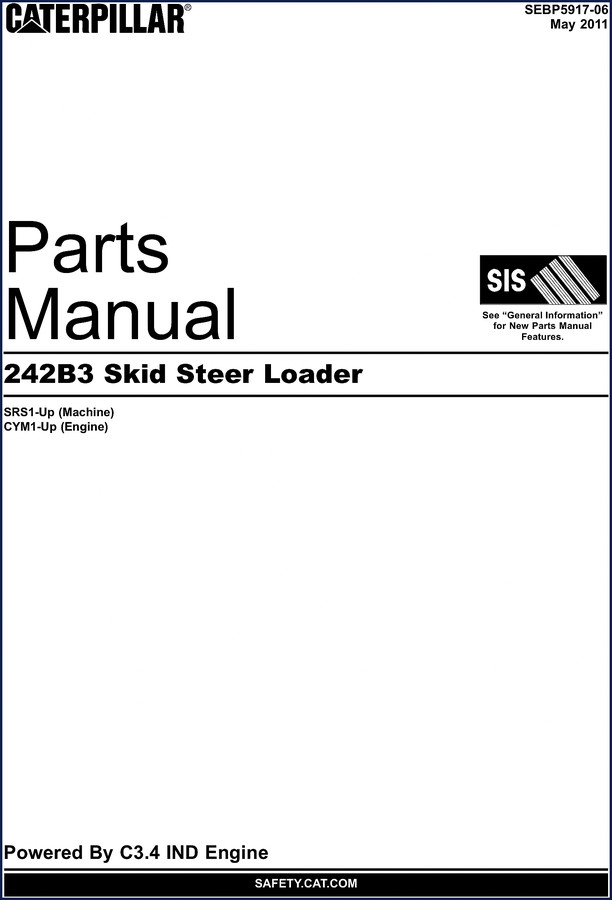

Caterpillar 242B3 2011 Parts Catalog – Stop Ordering the Wrong Parts

If you’re chasing parts for a Caterpillar 242B3 2011 Parts Catalog and you don’t have this book on your workbench, you’re burning time and money. I’ve seen too many guys call in a part number from a third‑party website, get the box, and find the bolt holes don’t line up. That’s a wasted trip. This is the factory catalog – 615 pages, no reprints, no guesswork. It’s what Caterpillar used on the line.

Machine Arrangement and Engine Arrangement Sections

The catalog breaks the machine down the same way the assembly line does. Start with MACHINE ARRANGEMENT (page 1) – chassis, common, control, conversion groups. Then ENGINE ARRANGEMENT (page 8) – primary engine, installation, and the full BASIC ENGINE breakdown. That’s where you’ll find the cylinder block group, cylinder head group, connecting rod group, piston group, and every bearing and seal. Page 11 starts the basic engine detail with ACCESSORY GP-ENGINE and runs all the way through V-BELT GP on page 36. Each group has its own exploded diagram and a table listing every part number, quantity, and description. You want the right oil pan gasket? Look under PAN GP-OIL, page 30. You won’t find a missing bolt.

Cooling System and Air Inlet Coverage

Overheating a 242B3 because a water pump pulley is the wrong diameter is a preventable headache. The catalog covers COOLING SYSTEM from page 42 – engine oil cooler, coolant drain, housing and regulator, water lines, water pump (page 47), radiator and hydraulic oil cooler group (page 49), and radiator support (page 50). AIR INLET AND EXHAUST SYSTEM starts on page 52: air cleaner group, air lines, exhaust manifold, inlet manifold, muffler groups, and turbocharger group (page 62). If you need the correct part number for the turbocharger gasket, it’s in that section. No guessing.

How This Parts Catalog Saves You Time on Ordering

Every part number in this catalog has been verified against the factory build. The index (page A11) cross‑references part numbers to figures. I keep a copy of Caterpillar C15 2006 Parts Catalog – Factory OEM 884 Pages next to this one for the bigger truck jobs. Same format, same reliability. If you’re working on track loaders, check Caterpillar Elevated Sprocket Tractors Parts Catalog – 971 Pages and Caterpillar Undercarriage Parts Catalog – 866 Pages OEM. For background on why using OEM documentation matters, read the Automotive Industry Overview and Automotive Industry Overview for industry standards.

Source Validity: Factory OEM vs Aftermarket

Aftermarket parts catalogs online are often scanned from a book that was photocopied from a copy of a copy. Numbers get smeared, lines get lost, and you end up with a seal that is one millimeter too thick. This is a true OEM print – straight from Caterpillar’s publication SEBP5917-06, May 2011. The GENERAL INFORMATION section on page A4 explains how to read the new manual features. REPAIR ALTERNATIVES on page A7 gives you the official Caterpillar policy on rework vs replace. SUPPLEMENTAL COOLANT ADDITIVES on page A8 tells you what to add and when – critical if you want to keep the C3.4 IND engine alive. MAINTENANCE PARTS on page A9 lists all the filters, belts, and fluids with their exact part numbers. You don’t get that in a third‑party compilation.

Who Needs This Manual?

Shop owners who want their mechanics to stop pulling the wrong part. DIY guys who are rebuilding a 242B3 in their home garage – the exploded views show you exactly how the assembly goes together, so you can spot missing washers before you bolt it up. Beginners: this catalog won’t teach you how to overhaul the engine, but it will ensure you order the right parts so the job goes together the first time. Pair it with a service manual for torque specs and procedures, and you have a complete system.

Frequently Asked Questions

Does this catalog include part numbers for the engine?

Yes. The ENGINE ARRANGEMENT section (starting page 8) covers the primary engine, installation, and every sub‑group from the cylinder block through the V‑belts. All part numbers are OEM Caterpillar numbers.

Can I use this to rebuild the engine?

This is a parts catalog, not a service manual. It gives you the part numbers and exploded views needed to order the parts. You’ll still need a service manual for torque specs, clearances, and assembly procedures.

Is this the same as a service manual?

No. A service manual explains how to repair and adjust components. A parts catalog tells you what part to order when it fails. The two complement each other.

How current is the 2011 edition?

The manual is dated May 2011. It covers machine serial number SRS1-Up and engine serial number CYM1-Up. For later production changes, check Caterpillar’s online service information system or a later revision. This edition is still the primary reference for the 242B3 through the end of its production run.

Access the Factory Manual now and stop wasting time on wrong numbers. Keep it in the toolbox, order from the table of contents, and you’ll have the right parts the first time.
