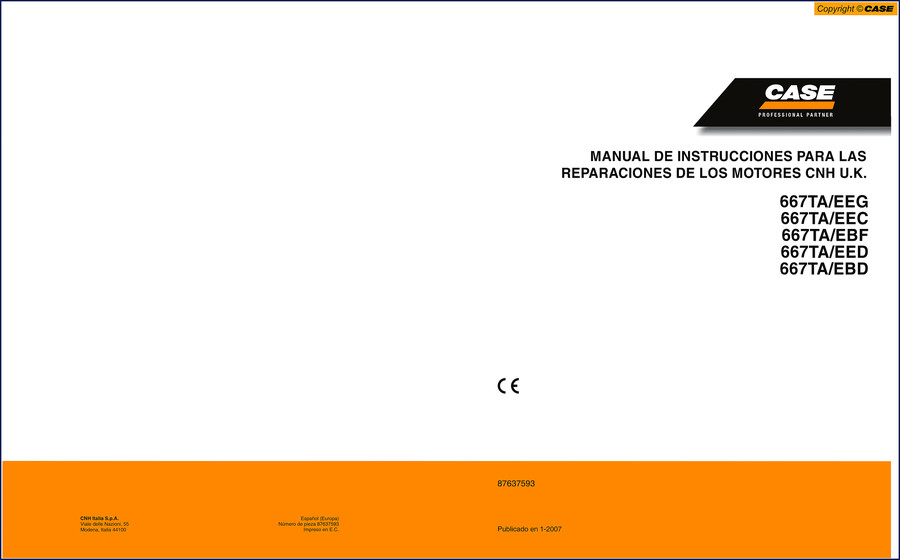

Case 667TA/EEG, 667TA/EEC, 667TA/EBF, 667TA/EED, 667TA/EBD 2007 Repair Manual – Factory OEM Specs

If you’re wrenching on a Case 667TA/EEG, 667TA/EEC, 667TA/EBF, 667TA/EED, or 667TA/EBD engine and you don’t have the factory manual open on the bench, you’re working blind. I’ve seen too many guys guess on head bolt torque and end up with a blown gasket or worse. This 2007 Case 667TA/EEG, 667TA/EEC, 667TA/EBF, 667TA/EED, 667TA/EBD 2007 Repair Manual is 143 pages of what CNH put together for their own techs. No aftermarket reprints, no third-party guesswork – just the real procedures from the people who built these engines. Whether you’re tearing down a 667TA/EED for a full overhaul or diagnosing a fuel issue on a 667TA/EBF, you need the sequence, the torque values, and the safety warnings that only the OEM print gives you.

A CNH technician wrote this manual for technicians. It’s split into four main sections: Safety (S), Technical (T), Excavator Repairs (W), and Engine Repairs (EW). Each page carries a unique identifier so you can bounce between sections without losing your place. The units? SI with imperial in parentheses – so you get MPa and psi, liters and quarts. No conversions to guess at.

Section S – Safety Warnings You Can’t Ignore

Every repair manual worth its salt has safety pages, but this one is specific to these five Case engine variants. The manual uses warning symbols for personal injury risk and component weight. Heed them. A 667TA/EEG cylinder head weighs enough to crush a hand if you’re not using the right lifting technique. Page 4 of the manual shows the exact symbol legend – pay attention before you start.

Section T – Technical Data and Diagnosis

In the T section you’ll find performance tests, troubleshooting charts, and the specifications that separate a running engine from a parts pile. Need charge pressure? Look here. Valve clearance? Same place. The manual also includes a conversion table for SI to imperial – page 5 gives you the factors for length, pressure, volume, power, and temperature. Keep it bookmarked.

Section W – Excavator Repair Instructions

If your Case is mounted on an excavator, the W section covers the machine-specific repair steps. This isn’t just an engine manual – it includes the installation instructions for the engine in the excavator chassis. Bolts, mounts, hydraulic lines – all procedure. Don’t skip this part even if you’re only replacing the water pump. The torque sequence for the mounting brackets is here.

Section EW – Engine Repair Procedures

The EW section is the heart of the manual for any rebuild. It covers disassembly, inspection, reassembly, and testing of the CNH UK-built engines. From the crankshaft pulley to the oil pan, every step is documented. The manual explicitly warns against reusing old gaskets and specifies the exact sealant types. You’ll find the torque specs for main bearing caps and connecting rods in this section – about page 73 if you’re looking for a quick reference. But read the sequence first.

Units of Measure – SI and Imperial Side by Side

SI units are primary, but imperial values appear in parentheses. For example, pressure is listed in MPa with psi in brackets. Temperature is in Celsius with Fahrenheit conversion formula. This is a UK original manual, so the primary units are metric, but the conversion table on page 5 makes it painless. I prefer working in imperial, and this manual doesn’t make you flip to an appendix – the numbers are right there.

Who Needs This Manual – And Why It’s Worth the Price

DIY owners keeping a 667TA/EEC on a tractor or a 667TA/EBD in a generator set. Shop technicians who bill by the job and can’t afford a stripped thread. Anyone who’s ever bought an aftermarket manual with misprinted torque values and said “never again.” This is direct from Case. 143 pages, 2007 publication date, no revisions missed. If you’re working on any of these five model codes, this is the only document you should trust.

Is this manual in English?

The manual is bilingual (Spanish/English). The technical data is language-independent.

What torque specs are listed for the cylinder head?

The manual contains the OEM torque values for all engine fasteners, including cylinder head bolts. These are in the EW section. You must follow the tightening sequence and angle specifications. The manual gives the values in both N·m and lb-ft. Do not guess – look up the specific values for your 667TA/EED or 667TA/EBD variant because they may differ. The table on page 73 of the technical section provides the complete list. Always clean threads and lubricate as specified. If you skip this step on a 667TA/EEG, you risk a gasket failure. The manual also includes the angle-of-turn method for some bolts. Reference the exact procedure for your engine code.

Related manuals you might also need: Case CX40B, CX50B 2004 Repair Manual – 780-Page Factory OEM, Case F4BE0484E, F4BE0684D, F4BE0684B 2003 Repair Manual – 196 Pages OEM, Case F4GE0484E, F4GE0684F, F4HE0684J 2003 Repair Manual – OEM Specs. For general transmission knowledge, see Manual Transmission and Manual Transmission.

Don’t waste time with copied PDFs. Get the real thing. Access the Factory Manual from AutoRepairManuals and keep it on your tablet or printed out. Your hands – and your Case engine – will thank you.
