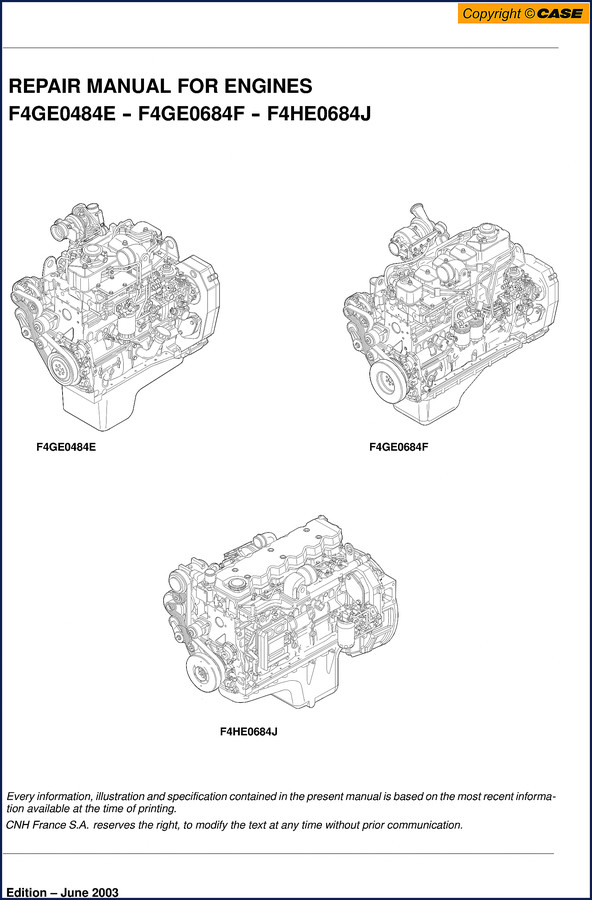

Case F4GE0484E, F4GE0684F, F4HE0684J 2003 Repair Manual

If you’re pulling wrenches on a Case engine and the aftermarket PDF you obtained gives you torque specs in Nm with no conversion table, you already lost time. I’ve been doing this 28 years, and I’ve seen bent pushrods from trusting a reprint that left out the tightening sequence. This Case F4GE0484E, F4GE0684F, F4HE0684J 2003 Repair Manual is the actual OEM print from CNH France – 258 pages of what the factory technician used. It covers diagnostics, full engine overhaul for each model, and the recharging procedure that most third-party docs skip. No fluff, no missing pages.

Engine Diagnostics Section: Where You Start

Section 1 – Diagnostics starts on page EW-1-1. The manual tells you exactly how to run performance tests and fault diagnosis before you tear anything apart. On page 3, there’s a safety warning symbol you must understand before you lift a single component. The manual spells out lifting techniques for heavy parts – something I’ve seen guys ignore and end up with a hernia. If you’ve ever diagnosed a Case engine that runs rough after a rebuild, you need the step-by-step fault table here. It’s not a generic list; it’s written for the F4GE and F4HE blocks.

F4GE0484E Overhaul: Specs You Can Trust

Section 2 covers the F4GE0484E overhaul – and I mean the whole thing, from cylinder head bolt torque to bearing clearance checks. The manual uses the International System (MPa, Nm) but page 4 gives you a full conversion table to psi, lb-ft, and inches. Don’t rely on a conversion app that rounds off – use the exact numbers on page 4. For example, 24.5 MPa equals 250 kgf/cm² or about 3550 psi. That matters when you’re torquing head bolts. The overhaul subsection also lists the tool requirements – you’ll need a dial indicator and a torque wrench that reads in Nm. No shortcuts.

Does This Manual Cover the F4GE0684F and F4HE0684J?

Section 3 handles both the F4GE0684F and F4HE0684J overhaul in one chapter. Different pistons, different injection pump setup – the factory separates them because the tolerances aren’t the same. I’ve seen guys mix up F4GE and F4HE rings and lose compression. This section gives you the exact clearance specs for each engine. If you’re working on a F4HE0684J, the manual also covers the injection timing procedure that’s unique to that block. The index on page 5 lays out the section numbering so you don’t flip pages looking for the right torque table.

Recharging and Start-Up: Why Skip Nothing

Section 4 – Recharging and start-up – is the part most aftermarket manuals leave out. You rebuild an engine, you need to know the oil prime procedure, coolant fill sequence, and break-in steps. The manual gives you the start-up checklist in order. Miss one step and you can wipe a cam lobe in ten minutes. This section also references the fuel system bleeding process. If you’re pulling a Case engine from a CX40B or CX50B, you’ll want to pair this manual with the Case CX40B, CX50B 2004 Repair Manual – 780-Page Factory OEM”>Case CX40B, CX50B 2004 Repair Manual – 780-Page Factory OEM for the chassis side.

Safety Rules on Page 3: Read Them

The manual dedicates a full page to safety warnings and symbols. The safety symbol pops up throughout the text wherever there’s a weight or pressure hazard. I make every junior tech in my shop read page 3 before they touch a Case engine. The manual also states it’s written for a skilled technician – that means you should already know how to use a torque wrench and a micrometer. But even experienced guys need the factory specs. Don’t trust a reprint that changes the formatting. This one is the original 2003 edition.

Aftermarket Documentation: A Waste of Time

I’ve had jobs go sideways because a customer brought in a third-party “manual” that listed wrong piston ring gaps. This OEM manual from Case (CNH France) is the only version I’d use on an F4GE overhaul. The CASE REPAIR MANUAL FOR ENGINES F4BE Series”>CASE REPAIR MANUAL FOR ENGINES F4BE Series is a separate product for the F4BE line – don’t confuse the two. And if you’re working on older UK-built Case tractors, check the CASE 667TA Engine Repair Manual for CNH U.K. Models”>CASE 667TA Engine Repair Manual for CNH U.K. Models for those specific engines. For the F4GE and F4HE family, this 2003 manual is the right one.

Torque specs, fluid capacities, injection pump timing – it’s all in here. The manual even includes a unit conversion table on page 4 so you can work in imperial without doing math in your head. If you’re rebuilding a Case engine and you don’t have the factory tightening sequence, you’re gambling. I’ve seen too many cracked blocks from skipping the pattern.

One more thing – this manual does not cover the transmission side. If you need to understand how the engine connects to the transmission, read up on the basics of a Manual Transmission”>Manual Transmission. And if you’re swapping engines between models, the gear ratios may differ – again, check a Manual Transmission”>Manual Transmission source to confirm bellhousing alignment.

Will this manual help me rebuild a Case F4GE0684F from start to finish?

Yes. Section 3 covers the complete overhaul for the F4GE0684F and F4HE0684J – disassembly, inspection, assembly, torque specs. You need basic engine tools and the manual’s procedure. No experience with this specific engine? Follow the sequence exactly and you’ll get it right.

Does it include wiring diagrams?

No. This is a mechanical repair manual for the engine block and its direct components – fuel system, cooling, lubrication, recharging. Electrical diagnostics for the vehicle chassis are in separate service docs.

If you want a rebuild that stays sealed and runs to spec, get the manual the factory used. Access the Factory Manual now and keep a copy on your tablet or bench – no more guessing.
