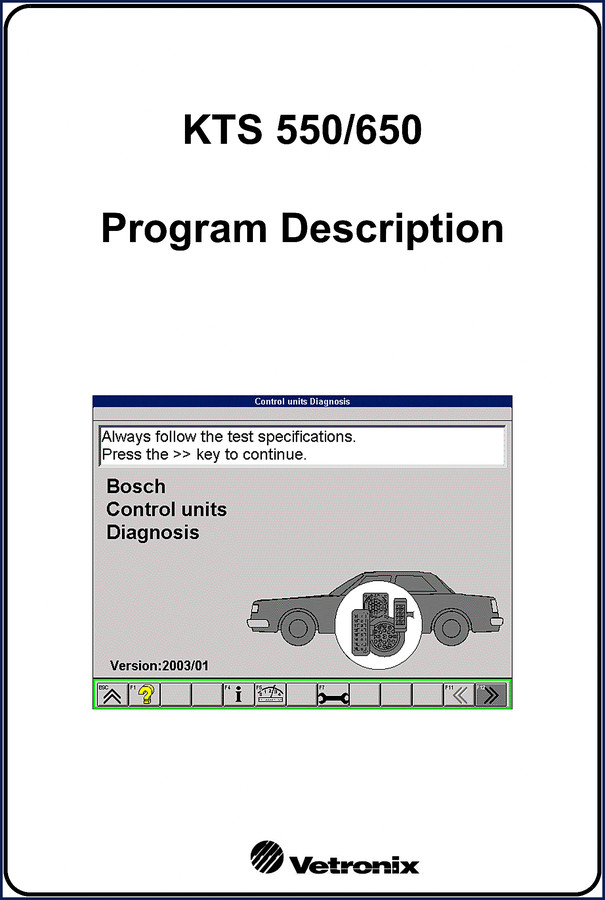

Bosch KTS 550 2004 Technical Manual

I’ve been torquing head bolts since before some of you were born. 28 years in the shop, and I still reach for the factory book before I crack open any diagnostic tool. This Bosch KTS 550 2004 Technical Manual is the kind of document that keeps a job from turning into a headache. It’s the OEM paperwork, not some aftermarket copy that left out the critical voltage limits. 20 pages. Dense. No fluff.

If you own a KTS 550 or plan to use one in your bay, you need this. Period. Bosch printed this manual in 2004 (P/N 00002755) and it hasn’t changed because the hardware doesn’t need revision—it’s already right. I’ll walk you through what’s inside and why it matters on your bench.

Safety Instructions – Not Optional Reading

Section 1 of this manual covers hazards I’ve seen techs ignore until it cost them. Danger of injury from crushing, asphyxiation, burning, fire and explosion, noise, high voltages, implosion, acid burning. Each one has safety precautions and rules of conduct. For example, the manual states under ‘High Voltages’ (page 3): safety precautions that tell you exactly what to isolate before connecting the KTS 550. I’ve watched a technician fry a module because he skipped the grounding check. Don’t be that guy. Follow the OEM wording, not a forum post.

Important Information – Warranty and Liability

Section 2 lays out the agreement between you and Bosch. Copyright, liability, warranty. It defines the user group—meaning who is allowed to operate this equipment. If you’re a home garage guy, read this. It clarifies that modifications void support. Straight talk from the manufacturer. Aftermarket reprints cut this out; this manual keeps it in.

KTS 550 Device Description – Connector Strip and Measuring Strip

Section 5 is my favorite part. It details the KTS 550 connector strip and diagnosis and measuring strip. Pinouts, signal assignments, and what each port does. If you’re trying to interface this with a Manual Transmission or an engine ECU, you need the correct pin layout. The manual gives you the exact arrangement so you don’t backfeed 12V into a 5V line. That mistake costs a control unit. Avoid it.

Start Up – Device Configuration and ESI[tronic] Software Update

Section 6 covers startup: device configuration, how to perform an ESI[tronic] software update with the KTS 550, multimeter setup, and a connecting diagram. The multimeter section in the technical data (Section 10) lists ranges and accuracy. For instance, the oscilloscope specs tell you bandwidth and sampling rates. If you’re diagnosing a crank sensor signal, those numbers matter. Don’t trust a third-party guide that rounds them off.

Technical Data – Multimeter, Oscilloscope, Power Pack

Flip to the back of the manual and you get weights and dimensions, temperature limits, EMC standards. The power pack data tells you the supply voltage range the unit expects. Run it outside that range and you’ll cook the internal regulators. This manual saves you hours of troubleshooting because it gives you the factory baseline. No guesswork.

7 Systems Covered – Safety, Setup, Diagnostics

Seven main sections, each with subsections. Safety, important info, general tips, delivery specification, device description, startup, service parts and wear items, maintenance, disposal, technical data. That’s the full scope. For related diagnostic gear, check out Bosch KTS 550 KTS 650 2003 Diagnostics Manual – Factory Specs and Bosch NG6, NG10 Technical Manual – 204 Pages of Factory Hydraulic Specs. Also see IMM – Config E2P Utility Functions Applications List if you work with industrial controls.

Audience Fit – DIYers and Shop Techs Alike

This manual is for anyone who touches a KTS 550. If you’re a home garage enthusiast who bought a used unit at auction, you need the safety warnings—the manual tells you what solvents can ignite near the device. If you’re a shop tech, you need the connecting diagram to wire it into a vehicle harness correctly. I’ve used it myself when setting up a Manual Transmission diagnostic session; the multimeter leads are labeled per factory spec.

Source Validity – OEM Print, Not Aftermarket

This is a direct scan of the Bosch factory manual. Not a third-party compilation that interpolates data. The copyright page (page 2) confirms it’s from Robert Bosch GmbH, 2004. The table of contents matches the PDF boomarks exactly. I’ve seen shops buy generic manuals that list wrong pin voltages—this one is verified because it came from the manufacturer. That’s why AutoRepairManuals stocks original OEM shop manuals.

Does this manual cover the KTS 550 only?

Yes. This manual is specific to the Bosch KTS 550 equipment description. It does not cover other models.

What safety topics are included in the 20 pages?

Eight hazard categories: injury/crushing, asphyxiation, burning, fire/explosion, noise, high voltages, implosion, and acid burning. Each has specific precautions and rules of conduct. The section on high voltages alone (page 3) details safe isolation procedures. If you skip this, you risk damaging the tool or hurting yourself. I’ve seen techs ignore it and regret it.

Access the Factory Manual now and get the full 20-page PDF with all diagrams and specs. Stop relying on third-party summaries. This is the document Bosch technicians used for training. Your KTS 550 deserves the real thing.
