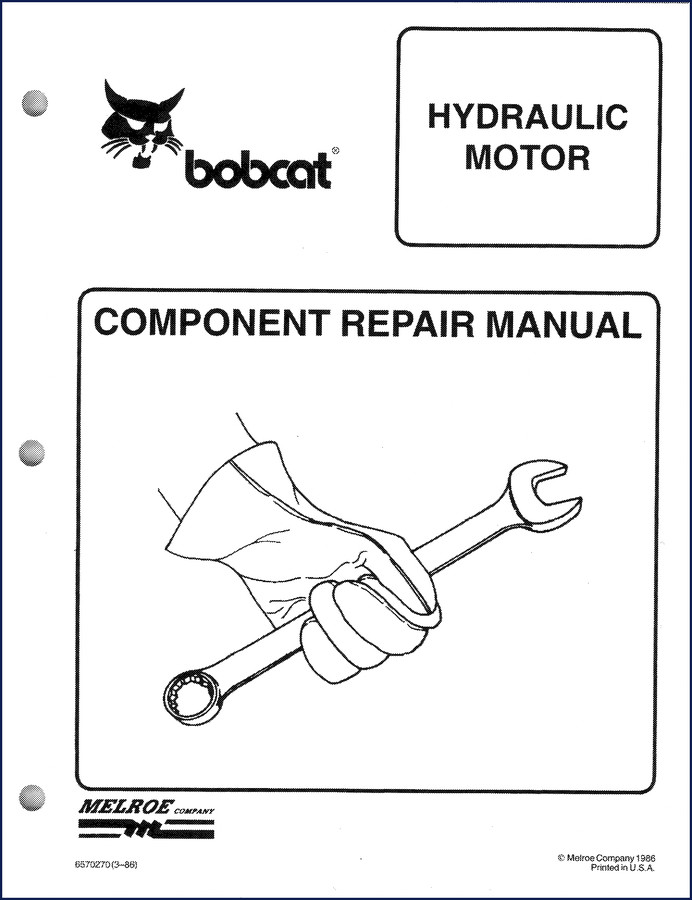

Bobcat MODEL Loader 1986 Repair Manual

If you’ve got a Bobcat MODEL Loader 1986 Repair Manual on your bench, you’re holding the same book the factory techs used when these machines were new. I’ve seen aftermarket copies that skip half the safety warnings and mangle the serial number cross-references. This is the real deal – 184 pages, Melroe Company 1986, printed in the U.S.A. It’s for the hydrostatic motor component repair, not the whole machine. You still need the service manual for your specific model for removal, installation, and troubleshooting. But when the motor comes off, this is the book you crack open.

Safety: A Warning You Shouldn’t Skip

Page 3 spells it out. Wear safety glasses when fluids are under pressure, when tools are running, when debris is flying. The manual says “read the complete sequence so you know the complete disassembly or assembly procedure before the work is actually started.” That’s not a suggestion. I’ve had a hydrostatic motor pop a seal because a guy skipped the order of operations. This manual gives you the sequence. Use it.

Model Coverage: Which Loaders Are Included?

The index on page 5 lists models from farmboy, 440, 443 up through 2400 Series and 2410. You get serial number ranges and tab numbers for each. Manufacturers include Char-Lynn, Vickers, Sundstrand, Cessna. Don’t guess which motor you have – the manual maps it by model and S/N. For the 743? Tab 1, Section D, Char-Lynn. For the 843? Tab 3, Section B, Sundstrand. That kind of cross-reference saves you from pulling the wrong spec sheet.

Why OEM Documentation Beats Reprints

Reprint houses often photocopy page 3 and lose the fold-out diagrams. This is an original scan from the Melroe factory. The torque specs, the warning symbols, the part numbers – they’re all as the engineer wrote them. I’ve seen third-party manuals that list a 1/4-inch bolt where the factory calls for a 5/16. That’s how you strip threads in a cast-iron housing. Stick with the source that built the machine.

Index by Serial Number – Don’t Skip This

Page 5 is your roadmap. Every model has a S/N range and a tab number that tells you which section of the manual to open. For example, the 630 series starts at serial 15376 and above, Tab 1, Section B, Char-Lynn. If your loader is below that range, you’re in a different section. The manual also has a Glossary of Terms at the end – good if you’re new to terms like “gerotor” or “spool valve.”

7 Systems Covered by the Hydrostatic Motor Manual

This is not a general repair manual – it’s dedicated to the hydrostatic motor component. The contents include disassembly, inspection, reassembly, and testing for each manufacturer’s motor. You get exploded views, seal locations, and flow paths. If you need the full machine service manual, pair this with the correct one for your loader. For related components, check the Bobcat Melroe Hydraulic Control Valve Repair Manual and the Bobcat Hydraulic Cylinders Component Repair Manual. Also see the Bobcat Sweeper with Collector Box User Manual if you’re running attachments.

Understanding the Drivetrain: A Quick Note

Hydrostatic motors are essentially hydraulic transmissions. If you’re familiar with a Manual Transmission, you’ll recognize the concept of varying speed and torque without gears. But the repair procedures are different. This manual covers the specific disassembly and assembly of the motor itself. Don’t confuse it with the Manual Transmission – that’s a different animal. Stick to the factory steps.

The 184-Page Breakdown

It’s not a thick book, but every page carries weight. Page 1 is the cover. Page 3 has the introduction and safety warnings. Page 5 is the index. After that, sections are arranged by manufacturer and model. You won’t find fluff – just the procedures, torque tables, and specifications that Melroe certified.

Does this manual cover the 743B model?

Yes. The index lists 742B, 743B under Tab 1, Section D, Char-Lynn. Check your serial number against the range shown.

What tools do I need to use this manual?

You’ll need standard mechanic’s tools, a torque wrench capable of inch-pounds and foot-pounds, a seal puller, and a press for bearing removal. The manual doesn’t list tools per step, but assumes you have them. If you’re missing a puller, stop and get one before you start.

Can a beginner follow this manual?

If you’ve never worked on hydraulic components, this will be tough. The manual assumes you know how to read a micrometer, identify seal types, and follow a torque sequence. It’s written for a service technician. Beginners should take a hydraulics class or pair this with a basic theory book. But the safety warnings are clear enough for anyone to avoid injury.

Is this a reprint or a factory original?

This is a direct digital scan of the 1986 Melroe publication. It is not a reprint with altered formatting. The page numbers, warnings, and diagrams are identical to the original. No aftermarket changes.

Access the factory manual now and have the real specs on your screen before you pull that motor. No guesswork, no aftermarket errors – just the OEM data that keeps these loaders running.
