Yanmar Vio50-2 2001 Parts Catalog – Factory Part Numbers and Diagrams

If you’re wrenching on a Yanmar Vio50-2 2001 Parts Catalog and need to track down a part number, you don’t have time to guess. I’ve seen guys waste a whole afternoon trying to match a bolt because they used some generic aftermarket cross-reference. This is the factory document. 131 pages of exploded diagrams and OEM part numbers. Not a service manual – it’s for ordering the right part the first time. No shortcuts. You need this on the bench if you want to get the machine back in the dirt.

Yanmar Vio50-2 2001 Parts Catalog: What’s Inside

The catalog opens with a painted color list on page 1. You get the Munsell numbers and color codes for Yanmar Deep Green, New Permanent Yellow, and the rest. Page 2 gives you the paint can part numbers – 16L, 4L, and spray. When you have to repaint a boom cylinder or a blade, you order the correct paint. No mixing guesses. That kind of detail is what saves you from ordering the wrong color and having a machine that looks like a patch job.

Hydraulic Cylinder Breakdown: Swing, Boom, Arm, Bucket, Blade

The hydraulic section starts on page 4 with a pictographic index. You’ll find figure references for every cylinder on this machine: swing cylinder (Fig. 32), boom cylinder (Fig. 29), arm cylinder (Fig. 30), bucket cylinder (Fig. 31), blade cylinder (Fig. 33). Each figure breaks the cylinder into its individual components – rods, seals, pistons, glands. You get the OEM part number for each piece. That’s the difference between a seal that fits and a seal that blows out in ten hours. I’ve had counter guys hand me a generic seal that looked right but had the wrong cross-section. With this catalog, you read the figure, order the part, and it fits.

Control Valve Assembly – Figures 37-41

The control valve assembly gets five figures (37-41). That’s a lot of detail because the valve body, spools, springs, and O-rings are all separate line items. The swivel joint (Fig. 36) is another critical component – if you order the wrong rotary seal, you’ll have a hydro leak that’s a pain to fix. This catalog gives you the exact numbers. You won’t be hunting through online forums for a cross-reference that may or may not be correct. The factory valve breakdown is right there.

OEM Part Numbers vs Aftermarket: What’s at Stake

I’ve seen aftermarket parts catalogs that list a generic “valve” part number that works for ten different machines. That’s not good enough. The Vio50-2 uses specific valve assemblies with unique bore sizes and port configurations. The catalog shows you the factory exploded view so you can see how the parts fit together. You don’t want to discover that a cheap O-ring is the wrong durometer because it shows up on the parts diagram as a different color. This is the real deal – Yanmar factory print. The preface even warns against using “simple parts available in the market” because they can cause early breakage. That warning is there for a reason.

3 Systems Covered with Exact Figure References

This catalog covers the hydraulic system in depth: hydro oil pump & joint (Fig. 28), hydro oil tank (Fig. 43), remote control valve (Fig. 42), radiator & mount (Fig. 6), turning motor (Fig. 35), travel motor (Fig. 34), and swivel joint (Fig. 36). Each component is illustrated with a numbered exploded view. If you need a part for the blade cylinder, you flip to Fig. 33 and read the part numbers. No guessing which seal fits which cylinder – it’s all indexed.

What This Catalog Does NOT Cover – Read This Before Buying

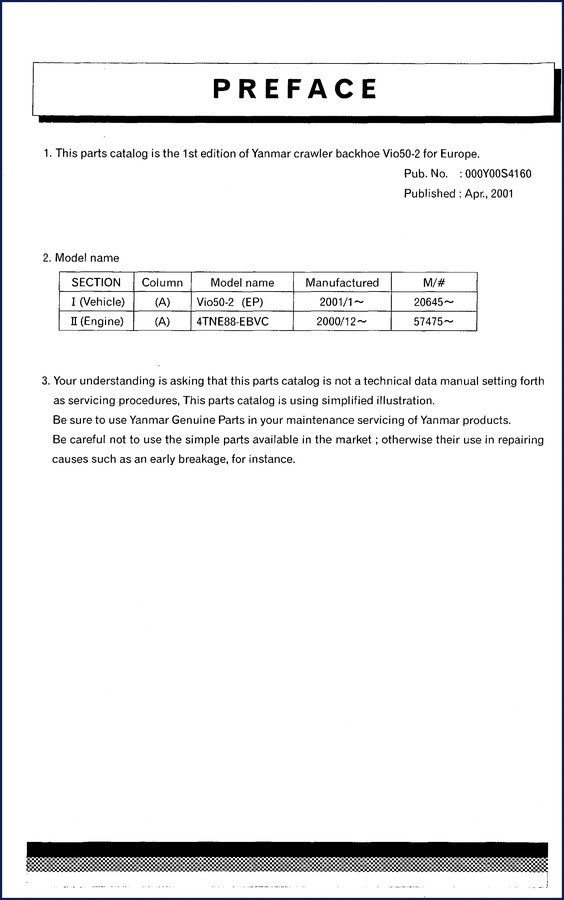

This is a parts catalog, not a service manual. The preface on page 1 states it clearly: “not a technical data manual setting forth servicing procedures.” You won’t find torque specs, adjustment procedures, or diagnostic steps here. What you will find is the correct part number for every nut, bolt, seal, and hydraulic component. If you need service procedures, you want the Yanmar service manual. But for parts ordering, this is the only source you should trust. That’s why our shop keeps one in the drawer next to the pressure washer.

Frequently Asked Questions

Is this catalog a service manual for repairs?

No. It is a parts catalog for ordering replacement parts only.

What kind of part numbers are included for the hydraulic cylinders?

The catalog breaks down each cylinder (swing, boom, arm, bucket, blade) into individual components with OEM part numbers. For example, the boom cylinder includes seals, rods, pistons, and fasteners. You’ll find the exact figure references on page 4. The control valve and swivel joint are also split into individual pieces. If you’re rebuilding a cylinder, you can order every seal and O-ring separately. That prevents leaks and ensures the cylinder operates at factory specs.
