Yanmar Vio50-1 C(JP), Vio50-1 P(JP), Vio50-1 C(AS), Vio50-1 P(AS), 4TNE88-BVA 2000 Parts Catalog

If you are ordering parts for a Yanmar Vio50-1 C(JP), Vio50-1 P(JP), Vio50-1 C(AS), Vio50-1 P(AS), 4TNE88-BVA 2000 Parts Catalog and you rely on aftermarket websites, you have already ordered the wrong hydraulic seal once. Do not waste a second trip to the dealer. This is the last edition (000Y00K3493) of the factory-issued parts manual – 225 pages of OEM drawings, paint color references, and part number breakdowns. Every exploded view is pulled directly from Yanmar’s engineering files. No guesswork.

Models Covered: Vio50-1 C(JP), Vio50-1 P(JP), Vio50-1 C(AS), Vio50-1 P(AS), 4TNE88-BVA

Most parts catalogs cover only the vehicle. Yanmar split this into two sections: Section I (Vehicle) for the four excavator variants and Section II (Engine) for the 4TNE88-BVA and 4TNE88-EBVA engines. The catalog identifies build dates and serial number ranges – Vio50-1 P(JP) built from 1997/7 to 2000/7, chassis 10501–15559. 4TNE88-BVA ran from 1997/6 to 1999/1. That matters when ordering the right starter or injection pump.

SPECIFICATIONS – Engine Bore, Transport Dimensions, Dig Depth

Page 2 of the PDF prints the full spec table: 88 mm bore, 90 mm stroke, transport length 4500 mm, max digging depth 3600 mm (3800 mm with blade). Machine mass runs from 4400 kg (rubber crawler canopy) to 4590 kg (cabin). Travel speed – 4.8 km/h high, 2.3 km/h low on iron tracks. If you are swapping tracks or ordering undercarriage, check the track shoe width: 400 mm standard. The spec section also lists bucket capacity 0.16 m³ and digging force 36.3 kN. That information is not in aftermarket catalogs.

PAINTED COLOR LIST – Factory Paint Codes and Munsell Numbers

Repainting a Vio50-1? The catalog gives the OEM paint codes: Yanmar New Deep Green (Munsell 0.8B2.2/2.2, code 88), Yanmar Peacock Green (3.8BG5.31/9.15, code 97), and Yanmar Citrus Green (4.84GY6.42/6.99). The PAINTED COLOR LIST chapter breaks down which parts get which color – cab, canopy, chassis. A local paint shop can mix from the Munsell notation. Do not trust a rattle can from the auto parts store; the greens will not match.

PICTURESQUE INDEX – Hydraulic Section and Exploded Views

This parts catalog is organized by “Picturesque Index” – a set of numbered exploded-view illustrations covering the whole machine. INDEX(1) covers main parts; INDEX(2) covers the hydraulic section; INDEX(3) breaks down 97 individual figure groups (Figure 01-12 through Figure 97). Each figure labels every component with a callout number that maps to the part number table. Need the seal kit for the boom cylinder? Find the correct figure, note the callout, and order the exact Yanmar genuine part. This is the same system Yanmar dealership parts counters use.

Source Authenticity – OEM vs Aftermarket Parts Catalogs

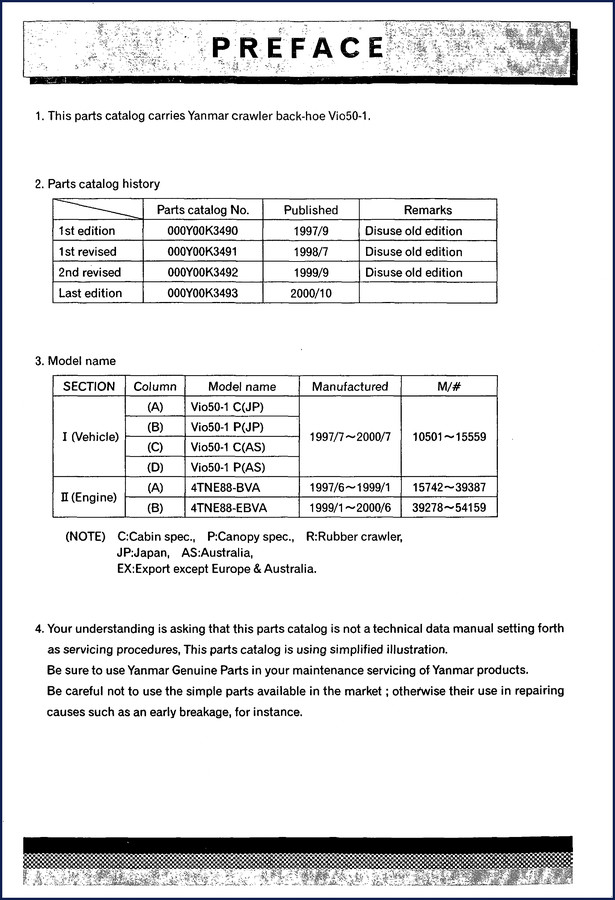

Aftermarket parts catalogs for Japanese compact excavators often reuse scanned images from earlier revisions or substitute generic line drawings. You will miss the supercession notes and the paint color updates. This PDF is the official Yanmar publication from October 2000 – the last edition before the model was discontinued. The preface explicitly warns: “Be careful not to use the simple parts available in the market; otherwise their use in repairing causes such as an early breakage.” That is not a sales pitch. That is Yanmar telling you that non-genuine seals and filters cause hydraulic failures. The catalog only lists genuine parts. If you need aftermarket cross-references, you will need to do that work yourself with the OEM number in hand.
