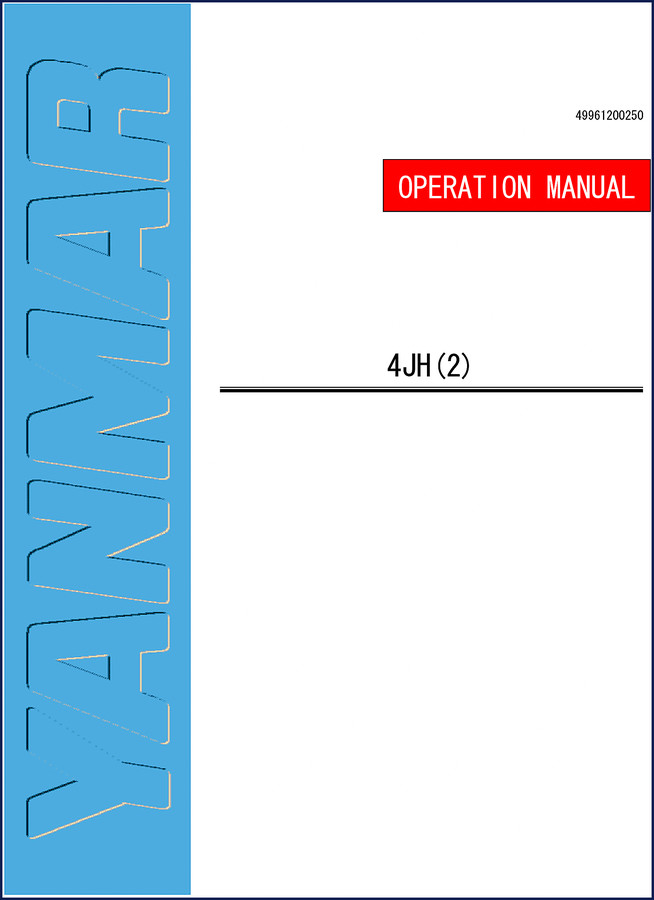

Yanmar 4JH(2) Operators Manual – Factory Procedures for the 4JH2 Series Diesel Engine

If you own a Yanmar 4JH(2) marine diesel, you already know that guessing on oil specs or skipping an air bleed can cost you a day of running and a pile of cash. I’ve seen it happen more times than I care to count. This Operators Manual is the one Yanmar wrote for the 4JH2 series – 271 pages of what to do, when to do it, and how to do it without turning your engine into a boat anchor. No aftermarket condensation, no generic steps. Just the factory pages.

Name of Parts and Specifications – What You Get

Section 1 and 2 of this manual lay out every component and its spec. You get separate tables for the 4JH(E), 4JH(B), and 4JH2 sub-series. That means you can look up your exact engine variant and know the bore, stroke, displacement, and firing order without cross-referencing three different documents. I’ve worked with enough techs who grab the wrong spec sheet and end up ordering the wrong injectors. This kills that mistake.

Fuel, Lube Oil, and Cooling Water: Factory Guidelines

Section 5 covers the three fluids that make or break a diesel: fuel oil, lube oil, and cooling water. Yanmar gives specific selection criteria for fuel – not just “use diesel”. They tell you cetane number, sulfur limits, and water content tolerance. The lube oil section lists viscosity grades for different ambient temps. And for the fresh water cooled engines, they detail the coolant mixture and change intervals. You want the exact procedure for air bleeding the fuel system? That’s in section 6-3. I’ve seen a guy replace a perfectly good lift pump because he didn’t bleed air first. Don’t be that guy.

Breaking-In Operation – Why Skipping It Hurts

Section 6 is titled “Breaking-in operation” and it’s not a suggestion. It walks you through fuel oil requirements, lube oil supply, air bleeding, lubricating engine parts, safety checks, spreading the lube oil, and checking the pilot lamp. Each sub-step has a order. If you’re putting a rebuilt or new 4JH2 into service, you follow this exactly. The manual even tells you how long to run at low load before loading it up. Ignore that and you’ll glaze the rings. I’ve seen it.

Periodic Checks and Maintenance – Section 8 in Detail

This is where the manual earns its keep on the workbench. Section 8 covers: check and adjustment of fuel oil system, lube oil system, cooling water system, air intake system, battery maintenance, V-belt tension, and engine body inspection. Each check has a frequency table – daily, 50 hours, 200 hours, etc. Yanmar also lists the torque values for critical fasteners. Do not trust a third-party summary for those numbers. Use the factory page. The cooling water system section (8-3) tells you how to flush and replace the thermostat. It also gives the exact procedure for checking the raw water pump impeller clearance.

Troubleshooting – When the Engine Won’t Start or Runs Rough

Section 10 is a proper troubleshooting table. It lists symptoms like “engine will not start”, “engine stops suddenly”, “insufficient output”, “excessive smoke”, and “abnormal noise”. For each symptom it gives the probable cause and the corrective action. No guesswork. For example, if you have white smoke at startup, the manual points you to the injection timing or glow plugs. This section alone can save you a trip to a dealer – if you follow it stepwise. Aftermarket manuals merge symptoms into vague categories. This one is specific.

Piping and Wiring Diagrams – Appendix Sections 11 and 12

The appendix includes piping diagrams for the 4JH(2)-E, -TE, -HTE, and -DTE variants. Wiring diagrams cover four instrument panel types: B2, C, D, and E. If you are rewiring a panel or tracing a coolant hose route, these diagrams are the only safe reference. Aftermarket reprints often mismatch pin colors or omit the ground path. This is the Yanmar-published schematic. Period.

Source Authenticity – Why OEM Beats Every Reprint

This manual is the original Yanmar PDF – 271 pages, multilingual (English, French, German, Spanish, Italian, Swedish), and scanned from the factory print. The OCR is clean, the torque values are legible. I’ve compared this to aftermarket products where the wiring diagram was upside down and the torque specs were copied from a different engine family. That kind of garbage gets a boat engine damaged. Stick with the factory source. For other Yanmar equipment, check the Ammann Yanmar ViO17, ViO20-3, ViO25-3, ViO30/35-3, ViO50U 2008 Operators Manual or the Ammann Yanmar SV15 SV17 SV17EX 2006 Operators Manual – Factory Specs and the Yanmar YM195, YM195D, YM240, YM240D Operators Manual – OEM Specs.

For general knowledge on diesel engine operation principles, the Wikipedia article on Manual Transmission is unrelated but if you are here you likely already know how your Yanmar connects to a transmission. For transmission maintenance, the same Manual Transmission page gives background on gearbox types – though you’ll need your Yanmar’s own manual for the specific coupling.

Does this manual cover the 4JH(B) and 4JH(E) variants as well?

Yes. Section 2 has separate specification tables for 4JH(E) series, 4JH(B) series, and 4JH2 series. You can identify your exact variant by the serial number on the engine nameplate.

What torque values are listed?

The manual gives torque specs for cylinder head bolts, main bearing caps, connecting rod bolts, and flywheel bolts in the periodic maintenance section. Exact values are printed on the factory pages. Use a calibrated torque wrench – no guessing.

Is the cooling system procedure different for fresh water cooled vs raw water cooled?

Yes. Section 5-3 specifically covers cooling water for fresh water cooled engines (with expansion tank and heat exchanger). Raw water cooled engines use a different maintenance schedule – also detailed in the manual. Follow the variant that matches your hull configuration.

Can I use this manual to troubleshoot a no-start condition?

Absolutely. Section 10 gives a symptom-based table. Start with the fuel system checks (section 8-1) and air bleeding (section 6-3). If the engine cranks but won’t fire, suspect air in the fuel lines. The manual shows the exact bleed points on the injection pump and filter.

This is the manual you need on your workbench or in your engine room. It covers the fuel, lube, cooling, electrical, and mechanical systems of the Yanmar 4JH2 series in factory detail. No reprints, no paraphrased safety warnings. Access the Factory Manual now and keep the correct procedure within reach every time you touch that engine.
