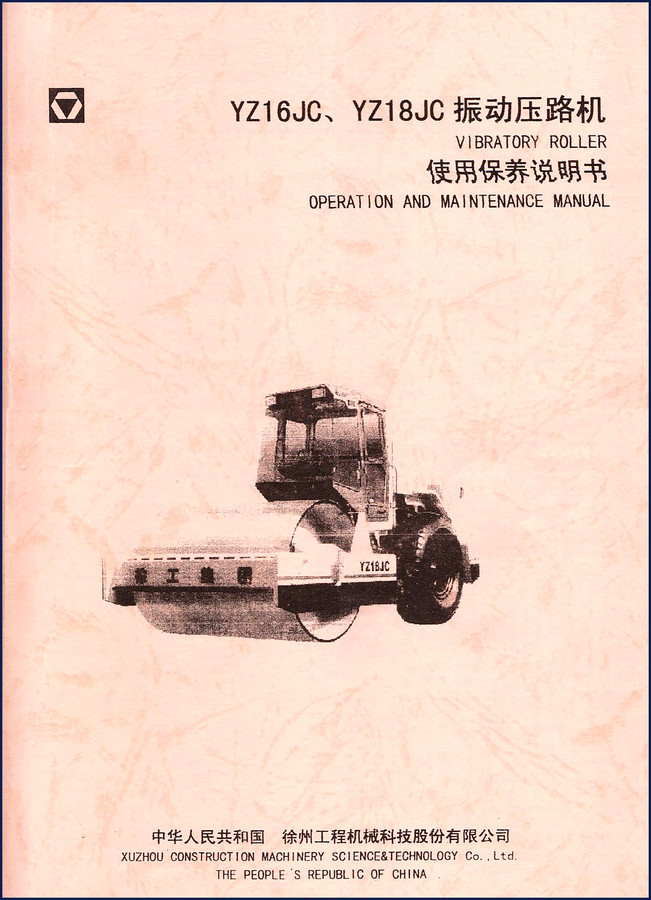

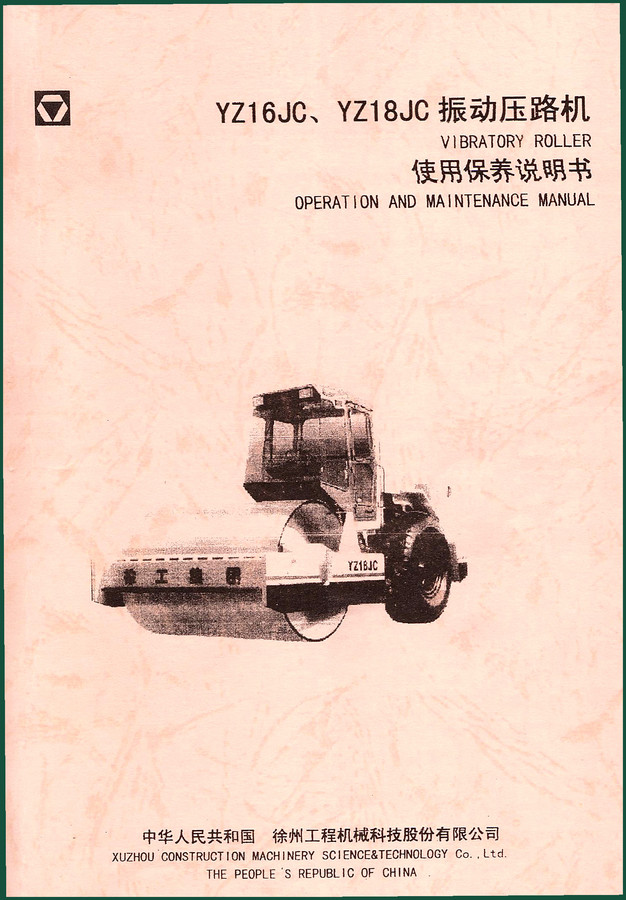

Xuzhou Construction Machinery Science&technology YZ16JC, YZ18JC Operators Manual

If you’re running a Xuzhou Construction Machinery Science&technology YZ16JC, YZ18JC Operators Manual machine on a job site, you already know two things: these vibratory rollers are built for heavy compaction, and the factory documentation is what keeps them running without tearing your hair out. I’ve seen too many operators skip the book, try to guess oil specs, and end up with a seized drum or a blown hydraulic motor. This is the actual OEM manual – 65 pages of Chinese and English text that covers every system on the YZ16JC and YZ18JC. No aftermarket reprints, no guesswork.

Safety Precautions: What the Manual Covers

Chapter III is where you start. It walks through general safety, starting and stopping procedures, and repair maintenance. The manual doesn’t mince words on what happens if you don’t bleed the fuel system after a filter change. Page 33 gives you the sequence for starting the engine – including the pre-heat cycle and hydraulic lock-out checks. Ignore that and you’ll be replacing a starter or worse. Safety isn’t a suggestion here; it’s a requirement.

Technical Specifications: What You Need to Know

Chapter II lists the technical data – working mass, static linear pressure, vibration frequency, nominal amplitude, travel speeds. For the YZ16JC, curb weight is 16,000 kg, static linear pressure 355 N/cm. The YZ18JC is similar but heavier in some specs. You need these numbers to set tire pressure (18.00×24 tires, kPa listed) and to know if you can handle the grade (30% climb capability). The manual gives it all in a table on page 5. Keep that page tabbed.

Faults and Remedies: Gearbox and Braking Mechanism

Chapter VIII breaks down common problems – gearbox noise, braking failure, vibrating drum leaks, hydraulic vibration system faults. Each section lists the symptom, possible cause, and remedy. For example, if the gearbox grinds on shifts, check the main clutch adjustment (IV.4). If the brakes drag, the manual points to the braking mechanism (VIII.2). That’s the value of OEM documentation – specific diagnostics tied to your machine, not generic advice. Pair this with the XS160 XS190 Vibratory Roller Parts List if you need part numbers for similar models.

Hydraulic System Precautions

Section VII.4 covers hydraulic system precautions. The YZ16JC and YZ18JC use a closed-loop hydraulic system with variable piston pump and fixed piston motor. Overheating? The manual tells you to check charge pressure and filter condition before pulling components. Contaminated oil means pulling the whole system. The manual also lists the required lubricating oil and hydraulic oil grades in VII.2. Do not substitute. I’ve seen cheap hydraulic fluid ruin a pump in 20 hours. Follow the specs.

Maintenance Schedule and Item

Section VII.5 lays out the maintenance schedule – daily, weekly, monthly, and seasonal checks. It lists checking points for grease fittings, oil levels, belt tension, brake adjustment. The manual also covers storage and cleaning (Chapter VI.7). If you park a roller for three months without following the storage procedure, corrosion sets in on the drum bearings. The manual tells you how to prepare for that.

3 Reasons to Choose OEM Documentation

First, the torque specs and fluid capacities come from the factory – not a third-party guess. Second, the wiring diagrams in Chapter IV.10 (Electric System) are accurate for your machine. Third, the troubleshooting logic matches the actual parts arrangement. Aftermarket manuals often swap similar models or leave out critical warnings. This one has Xuzhou’s own part numbers and callouts. For related equipment, check the XSM218 XSM220 Vibratory Roller Parts List or the Hitachi ZAXIS225US-3 2007 Operators Manual | OEM Factory Specs if you run mixed fleets.

Does This Manual Cover Transmission and Vibration Systems?

Yes. Chapter IV covers the transmission mechanism, gearbox assembly, main clutch, vibrating drum, rear drum and side transmission, braking, pneumatic, hydraulic, and electric systems. The gearbox has three speeds plus a differential. The manual includes diagrams of the gear engagement sequence. If you need a primer on how a manual transmission works in general, Manual Transmission provides background, but for your specific roller, trust this book. The vibration system uses a closed hydraulic circuit – the manual walks you through troubleshooting no-vibe conditions (VIII.4).

Source Authenticity: OEM vs Aftermarket

This is a genuine Xuzhou Construction Machinery Science&technology publication. It’s the same document that ships with a new roller. Aftermarket books often omit key safety warnings or use generic torque tables. I’ve seen a “universal” roller manual that listed the wrong hydraulic oil viscosity – caused seal failures. This manual was printed by the manufacturer. For an overview of the industry and why OEM docs matter, see Automotive Industry Overview. But for your YZ16JC or YZ18JC, this is the only book you should open.

FAQ

Does the manual include wiring diagrams?

Yes – Chapter IV.10 covers the electric system with wiring and component locations.

How do I find the correct oil pressure for the hydraulic system?

The manual gives charge pressure specs in Technical Data (Chapter II) and hydraulic system precautions (Section VII.4). It lists the required viscosity and grade for the hydraulic oil (VII.2) and includes a troubleshooting chart for pressure drops. If your machine loses vibration power, check the charge pump screen first – the manual tells you how to inspect and clean it without removing the entire pump assembly. It also warns against mixing different oil brands, which can cause foaming and cavitation. All that is in the 65 pages.

You need this book on the workbench, not buried in a filing cabinet. Access the Factory Manual now and keep your roller compacting without downtime.
