2004 Workhorse Custom Chassis Motorhome and Commercial Chassis Truck Service Manual

If you’ve ever chased a brake leak on a motorhome because the aftermarket manual told you 150 ft-lbs when the real spec was 185, you know exactly why this Workhorse Custom Chassis Motorhome Chassis, Commercial Chassis Truck 2004 Service Manual matters. I’ve been torquing bolts since before most of you were born, and I’ve seen one too many rigs come in with stripped caliper brackets from wrong data. This is the factory supplement, 1625 pages thick, and it doesn’t let you guess. Published by Workhorse themselves in 2004, it covers both the Motorhome Chassis and the Commercial Chassis Truck. Everything from the power steering gear to the ABS modulator is here, with specs you can trust because they came off the same line the chassis was built on.

1625 Pages of Factory Service Data

Page count isn’t a brag – it’s a necessity when you’re dealing with a chassis that has a Cummins ISB4 electronic control module on one end and a 6.0L gasoline engine on the other. This supplement integrates with earlier Workhorse manuals, so you’re not missing the base procedures. You get the full Section 5 – Brakes, which includes the Antilock Brake System starting at page 87 of 1614 (their numbering). And Section 6 – Engine covers both the 4.8L/6.0L mechanical side and the Cummins ISB4 Electronic Tech Package. That Cummins section alone has 35 subchapters, from accelerator interlock to vehicle speed sensor anti-tampering. Need the charge pressure? Page 73. Want the torque derate logic? It’s in chapter 2.8.1. Every spec is factory-original, not a reprint from some third-party distributor.

Brakes: ABS and Hydraulic Diagnostics

Brake work on a heavy chassis isn’t a Sunday afternoon job – it’s a liability. This manual gives you the antilock brake system diagnostic flow, valve body removal, and torque values that match the production line. I’ve seen guys put a caliper on with a click-type wrench and call it good. Wrong. The factory sequence on page 26 (the brake section) lists the specific tightening pattern and ft-lbs for the caliper mounting bolts. You follow that, and you won’t be replacing a rotor because of a uneven clamp load. Also covers the brake booster, master cylinder, and parking brake linkage. If you’re doing a pad slap on a commercial chassis, stop. Get the spec first.

Engine Mechanical: 4.8L/6.0L and Cummins ISB4

Two completely different powerplants, one service manual. The 4.8L and 6.0L gasoline engines are covered in the Engine Mechanical section (S3 6-1 / 200). That includes cylinder head torque sequences, oil pan removal, and timing chain inspection. For the diesel side, the Cummins ISB4 Electronic Tech Package is a standalone PDF inside the supplement. It details the full electronic control system: ECM, sensors (rail pressure, coolant temperature, intake manifold pressure), harness routing, and component connectors. There’s a whole chapter on exhaust brake interaction with cruise control and automatic transmission – if you’ve ever had a customer complain about reduced power on a grade, that’s your starting point. The offboard diagnostics (2.7.2) tells you what to read with a scan tool and what the active codes mean. No guesswork.

What Torque Values Are Listed?

Every fastener that matters. Wheel studs, brake calipers, driveline bolts, engine mounts, steering linkage, suspension bolts. The manual doesn’t list every single nut on the chassis, but anything that could cause a failure or a safety issue gets a specific torque value with the proper tightening sequence. For example, the steering gear mounting bolts – you get the pattern and the final torque. Same for the power steering pump pulley. I’ve seen backyard guys use a impact and snap the mounting ear. That’s a $800 repair. The manual saves that bill.

Source Validity: OEM vs Aftermarket Documentation

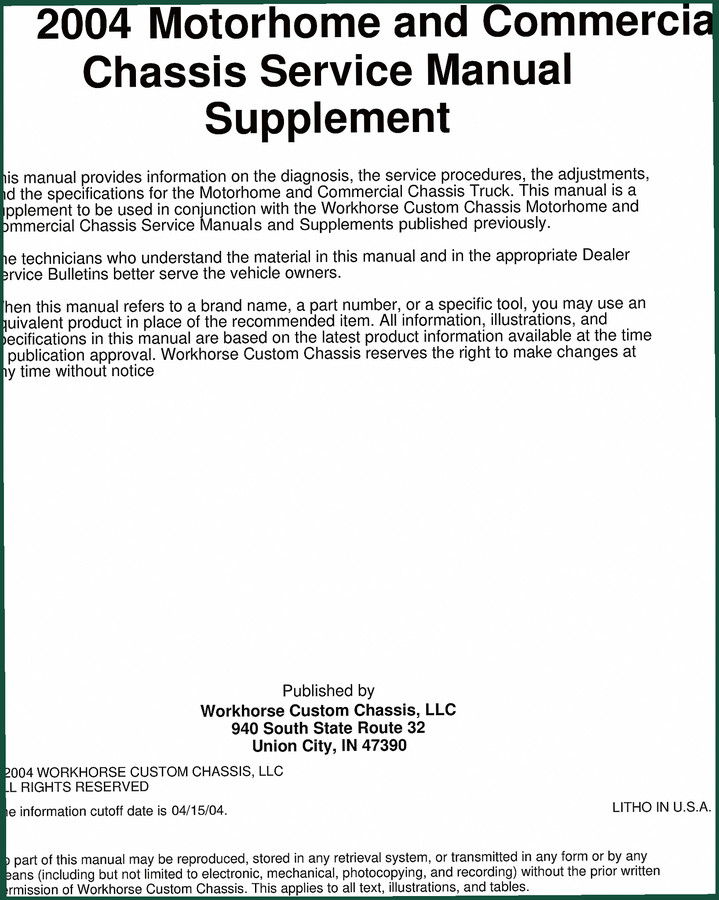

This isn’t a scanned reprint from some website that copied a third edition. This is the original 2004 Workhorse Custom Chassis service supplement, printed by the manufacturer. The copyright page states ‘Workhorse Custom Chassis, LLC’ and the information cutoff is 04/15/04. The document structure is exactly what the dealer techs used: Section 5 Brakes, Section 6 Engine, and the Cummins ISB4 Tech Package as a separate segment. Aftermarket manuals often combine years or leave out bulletins. This one doesn’t. If you find an error, the manual even tells you to call 877-246-7731 to report it – that’s how much they cared about accuracy. No generic third-party content.

Does this manual cover both the Motorhome and Commercial Chassis Trucks?

Yes. The title says ‘Motorhome and Commercial Chassis Truck.’ The Supplement itself states it covers both chassis lines, and the Table of Contents includes sections for steering, brakes, and engine work.

Does it include wiring diagrams for the Cummins ISB?

It includes the OEM harness routing and connector pinouts from the Cummins Electronic Tech Package, but full chassis wiring diagrams are in the base Workhorse manual this supplements. You need both.

Will this tell me the torque for my wheel lug nuts?

Yes, the brake section lists wheel stud torque specifications. Always verify with the manual before tightening.

How is this different from a Haynes or Chilton manual?

Haynes and Chilton write generic procedures based on tear-downs of one example. This is the actual factory document used by Workhorse dealers. The torque specs, diagnostic routines, and part numbers are 100% OEM-sourced, not interpreted by an outside writer.
