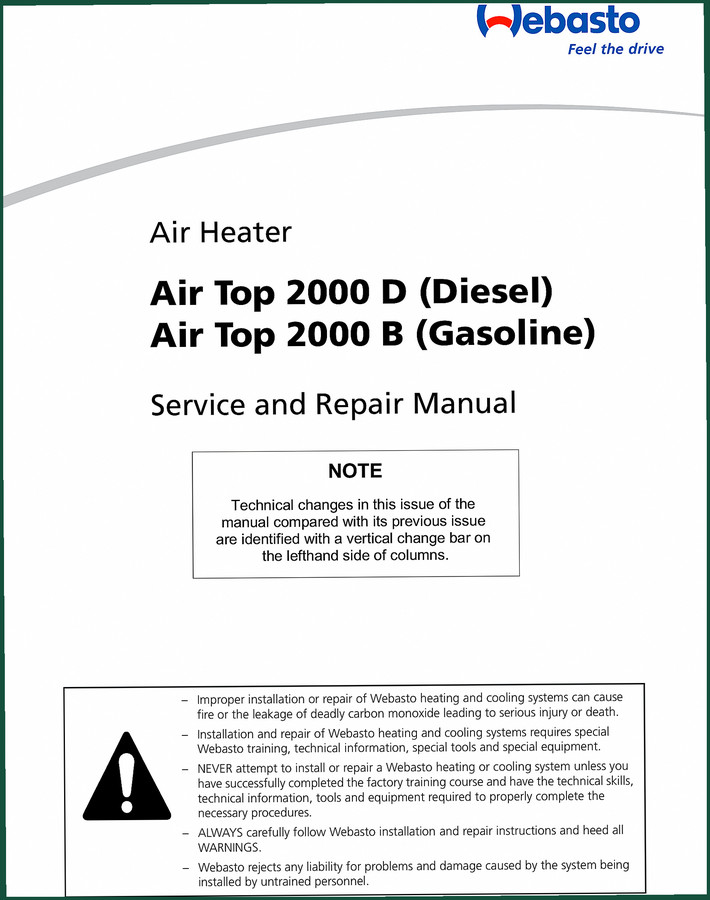

Webasto Air Top 2000 D, Air Top 2000 B Service Manual

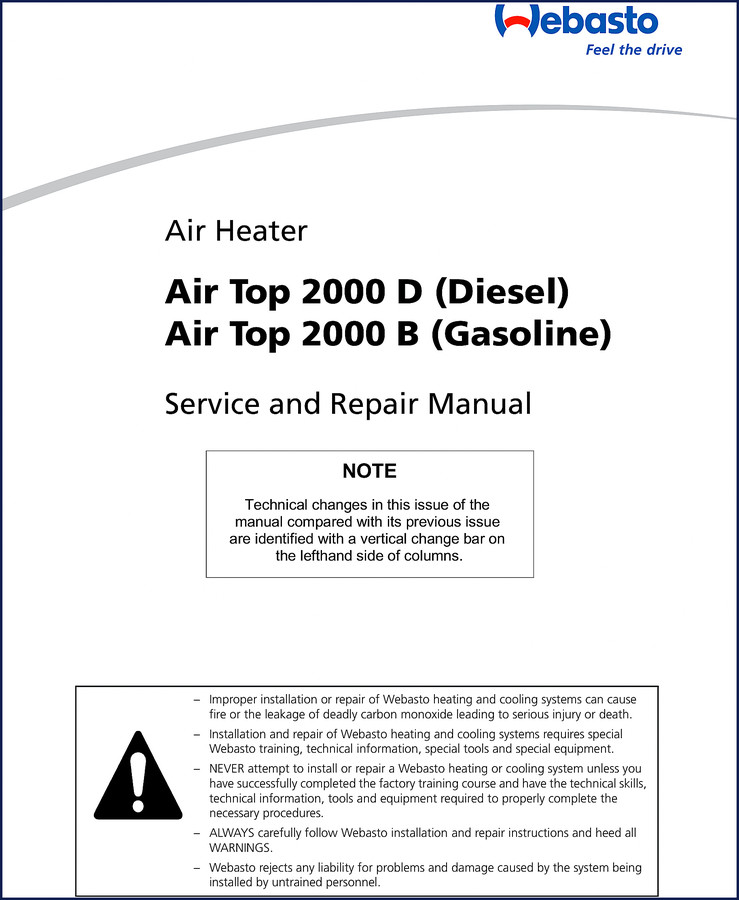

I’m Mike Callahan, ASE Master Technician. When I see a Webasto Air Top 2000 D, Air Top 2000 B Service Manual, I stop what I’m doing. Because the alternative is carbon monoxide from a botched install. Webasto prints on page 1: “Improper installation or repair of Webasto heating and cooling systems can cause fire or the leakage of deadly carbon monoxide leading to serious injury or death.” That’s not a warning label – that’s a liability sentence. This factory manual is 60 pages of OEM procedure. No third-party hackery. No guesswork.

Page 1 changes everything.

The manual starts with safety because Webasto knows a heater mistake kills. Section 1.4 Safety Information and Regulations lays out general safety notes. Section 1.5 Legal Provisions for Installation reminds you that you’re responsible if you skip steps. If you haven’t completed Webasto factory training, this manual won’t save you from a lawsuit. But if you have the training, it gives you the exact specs you need.

Safety Warnings and Legal Provisions

Chapter 1 of this manual isn’t filler. It covers scope and purpose, meaning of warnings, cautions, and notes. Section 1.4.1 General Safety Notes are mandatory reading. I’ve seen guys skip those and then wonder why their heater soots up. The manual also references additional documentation to be used – you might need the Webasto Thermo Top V/Fleece Training Manual if you’re working on water heaters. Don’t assume one manual covers all.

What Does the General Description Cover?

Chapter 2 breaks down every component: combustion and heating air fan, heat exchanger, burner insert with combustion tube, control unit, flame sensor, glow plug, temperature limiter, and dosing pump. Each part gets its own section with page references. If you’re trying to figure out why the heater won’t start, you start here. The manual shows you what each part does and where it lives. No aftermarket manual gives you this level of detail without mistakes.

60 Pages of Factory Procedure

Sixty pages doesn’t sound like much, but Webasto packs it. Chapter 3 gives functional descriptions for both the non-diagnosis and diagnosis models. You get the full sequence: switch-on, stabilization, heating operation, control operation, idle, and switch-off. Chapter 4 is technical data. Chapter 5 troubleshooting with error code output for the diagnosis version. Chapter 6 functional tests. Chapter 7 circuit diagrams. Chapter 8 servicing covers every removal and installation step. There’s a reason this manual costs real money – it saves your time and your life.

Check the Glow Plug Resistance

Section 6.3.1 gives you the glow plug resistance test procedure. Section 6.3.2 covers flame sensor resistance. These are the tests you run when the heater fails to ignite. You also get CO2 adjustment in section 6.2.1 – that’s how you dial in combustion efficiency. The manual expects you to have basic electrical tools and a multimeter. If you don’t, buy those first. The wiring diagrams in Chapter 7 show every connection. I’ve used those to trace a dosing pump fault that three other techs missed.

Troubleshooting: Error Code Output

Chapter 5 troubleshooting includes section 5.4 Error Code Output for the Air Top 2000 Diagnosis model. If your heater flashes a code, you decode it here. Section 5.2 lists general failure symptoms – no heat, overheating, smoke. Section 5.3 covers failures during operation. The manual doesn’t just list codes; it tells you what to check next. For example, if the flame sensor fails, you go to section 6.3.2 and verify resistance.

Who should buy this manual? Trained technicians, fleet mechanics, and serious DIYers who have completed Webasto’s factory training. If you’re a homeowner trying to keep your camper warm, get trained first. The manual assumes you know how to use a multimeter and interpret wiring diagrams. It also assumes you have access to Webasto special tools – the manual lists them in Chapter 8. Without training, you’ll miss the nuance in the functional descriptions. I’ve seen enough fried control units to know.

For a broader understanding of automotive systems, check the Automotive Industry Overview on Wikipedia. If you’re working on a different heater platform, the Manual Transmission article might help with unrelated drivetrain work. And if you need manuals for other equipment: the White Outdoor LT-5 – 700 Series Rider Service Manual covers lawn tractors; the Maruti MB308 Service Manual Procedures and Repair – Section: Section 8A Wiring D offers wiring diagrams for Indian-market vehicles.

FAQ

Does this manual include wiring diagrams for the Air Top 2000 D?

Yes. Chapter 7 covers circuit diagrams.

Can I use this manual for other Webasto heaters?

No. This manual is specifically for the Air Top 2000 D and Air Top 2000 B models. The Air Top 2000 STC has different components and wiring. Using the wrong manual can lead to incorrect installation. Always match the model number. The manual’s title page confirms it covers both D (Diesel) and B (Gasoline) variants. If you have a different model, look for the specific service manual. Webasto produces separate manuals for each heater family. For example, the Webasto Thermo Top V/Fleece Training Manual covers water heaters. Do not mix them up.

Stop relying on forum posts and sketchy PDFs. Get the real Webasto documentation. Access the Factory Manual from AutoRepairManuals and keep it on your workbench.
