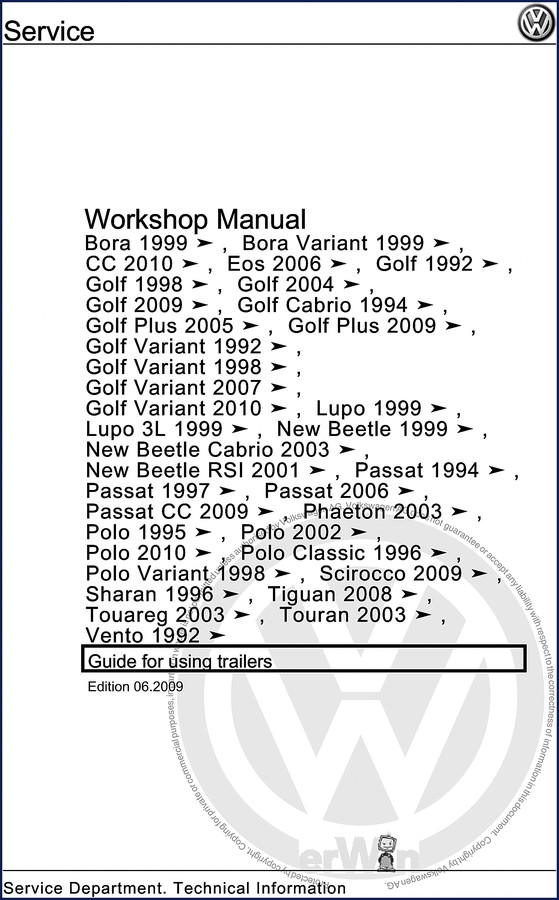

Volkswagen Bora, Bora Variant, CC, Eos, Golf 2009 Service Manual

I’ve seen more backyard hitch installs go sideways than I’ve had hot dinners. Wrong ball‑head torque, trailer socket wired backwards, control unit coded for a different continent—then the customer shows up at my shop with a fried module and a blown fuse. That’s why this Volkswagen Bora, Bora Variant, CC, Eos, Golf 2009 Service Manual sits on my bench next to the torque wrench. It’s the real factory document, not some aftermarket compilation that skips the critical steps. 69 pages of VW‑approved procedure, straight from Wolfsburg.

Technical Prerequisites: Read This Before You Touch a Bolt

Section 2 of this manual covers what most people ignore: engine cooling upgrades, exterior mirror requirements, and uprated shock absorbers and coil springs. If you bolt a 1,500‑lb trailer onto a Golf that came with the soft factory suspension, you’re asking for rear‑end sag and overheated coolant on a grade. Page 1 lists the prerequisites by model. Aftermarket guides will tell you “install a hitch and go.” This manual tells you to check the spring rate first.

Trailer Socket Wiring: 7‑pin vs 13‑pin

Ever tried to guess which pin is left turn on a 13‑pin socket using a $12 tester from the parts store? Don’t. Section 2.4 gives you the exact pinout for both 7‑pin and 13‑pin trailer sockets as fitted by Volkswagen. It also covers the trailer detector control unit -J345-, including the coding procedure. You need this if you’re retrofitting a tow hitch on a Bora Variant or a 2009 Eos, because the control unit won’t recognize the trailer load without the correct coding. Aftermarket manuals skip the coding step and leave you with a trailer that triggers no warning lights—and no brake‑light function when the trailer brakes.

Engine Cooling and Uprated Suspension: What the Factory Requires

Section 2.6 and 2.8 cover two areas I see neglected on every aftermarket install. The engine cooling system needs to handle the extra load, especially on the 2009 Golf with the 2.0T. The manual specifies which cooling fan upgrade is needed and how to verify it. For suspension, it lists the part numbers for uprated shock absorbers and coil springs for each model. You don’t get those numbers from a generic hitch‑brand instruction sheet. You get them from the VW factory manual—this one.

Legal Requirements and Drawbar Load: Don’t Skip Section 6

Section 5 covers drawbar load details; Section 6 lays out the legal requirements for towing in North America and Europe. If you’re installing a hitch on a 2009 CC or a Bora, you need to know the maximum drawbar load for that specific chassis. The manual gives the values in pounds—no conversion nightmares. And it tells you where to affix the towing attachment type plate (Section 4.1). I’ve seen a shop fail inspection because the plate was riveted to the bumper instead of the crossmember. That’s a ten‑minute fix if you have the manual, a two‑hour R&R if you don’t.

Models Covered: Not Just Bora and Golf

This manual covers the Bora 1999 onward, Bora Variant, CC (2009 and 2010), Eos 2006, Golf from 1992 all the way to 2009, Golf Plus 2005‑2009, Golf Variant, Lupo, New Beetle, Passat, Polo, Scirocco, Sharan, Tiguan, Touareg, Touran, Vento, and more. That’s 47 model lines in one 69‑page document. If you’re working on a Volkswagen and need to know the correct trailer‑wiring pinout or ball‑head torque, this is the only source that has it straight from Volkswagen AG. No third‑party reprints, no “compatible” data that turns out to be from a 1998 Audi.

Other relevant factory manuals from the same era include Volkswagen Polo 2002 Training Manual”>Volkswagen Polo 2002 Training Manual, Volkswagen Golf Passat Touran 2003-2006 Workshop Manual”>Volkswagen Golf Passat Touran 2003-2006 Workshop Manual, and Volkswagen Golf Golf Plus 2004 2005 Workshop Manual”>Volkswagen Golf Golf Plus 2004 2005 Workshop Manual. For broader context on vehicle systems, see Automotive Industry Overview”>Automotive Industry Overview and Manual Transmission”>Manual Transmission.

Does this manual cover the Bora 2004 with a 1.9 TDI?

Yes. Section 7 covers Bora and Bora Variant from 1999 onward. The 2004 1.9 TDI is included. The manual gives you the factory trailer load limits, wiring diagram, and drawbar load for that specific engine.

What about the Eos 2006 retractable hardtop – any special towing restrictions?

Section 8 covers the Eos 2006. Volkswagen advises checking the engine cooling and uprated shock absorbers. The manual notes that the retractable top mechanism requires extra clearance for the hitch receiver; the specified ball head offset is given in the drawing on page 3. Use that offset or you’ll hit the roof motor.

Is this manual only for trailer wiring, or does it include torque specs for the ball head?

Torque for the ball head mounting bolts is listed in the Technical prerequisites section. It also covers the tightening sequence for the trailer socket bracket. These are OEM figures—not “hand tight plus a grunt.”

Can I use this to code the J345 control unit on a 2009 Golf without VCDS?

The manual describes the coding procedure for the trailer detector control unit. You still need a diagnostic tool that can access the J345 module. The manual gives you the exact coding bits and adaptation channels. Without that, you’re guessing. But the manual won’t remove the need for the tool.

If you’re installing a tow hitch on a Volkswagen, you need the factory data. Don’t trust a reprint that says “typical values” next to a torque spec. Access the Factory Manual and get the real numbers.
