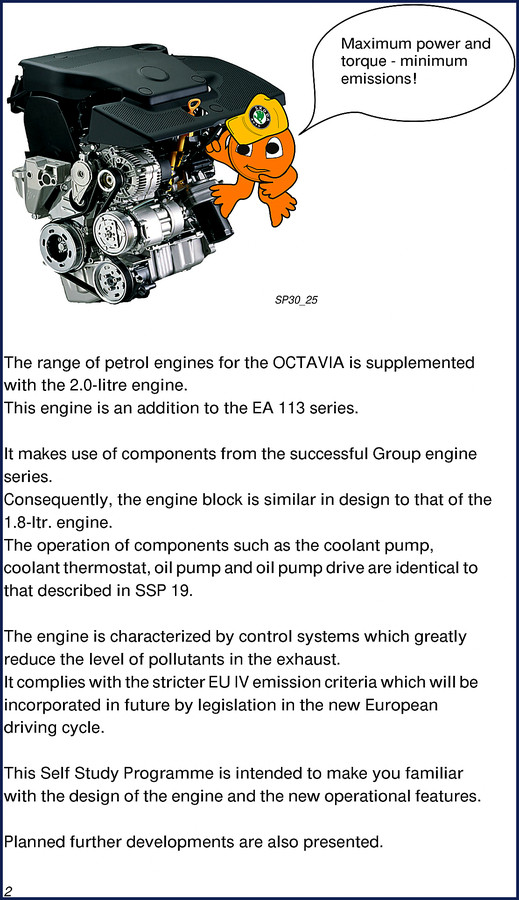

VW Octavia 2.0L Petrol Engine Workshop Manual – EA 113 Series

You ever get handed a job on an Octavia with the 2.0L petrol and the aftermarket wiring diagram shows a different pinout than what’s actually in front of you? That’s wasted time, and in a shop that’s lost revenue. This VW Group (implied By EA 113 Series And Octavia Model Reference) Octavia Workshop Manual is the factory self-study programme – 34 pages of what the engineers actually put under the hood. Not a reprint or a third-party summary. If you’re chasing a misfire on a 2005 Octavia AQY engine, you want the distributorless ignition specs from the source, not a forum post.

What This 34-Page Workshop Manual Actually Covers

On page 2 you get the full table of contents: engineering of the 85 kW engine, system overview, positions of components, mechanical components of engine, crankcase breather, fuel injection system, pistons, sensors, PTFE seals, secondary air system, emission control system, exhaust gas monitoring system OBD II, function diagram, self diagnosis, further development of the 88 kW engine, and a test your knowledge section. That’s not a generic list – it’s a roadmap of exactly what the VW Group engineers designed. The manual is written for technicians who need to understand why a part works, not just how to swap it. Every component position is shown in the system overview on page 6. Torque values? You’ll find them referenced in the mechanical section – but unlike some aftermarket manuals, these come straight from the factory assembly line.

Does This Manual Cover the Full Service Procedure?

No. This is a self-study programme (SSP), not a full workshop manual. If you’re looking for crank bolt torque sequence for the 1.8T, this won’t list it. What it does give you is the engineering logic behind the EA 113 series – the same series used in the Octavia. You get the theory of operation for the Motronic 5.9.2 engine management, the secondary air system, and the OBD II monitoring. For a diag tech, that’s gold. I’ve seen guys chase a P0420 on an Octavia for three hours because they didn’t understand how the two lambda probes interact with the secondary air system. Page 18 (Secondary Air System) and page 22 (Emission Control System) lay out the flow so you can test the circuit instead of throwing parts. Pair this SSP with the factory workshop manual from AutoRepairManuals and you have the complete picture.

Engine Mechanical Components – Pistons, Sensors, PTFE Seals

The mechanical section covers the crankcase breather (page 12), pistons (page 14), sensors (page 16), and PTFE seals (page 17). The piston section gives you the bore (82.5 mm) and stroke (92.8 mm) for the 2.0L engine – that’s the same block architecture as the 1.8L but with a longer stroke. If you’re rebuilding an Octavia bottom end, you need those dimensions to order rings and bearings. The PTFE seal section is rare in third-party manuals – these are the crankshaft seals that require specific installation tools. The manual tells you the correct tool numbers. Ignoring that will cost you an oil leak and a comeback. Sensors? The Hall sensor at the camshaft and the crankshaft position sensor (58-tooth wheel with 2-tooth gap) are shown with their signal patterns. That’s diagnostic data you can use with an oscilloscope.

OBD II and Emission Control Systems – Why You Need Factory Data

Page 24 covers the exhaust gas monitoring system OBD II. This isn’t generic OBD – it’s the exact monitor strategy VW Group programmed for the Octavia. You see the function diagram on page 27, which shows how the ECM, lambda sensors, and secondary air injection interact during cold start. If a customer comes in with a check engine light for insufficient secondary air flow, the manual walks you through the self-diagnosis procedure on page 30. That’s where you learn about the diagnostic connector pinout and the readiness codes. Aftermarket sources often skip the self-diagnosis flowchart. This manual gives you the factory test plan.

Torque Specs and Component Positions

Need the torque for the cylinder head or the oil pump? The manual lists them in the mechanical component section – though I’ll be honest, it’s not a full torque chart like you’d get in a factory service manual. What it does include are the positions of components (page 8) with spatial relationships – that helps when you’re replacing a coolant pump or thermostat housing. The operation of the coolant pump, oil pump drive, and thermostat is identical to the 1.8L engine (described in SSP 19). If you already have that SSP, cross-reference. If not, buy this one. Page 4 gives the engineering highlights: distributorless twin-spark ignition, hydraulic bucket tappets, reference mark detection on the crankshaft. That’s the kind of detail that tells you the timing chain setup without having to tear it apart first.

Source Authenticity – OEM vs Aftermarket Documentation

I’ve been burned by aftermarket manuals that copied a torque spec from a different engine family – that’s how you strip a M10 bolt in an aluminium block. This is an original VW Group SSP, published for dealer training. It has the part numbers for the tools required (e.g., special tools for PTFE seal installation). The diagrams are factory CAD drawings, not scanned copies with missing dimensions. When you see “Test Your Knowledge” on page 34, it’s a sign this was written to train technicians, not to fill a PDF quota. If you’re serious about diagnosing an Octavia EA 113 engine, you want this on your tablet in the bay. Compare it to something like Manuel d’Atelier Tracteurs Ferguson TEF20″>Manuel d’Atelier Tracteurs Ferguson TEF20 – that’s a different beast. For petrol engine diag, this SSP is the baseline.

For further reading, check the IKA Workshop Manual Motor TORNADO Errata Sheet”>IKA Workshop Manual Motor TORNADO Errata Sheet or the Lister Petter TS, TR, TX Workshop Manual Edition 12″>Lister Petter TS, TR, TX Workshop Manual Edition 12 for diesel applications. But for the Octavia 2.0L, stay here. And if you want to understand how modern engine management evolved, read the Automotive Industry Overview”>Automotive Industry Overview – the EA 113 is a key chapter. Also, Manual Transmission”>Manual Transmission might not apply here, but it’s worth knowing the drivetrain layout.

Q1: Can I use this manual to replace piston rings on my 2005 Octavia 2.0L?

Yes and no. It gives you the piston dimensions (82.5 mm bore, 92.8 mm stroke) and shows the assembly order, but it’s not a step-by-step removal procedure. You’ll need a full workshop manual for torque sequences and sealant specs. This SSP tells you what’s inside and why it’s designed that way – pair it with the factory service manual.

Q2: Where are the OBD II trouble code definitions?

Not in this manual. It covers the OBD II monitoring strategy and self-diagnosis flowcharts, but generic code definitions are elsewhere. For VW-specific codes, you need the proper diagnostic manual.

Access the Factory Manual now and get the OEM engineering data for the VW Octavia EA 113 series. 34 pages of exactly what the Stuttgart engineers wrote – no aftermarket shortcuts, no lost translations. Put it on your bench, read the system overview on page 6, and understand the 2.0L petrol engine before you turn a wrench.
