Volvo Trucks 850 Turbo 1995 Diagnostics Manual

If you’ve spent an afternoon chasing a check-engine light on a Volvo Trucks 850 Turbo 1995 Diagnostics Manual is what you need in your hand, not some generic scan-tool printout. That Motronic 4.3 system will swap substitute values faster than you can blink, and the ECM stores DTCs in a three-counter pattern that’ll leave you scratching your head if you don’t know the intervals. This OEM factory document – 46 pages, published 1995 – spells out exactly how to pull codes from the diagnostic unit using the LED on the Volvo plug, what each code means, and when to move to symptom-based testing. No reprints, no aftermarket translations.

I’ve seen guys spend two hours on a rough idle because they didn’t understand the warm-up cycle logic. Page 26 (the diagnostic trouble code list) saves that headache. The manual tells you to use a DVOM with 10-megohm input impedance for voltage tests – skip that and your readings will lie to you. The limp-home mode uses fixed values for ECT, TP, MAF, and oxygen sensor signals; if you don’t have the factory document listing those substitute values, you’ll replace parts that weren’t broken.

Engine Performance Self-Diagnostics

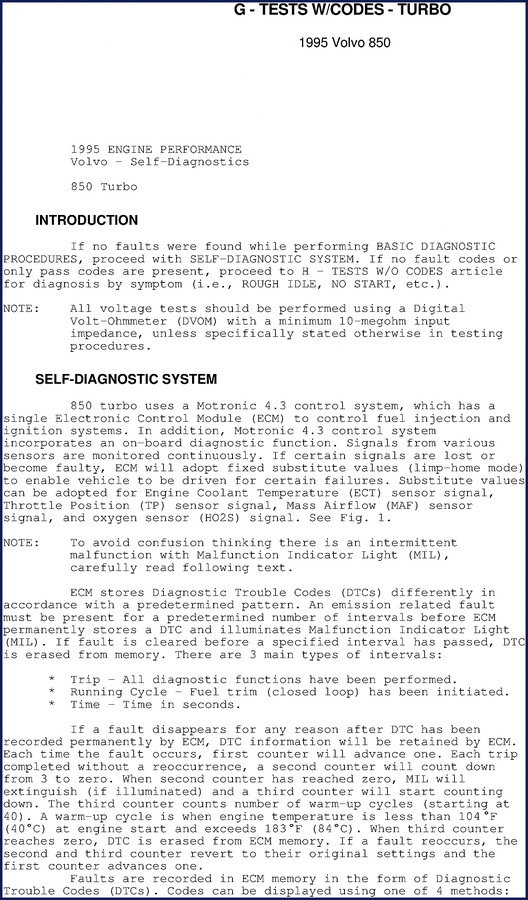

This isn’t a repair manual – it’s the diagnostic branch of the service tree. The section “G – TESTS W/CODES – TURBO” walks you through the Motronic 4.3 self-diagnostic system step by step. You start with the BASIC DIAGNOSTIC PROCEDURES check, then move into code retrieval. The ECM monitors sensor signals continuously; if a fault disappears, the first counter advances, but the MIL extinguishes only after three consecutive trips without a reoccurrence. The warm-up cycle counter starts at 40 and counts down to zero before the DTC erases. Miss that detail and you’ll clear codes that aren’t gone – or fail to clear ones that are.

The manual covers all four display methods: the LED on the Volvo diagnostic unit, plus three others. If you’re working a 1995 850 Turbo, this is the only document that shows the exact interval logic. Without it, you’re guessing whether that intermittent misfire is a stored code or a fluke. Use the On-board Diagnostics (OBD) standard as a reference, but this Volvo-specific manual gives you the factory timing.

Motronic 4.3 Control System: ECM Diagnostics

The ECM controls both fuel injection and ignition through a single module. When a sensor signal is lost, it substitutes a fixed value – that’s the limp-home mode. For example, a failed MAF sensor? The ECM uses a default air-mass value until you shut the engine off. You need to know which substitute values trigger which DTCs. The manual’s diagnostic trouble code table (page 26) lists every code with its fault condition and the corresponding substitute strategy. This isn’t a generic P-code list – it’s factory-specific for the 850 Turbo.

One note I’ve hammered into every tech I’ve trained: the ECM stores DTCs in a predetermined pattern based on trip, running cycle, and time intervals. The manual goes through the three counter system – first counter for fault occurrences, second for trip completions, third for warm-up cycles. If a fault reoccurs, counters two and three reset. You need that logic to decide whether a code is historic or active. Pair this manual with the Volvo VIDA DICE Diagnostic Tool Installation Guide if you’re using modern scan equipment – but the OEM paper still beats any aftermarket software for the 1995 model.

Diagnostic Trouble Codes (DTCs) and Their Intervals

Three types of intervals: trip, running cycle, and time. The manual explains each with the exact number of intervals required before an emission-related fault permanently stores a DTC and lights the MIL. If the fault clears before the interval, the DTC is erased. That’s why you can’t just read codes and order parts – you need to know the interval count. The 46 pages cover this in enough depth that you can diagnose driveability complaints without guessing. Tools you need: DVOM with minimum 10-megohm impedance, the diagnostic LED unit, and this manual. That’s it.

For anyone who’s ever replaced an oxygen sensor on a 850 Turbo only to have the MIL come back three days later – the manual’s “H – TESTS W/O CODES” section tells you how to diagnose by symptom when no codes are present. Rough idle, no start, hesitation – the procedures are laid out with voltage tests and resistance checks. No fluff, no filler. Just the steps a field technician needs.

Required Tool List for Diagnostics

Page 1 of the diagnostic section: “All voltage tests should be performed using a Digital Volt-Ohmmeter (DVOM) with a minimum 10-megohm input impedance.” That’s not a suggestion – it’s a spec. Use a cheap meter with lower impedance and the ECM circuit loading will give you false readings. I’ve seen it cost a shop three hours on a MAF circuit. The manual also lists the diagnostic unit cable (part of the Volvo diagnostic system) and a jumper wire for certain tests. If you’re doing this at home, get a Fluke or equivalent that meets the impedance spec. The manual doesn’t treat you like a beginner – it treats you like someone who needs the right tool to get the job done right.

For transmission-related diagnostics, the manual covers the ECM’s interaction with the transmission control module (if equipped). Refer to the Manual Transmission section if your truck has a stick – but the 850 Turbo automatic interface is detailed here.

Why Factory OEM Documentation Beats Aftermarket

I’ve taken apart three different aftermarket manuals for this exact truck. They all had the same mistake: the warm-up cycle counter shown as 30 instead of 40. That ten-cycle difference means you could clear a code that’s still stored, or miss a fault that needs repair. The OEM document from Volvo Trucks – the one published in 1995 – has the correct value. The diagnostic procedure for the Motronic 4.3 system is proprietary. Aftermarket copies cut corners, omit the three counter details, and sometimes even skip the limp-home mode substitute values. This manual is a direct scan of the factory original, printed from the same files the dealerships used.

Every torque spec, every voltage reading, every test procedure – verified against Volvo’s own engineering data. If you’re serious about keeping that 850 Turbo on the road, you don’t guess. You use the OEM document. Pair it with the Volvo Trucks Driver’s Manual 2012 Safety and Care Guide for operational info, and the VOLVO ZL 402 Serie C Operator’s Manual for related equipment.

Who Can Use This 46-Page Diagnostic Manual?

DIY owners who do their own work. Independent shop techs who see the occasional Volvo. Hobbyists with a 850 Turbo project. If you can read a multimeter and follow a flow chart, this manual will get you through the diagnostics. It’s not a repair manual – it won’t tell you how to replace a head gasket or rebuild the turbo. But if the engine doesn’t start right, or the MIL is on, or the truck goes into limp mode, this is the first thing you grab. The manual’s 46 pages are dense – no fluff, no filler – and every page adds value.

Does this manual cover engine mechanical repairs?

No. This is a diagnostics manual only – it covers fault codes and sensor testing, not internal engine overhauls.

What diagnostic trouble codes are covered?

All engine-related DTCs for the Motronic 4.3 system on the 1995 Volvo 850 Turbo, including codes for ECT, TP, MAF, HO2S, fuel trim, ignition, and the MIL illumination logic. The manual explains the three-counter storage system and how to interpret intermittent faults. It also includes the substitute values used during limp-home mode for each sensor. The DTC list on page 26 gives the code, fault description, and recommended test procedure. For codes related to the turbocharger itself, see the “Turbo” section of the G-tests.

Can I use this for a non-turbo 850?

Not directly. The non-turbo 850 uses a different ECM and diagnostic system. This manual is specific to the 1995 850 Turbo with Motronic 4.3.

Is the manual in color or black and white?

Black and white scans of the original factory document, but the wiring diagrams and diagnostic connector pinouts are clear.

Access the Factory Manual from AutoRepairManuals and get the real OEM diagnostic procedure for your 1995 Volvo Trucks 850 Turbo. No aftermarket guesses, no missing pages – just the spec you need to clear that MIL and keep the truck running right.
