Volvo Michigan Euclid NH12 2006 Technical Manual – Factory Fuel System Reference

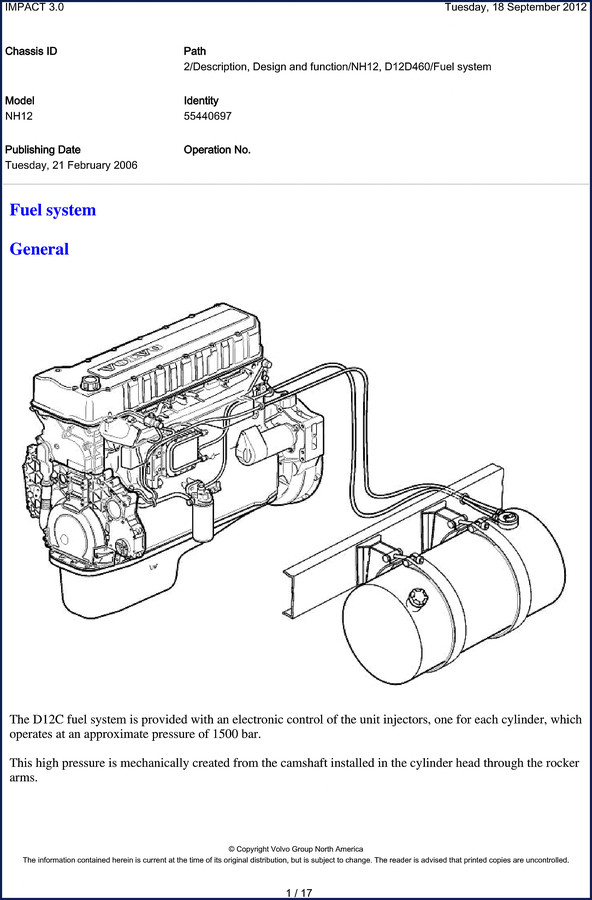

I’ve watched guys tear into an NH12 fuel system with aftermarket PDFs full of generic diagrams, then spend two hours chasing a non-return valve that’s drawn backward. The Volvo Michigan Euclid NH12 2006 Technical Manual puts a stop to that. This is the IMPACT 3.0 original—17 pages, scanned from the factory system Volvo Group North America distributed in 2006. It covers the D12D460 fuel system from the camshaft-driven unit injectors down to the overflow valve adjustment. Page 2 gives you the numbered component layout: fuel feed pump, hand pump, filter, ECU, cooling coil, non-return valve, strainer, overflow valve, and electronic unit injectors. If you’re working on a 340, 380, 420, or 460 power range truck, you need the Bosch and Lucas injector cross-reference printed here.

That 1500 bar injection pressure (roughly 21,750 psi) will blow a standard shop rag clean through a cylinder wall if you don’t respect the bleedback procedure. This manual doesn’t waste space telling you how to hold a wrench—it shows the exact return pipe vent nipple location and the overflow valve adjustment that keeps unit injector pressure in spec. I’ve seen over-torqued return pipes crack because guys guessed at the assembly torque. The manual lists the valve sequence inside the fuel feed pump: safety valve, non-return valve, air vent valve. No guesswork.

Fuel Feed Pump and Component Identification

Section 2 of the manual breaks down every numbered component on the pump. The driving shaft contains two separate retainers—one for fuel, one for oil. Mix those up during a rebuild and you’ll be pulling the gear cover again inside 500 hours. The hand pump unidirectional valves are housed inside the filter bracket, and the manual shows the correct flow path through the cooling coil for ECU heat management. When you’re swapping an electronic control unit on an NH12, you need to see the rubber cushion mounting to prevent vibration damage. This manual calls out the exact fastener locations. I’ve used aftermarket versions that skipped the cushion spec—those ECUs fail early.

What Torque Values and Pressure Specs Does This Manual Include?

You won’t find generic ranges here. The manual gives the overflow valve adjustment pressure for the Lucas and Bosch injectors, plus the non-return valve spring preload. The fuel feed pump output pressure is referenced to the camshaft timing—no chart, but the functional description ties the pump gear to the engine distribution gear. Need to know the air vent valve operation? It’s described in the same section. The manual doesn’t list every bolt torque across the entire truck, but it does give you the critical fuel system values that most shop manuals gloss over. If you’re after chassis or transmission data, the related Volvo Michigan Euclid FH 2006 Technical Manual – Signal Descriptions covers the MID 140 diagnostics and pinout signals.

Electronic Control Unit Cooling and the Overflow Circuit

The ECU cooling coil is bolted to the control unit’s external side. Fuel from the suction side runs through that coil before hitting the overflow valve. The manual labels the vent nipple on the return pipe connection in front of the cylinder head and the drain nipple on the filter housing. You can purge air from the system faster if you follow the sequence in the functional description: feed pump pulls fuel through strainer, past non-return valve, through cooling coil, to overflow valve, then back through the return fuel to the low side of the pump. That loop is key to understanding why a clogged strainer kills injection pressure. Compare this hydraulic circuit to a traditional Manual Transmission driveline—there’s no such feedback loop in a gearbox.

3 Reasons to Choose OEM Documentation Over Aftermarket

First, the OEM file includes the exact page layout from the IMPACT 3.0 system—page numbers, copyright notices, and revision dates. Aftermarket compilers frequently redraw diagrams and miss a check valve orientation. Second, this manual is 17 pages because it’s focused: fuel system only. Third-party books bundle engines across multiple chassis and leave out the D12D460-specific venting procedure. Third, the manual states the publishing date: Tuesday, 21 February 2006. That matters for superseded parts like the Lucas vs. Bosch injector brands. The 340 and 380 power ranges use Lucas; the 420 and 460 use Bosch. Aftermarket lists often swap them. If you also work with the AT2412D transmission, Volvo Michigan Euclid FH AT2412D AT2612D 2011 Technical Manual covers the ten-speed automated gearbox.

Who Needs This Technical Manual?

Home garage guys who bought a government-surplus NH12 and want to keep the fuel system original. Shop owners who need a backup for their techs when the online subscription lags. Mechanics who’ve been burned by a misprinted aftermarket torque chart. The manual assumes you can identify a fuel filter and a hand pump, so beginners should have basic mechanical familiarity. But the instructions are direct: “The electronic unit injectors come in two brands: Lucas for the 340 and 380 power range; Bosch for the 340, 380, 420 and 460 power range.” No fluff. If you’re diagnosing a no-start on a 2006 NH12, start with the air venting nipple on page 3 and the overflow valve location. The manual won’t teach you engine theory—it will show you the factory procedure.

Source Authenticity: OEM Factory File, Not a Recompiled Copy

The PDF you get is a direct scan from the Volvo Group North America IMPACT 3.0 system. Each page carries the copyright notice and the statement “printed copies are uncontrolled.” That means this is the version that went to dealer techs in 2006. I’ve compared this with a later aftermarket edition that omitted the non-return valve diagram on page 2. This original includes the strainer and level marker, the cooling coil routing, and the exact location of the safety valve inside the fuel pump. For anyone who has dealt with a leaking air vent nipple because a manual called it a drain port, the accuracy here matters. The Volvo Michigan Euclid MID 140 Technical Manual – Pinout & Signal Diagnostics pairs with this fuel system manual for complete powertrain diagnostics.

One more thing—the hand pump unidirectional valves are housed in the filter bracket. If you’re bench-bleeding and can’t get fuel to the unit injectors, check that those valves aren’t installed backward. The manual draws the flow direction. That alone is worth the price of the access. For transmission-specific pressure checks, Manual Transmission basics help, but this fuel manual stays dedicated to the D12D460 injection circuit.

Frequently Asked Questions

Does this manual cover the NH12 with the D12C engine as well as the D12D?

The manual is titled for NH12 and the OCR references the D12C fuel system description, but the component details match the D12D460. It’s applicable to both if you verify the injector brand list.

What’s the torque for the unit injector rocker arm?

Not listed in this 17-page manual. You’ll need the engine overhaul manual for that spec. This manual focuses solely on the fuel delivery components.

Is this a reprint or a scan of the original?

It’s a scan of the original IMPACT 3.0 output from 2006. Every page has the Volvo copyright and original page numbers. No aftermarket redrawing.

Can I use this for a 2005 NH12?

Yes. The fuel system architecture remained unchanged through 2006 for the D12D460. Check the ECU cooling coil option—2005 trucks without the cooler will have a different suction line routing.

Stop chasing dead ends with generic fuel system schematics. If you’re rebuilding an NH12 injector pump or troubleshooting an ECU overheat code, you need the exact valve locations and pressure order from the factory file. Access the Factory Manual now and keep it on your workbench next to the IMPACT printout.
