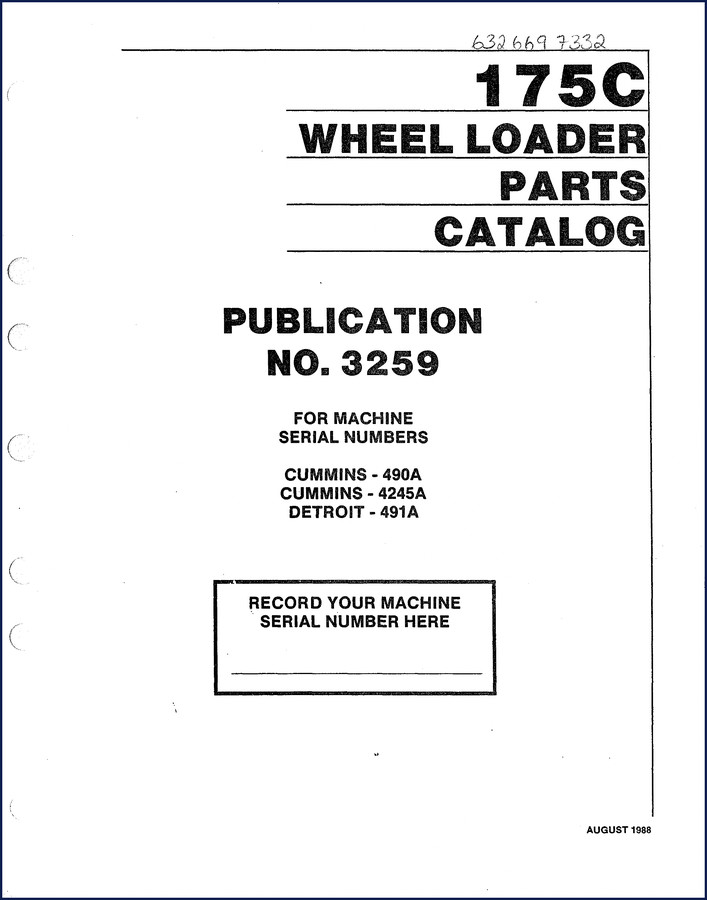

Volvo Michigan Euclid 175C, 325 1988 Parts Catalog

I’ve been twisting wrenches since before most of you were born, and I can tell you one thing straight: guessing part numbers on a machine this size will cost you a full shift and a half. That’s why this Volvo Michigan Euclid 175C, 325 1988 Parts Catalog sits on my bench. It’s the only book that tells you exactly which clip, hose, or hydraulic fitting goes where, without the aftermarket garbage that leaves you holding a wrong-size bracket at closing time.

Every page of this 680-page catalog comes straight from the factory floor in 1988. It covers serial number ranges for Cummins 490A, Cummins 4245A, and Detroit 491A engines. You get exploded views, part numbers in imperial inches, and metric conversions where needed. The clip chart alone on page 3 saves you a trip to the dealer — it lists insulated double clips by part number, inside diameter, and material thickness. If you’ve ever swapped a hydraulic line and ended up with a 5/8” clamp on a 9/16” port, you know exactly why this matters.

Parts Catalog Organization: Group Numbers and More

This catalog groups every component alphabetically by group number — no flipping through endless sections hoping to find a filter. Need a wiring clip? Check group C01. Fuel lines? Group C01-2 and C01-3. The index on the first few pages lays out exactly where each assembly lives. You don’t waste time hunting. The factory printed this thing for technicians who bill by the hour, not for hobbyists who can afford to chase dead ends.

What This Catalog Covers: 175C and 325 Models

Both the Volvo Michigan Euclid 175C and the 325 wheel loader are documented here. Serial numbers are recorded on page 1. If your machine falls within the listed range — and most North American units do — you’re covered. The catalog uses the same part numbers that Volvo BM used when they built these loaders. Don’t expect generic cross-references. Every nut, bolt, and O-ring has a factory drawing next to it. Compare that to the aftermarket junk that gives you a picture of a vaguely similar part and a shrug.

Why OEM Parts Numbers Matter

I watched a shop foreman install a fuel injector from a recycled catalog last month. The engine ran rough for two hours before the sleeve cracked. That injector looked right, but the thread pitch was off by half a millimeter. This catalog gives you the exact part number, not a “compatible with” guess. You order once, it fits, and you move on. That’s the difference between a paying customer and a comeback that eats your weekend.

3 Reasons to Avoid Aftermarket Parts Catalogs

1. They misquote thread sizes. I’ve seen 1/2-13 called out where the manual requires 12mm-1.75. That bolt strips before you hit torque.
2. They skip the clip and washer diagrams. The factory book shows you where every tiny retainer goes. Aftermarket flat-out omits them.
3. They use fuzzy scans. Try reading a part number on a faded photocopy at 6 PM on a Friday. This 680-page original print is crisp and legible.

If you want to keep your 325 running without chasing obsolete numbers, stick with the source.

Use the Clip Chart on Page 3

Page 3 is one of the most-used pages in my shop. It’s a full table of insulated double clips, cross-referenced by part number (31H8, 31H12, through 31H46), inside diameter in inches and millimeters, and thickness. When a hose bundle rattles loose, you flip to this chart, grab the right clip, and you’re done in five minutes. No measuring with a tape and guessing. This is the kind of detail that makes a factory parts catalog worth its weight in labor hours saved.

Frequently Asked Questions

Can I use this Parts Catalog for a 175C with an aftermarket reman engine?

The catalog lists parts based on the original engine serial numbers. If your reman engine deviates from the listed specifications, those parts may not fit. Always verify the casting numbers or call a dealer.

Do I need a separate service manual for repairs?

Yes. This is a parts catalog only. You need the factory service manual for torque specs and assembly procedures.
