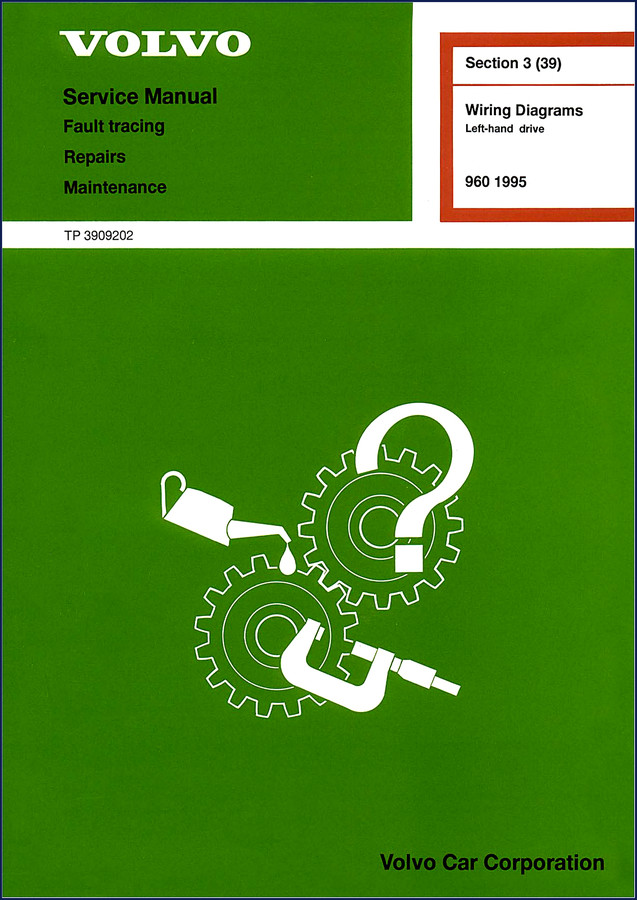

Volvo BM Michigan 960 1995 Wiring Diagram

If you’re chasing a ghost in the harness on a Volvo BM Michigan 960 1995 Wiring Diagram – and I’ve seen plenty of those – you need the actual OEM schematic, not some aftermarket re-draw that swaps pinouts. This is the factory PDF, 159 pages, straight from Volvo Tech Info. I’ve used these diagrams to track down a no-start on a 960 that had three different aftermarket alarm systems spliced in. Without the original branching points and ground locations, you’ll be chasing your tail. This manual gives you the exact circuits Volvo engineered.

7 Systems Covered – From Power Supply to Diagnostics

Group 32 (Power supply) shows you the main feed from the battery through the ignition switch. Group 33 covers the starting system – critical when you’re diagnosing a crank/no-crank. Need to verify the engine coolant fan circuit? That’s Group 26. Cruise control? Group 27. The manual breaks down every system with its own section, so you don’t have to flip through 150 pages to find the horn circuit (Group 36, 3:8). Each system includes the connector views and wire colors as they left the factory. I’ve seen shops burn an hour on a bad ground that any tech could have found in five minutes with these diagrams – page 47 lists all four ground connection points (31/1 through 31/4).

Branching Points and Terminal Blocks – Where Most Guys Get Lost

The branching points section (page 15) diagrams every splice in the harness. 33/1 through 33/6 – those are the junction points where multiple circuits share a connection. If you’ve got a intermittent tail light issue and you’re pulling your hair out, check branching point 33/4. The manual also shows the terminal block in the central relay module (in-car) and the terminal blocks in the relay/fusebox in the engine compartment (page 45). These are the spots where corrosion and loose pins kill circuits. I make my junior techs trace every circuit back to a terminal block before they replace a single component.

Does This Manual Cover the SRS System?

Yes – but with a warning. The first two pages of the manual are a safety alert about the Supplemental Restraint System (SRS). The crash sensor is located under the left front seat, and the manual tells you never to disconnect it. If you’re working on a car with SRS, you need to read those pages before you touch the steering column. The contact reel can be damaged if you turn the steering wheel more than three full turns. That’s the kind of detail you get from a factory document – not from a generic wiring book. The manual covers modifications up to August 1994; later changes require service bulletins.

OEM vs Aftermarket – Why This 1995 PDF Is the Only One I Trust

I’ve seen aftermarket wiring diagrams that combine two different model years on one page to save paper. That’s how you get a starter wire crossed with a fan relay. This manual is a direct scan of the Volvo Car Corporation publication TP 3909202. Every wire color, every connector pin, every ground point is factory-sourced. The paper version has been out of print for years, so this digital copy is the only way to get the original specification without paying a dealer $150 for a photocopy. For related models, check the Volvo 960 Service Manual Wiring Diagrams 1994″>1994 edition or the Volvo 960 1996 Wiring Diagrams Service Manual – Section: Parking Lights, Tail L”>1996 update. If you need the larger construction series, the Volvo BM Michigan 940 2004 Wiring Diagram OEM Shop Manual”>Volvo BM Michigan 940 2004 diagram follows the same layout.

Audience Fit – Who Needs This Manual

You’re a shop owner who bills by the hour and can’t afford guesswork. Or a DIY owner who’s tired of paying dealer diagnostic fees. This manual is for anyone who needs to trace a wire on a 1995 Volvo 960 – the sedan or wagon with the inline-six. If you’re installing an aftermarket stereo, you’ll want the power supply group (Group 32) to find the correct switched 12V feed. If you’re troubleshooting a dead cruise control, Group 27 gives you the vacuum pump circuit and the brake switch inputs. I’ve used these diagrams to fix a parasitic draw that turned out to be a stuck relay in the central relay module – found it in 20 minutes because the manual shows the exact pin numbers. It’s also useful for Automotive Wiring”>basic automotive wiring education – you can learn how Volvo handles ground distribution.

Source Validity – Factory Document, Not a Reprint

This is a direct OEM file, part number TP 3909202, distributed by Volvo Car Corporation. It’s 159 pages of original wiring diagrams, not a scan of a third-party copy. The Automotive Industry Overview“>automotive industry has moved to digital service information, but this manual remains the definitive source for 1995 models. Every time I’ve cross-checked a spec from this PDF against a dealer’s printout, they’ve matched. That’s why I keep it on my shop tablet.

Is this the complete factory wiring diagram for the 1995 Volvo 960?

Yes. All 159 pages from the original Volho set, covering left-hand drive models. Includes power distribution, ignition switch, all body electrical groups, and diagnostics.

Can I use this manual to retrofit accessories like a trailer harness?

You can. The manual shows the factory power supply and branch points, so you can tap into the correct wire gauge and fuse rating. But remember: any modification voids factory SRS safety zones around the crash sensor – read the SRS warning first.

What about the engine control module (ECM) wiring?

The ECM wiring is covered in the Group 35 and Group 36 sections. The beam width control, stop lights, backup lights, and diagnostics are all there. No separate fuel injection schematic is included – this manual focuses on body and chassis electrical.

Does it include connector views?

Yes. Terminal block diagrams and ground point locations are shown with physical pin layouts. Page 43 shows the central relay module terminals. Page 45 shows the engine compartment relay/fusebox terminals.

Access the Factory Manual. That’s the only way to get the exact circuit paths and torque-free electrical specs from Volvo’s own engineers. Print the pages you need, laminate them, and keep them on the bench. You’ll save more in diagnostic time than the manual costs on your first repair.
