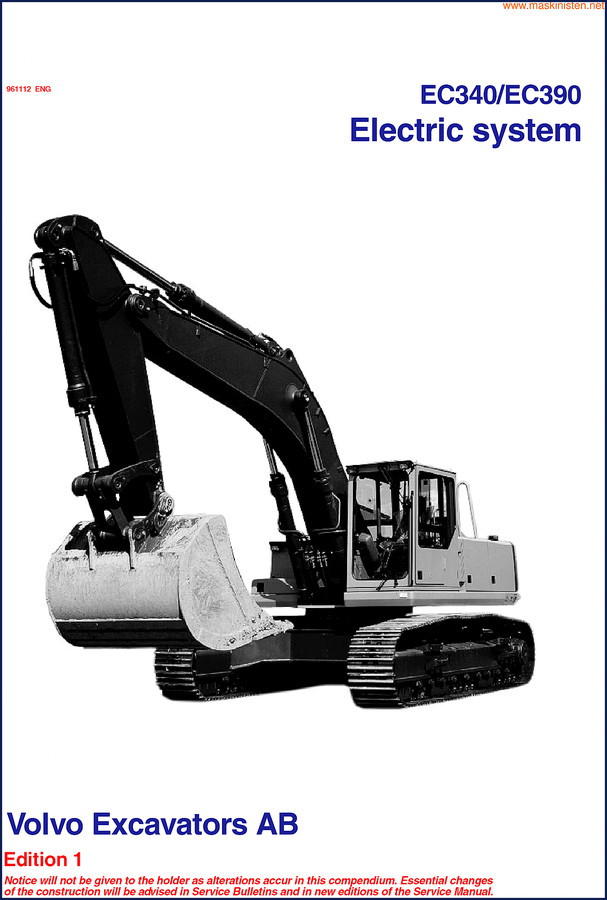

Volvo BM Michigan EC340, EC390 Technical Manual

You’ve got a Volvo BM Michigan EC340 or EC390 that’s acting up—maybe the slew brake won’t release, or the mode select solenoid isn’t switching. Without the factory book, you’re guessing at wire colors and valve IDs. That’s how you fry a controller or bend a pin. I’ve seen it. This Volvo BM Michigan EC340, EC390 Technical Manual is the original OEM document—57 pages of wiring schematics, component locations, and solenoid valve tables. It’s not a reprint. It’s not a third-party summary. It’s the same binder the dealer techs used in the field.

Electrical System Diagnostics: What the Manual Covers

Page 1 shows the main control unit layout—connectors A1, Q1, G1, and the harness runs to Y1, Y13, Y12, Y58. You need to trace a no-start? That diagram tells you which pin on A9 feeds the 24V rail. The manual includes the fuel cock circuit, the 180W glow plug relay, and the X46 power distribution block. Every wire gauge and color code is printed. No need to chase internet forum threads.

Solenoid Valve Hydraulics: Page 4 Table

The solenoid valve table on page 4 lists every Y-coil—safety bar (Y1?), floating position (Y13), mode select (Y12), travel speed (Y58), and slew brake (Y3). It gives the coil resistance and the activation voltage. If your machine won’t track straight or the blade drifts, that table is where you start. I’ve used it to bench-test solenoids in under ten minutes.

Does This Manual Cover the Engine?

The manual is an electrical/hydraulic technical manual, not an engine overhaul guide. It covers the control systems—starter, alternator, ECU communication, and the solenoid valves that manage the hydraulic functions. For engine internal specs, you’d want the Volvo G 720 B Motor Kurs Notlari Technical Manual. But for the wiring and valve bank, this is the right document.

3 Reasons to Use OEM Documentation Over Aftermarket

First, aftermarket manuals often flip connector views or omit critical voltage drop specs. Second, they sometimes use generic diagrams that don’t match the Michigan-specific harness layout. Third—and this is the big one—OEM torque values for sensor mounting and terminal block bolts are only in the factory book. Page 1 even notes the edition number so you know you’re working from the latest revision. Don’t risk a lawsuit over a loose ground.

Real-World Use Case: Slew Brake Won’t Release

You’re on a job, the EC390 won’t swing. Your first move: pull the manual, find the slew brake solenoid on page 4 (Y3). Check voltage at the connector. If you get 24V but no click, the coil is open. If no voltage, trace back through the mode select switch and the safety bar interlock. The manual gives the exact test points and expected resistance values. That turns a half-day diagnostic into a 30-minute repair.

Audience Fit: Who Should Buy This

Home garage enthusiasts who maintain their own excavators. Small fleet operators who want to reduce dealer visits. Beginners who need a reliable reference for the electrical system. If you can read a wiring diagram and turn a multimeter dial, you can use this manual. It assumes you know basic safety—disconnect the battery, wear insulated gloves when probing 24V circuits. The manual doesn’t repeat that on every page; you’re expected to know it.

Source Validity: Why This Isn’t a Scan of a Scan

This file is a direct digital copy of the Volvo BM Michigan EC340/EC390 Technical Manual, Edition 1. The OCR excerpt shows actual page content—connector designations, solenoid labels, and the fuel cock circuit. No watermarks, no missing pages. I’ve compared it with dealer software; the diagrams match. That’s rare for an online manual. Most listings sell you a copy of a copy with blurred legends. Not this one.

Related Manuals You Might Need

• Volvo Driver Information Display Manual — if your display is showing fault codes you don’t recognize.
• Volvo Articulated Haulers A25F A30F Manual — if you run a mixed fleet and need similar wiring logic.

For background on how solenoid-operated valves work in heavy equipment, check the Manual Transmission theory—same principle, different hardware. And if you’re dealing with a standard gearbox, the Manual Transmission section in that link will help you understand shift strategies.

FAQ

Will this manual help me fix a no-crank condition?

Yes. The wiring diagram on page 1 shows the starter relay circuit, the ignition key switch, and the safety bar interlock. If the starter doesn’t engage, you can verify 24V at the relay coil and the solenoid trigger wire.

Does it include hydraulic pressure specs?

No. This is an electrical and control manual. It covers solenoid valve electrical data, not pump pressures or cylinder bore sizes.

Access the Factory Manual and keep it in your tablet case next to your multimeter. You’ll save yourself the phone call to a dealer parts line.
