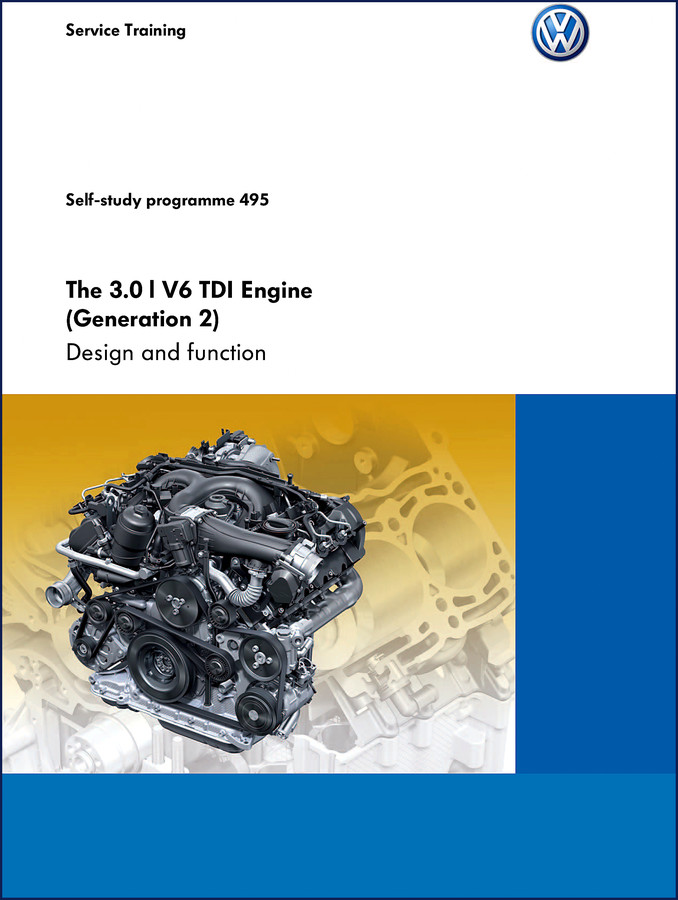

Volkswagen V6 TDI Training Manual – Gen 2 Design and Function

If you are tearing down a 3.0L V6 TDI from a 2011+ Volkswagen or Audi product, you need the factory training manual – not some aftermarket rewrite that leaves out half the thermal management details. This Volkswagen V6 TDI Training Manual (self-study programme 495) is 48 pages of straight-from-Ingolstadt content. It covers the Generation 2 engine in both 150 kW and 180 kW versions. No fluff, no third-party guessing – just the chain routing, the piezo injector layout, and the cooling system that uses a thermostat-controlled bypass channel to warm the oil faster.

Engine Mechanics: Crankshaft Drive and Chain Drive

The manual opens the Engine Mechanics chapter with the crankshaft drive – specifically the new chain layout that differs from the Gen 1. The chain drive section shows you how the timing chains route around the crankshaft sprockets, the balance shaft drive, and the oil pump. If you skip the factory diagram and try to use a generic chain diagram, you will end up with the cam timing off by a tooth. Page 6 onward shows the exact alignment marks. I have seen shop foremen waste a Saturday because they trusted a non-OEM source. Do not be that guy.

Cooling System and Innovative Thermal Management

The cooling system in the Gen 2 V6 TDI is not your father’s thermostat setup. There is an innovative thermal management system that uses a map-controlled thermostat and an engine oil cooler with a bypass channel. The manual walks through the coolant flow path, the charge air cooling circuit (intercooler routing), and how the system prioritizes warming the cylinder head before the block on cold starts. If you are chasing a coolant temp fluctuation code, this chapter saves you from swapping parts blind. The cooling system section is only a few pages but packed with flow diagrams that a service manual often skips.

Common Rail Injection at 2,000 Bar

Both engine variants use a Bosch common rail system with piezo injectors capable of 2,000 bar rail pressure. The Fuel System and Common Rail Fuel Injection System sections detail the high-pressure pump, rail pressure sensor, and injector actuation. This is not a general theory handout – it shows the Gen 2 differences: demand-controlled in-tank pump, new injector nozzle geometry, and the 180 kW engine’s turbo from Honeywell GT 2256. For real diagnostics, you still need the VW Self-study Programme 351 Common Rail Fuel Injection for deeper injection timing, but this training manual gives you the architecture overview.

Service: Special Tools Listed

The Service chapter on page 43 lists the special tools required for chain tensioning, cylinder head removal, and locking the crankshaft. No tool number is invented here – these are VAG part numbers you can order. If you are a pro shop, you already own some of them. If you are a home garage guy tackling a chain replacement, you need to know exactly which puller and locking pin to buy before you start. The manual also includes a Test Yourself section (page 45) that quizzes you on valve timing and injection pressure. That is not a bad idea to run through before you button up the engine.

Why Factory Training Manual Beats Aftermarket

Aftermarket manuals for the V6 TDI tend to combine the Gen 1 and Gen 2 data into one confused mess. They often omit the Innovative Thermal Management details or give the wrong crankshaft pulley torque. This Volkswagen training manual was written by the engineers who designed the engine. It does not get updated with TSBs, but that is why you pair it with a current service manual. For the Gen 2 V6 TDI, this is the closest thing to having a VW instructor standing over your shoulder. Check also the Volkswagen 2.3-ltr. V5 Training Manual – OEM Factory Specs if you work on older V5 engines, or the Volkswagen Passat 2005 Training Manual – Technical Overview for that platform.

External context: The Automotive Industry Overview on diesel technology evolution helps understand why VW moved to 2,000 bar injection. For transmission pairing info on these engines, you might look at Manual Transmission options, though the training manual sticks to the engine itself.

Does this manual cover both the 150 kW and 180 kW versions?

Yes. The introduction (page 4 and 5) gives separate technical data for each, including bore (83 mm), stroke (91.4 mm), compression ratio 16.8:1, and a torque/output diagram.

Why is this training manual different from a repair manual?

A repair manual gives step-by-step removal and installation instructions, torque specs, and diagnostic trouble trees. This training manual explains the design and function of the engine – how the chain drive is laid out, how the cooling system routes, what the piezo injectors do at 2,000 bar. It is meant to be read before you start the repair so you understand why the engineer chose that design. For actual repair procedures you need a workshop manual, but this training manual will cut your diagnostic time because you won’t be guessing how the system works. It also includes a “Test Yourself” section (page 45) to reinforce the concepts. A big difference: the training manual does not list torque values for every bolt – those are in the service literature. However, if you want to understand why the crankshaft is offset 90° and how the cylinder head cooling jacket flows, this is the document.

Access the Factory Manual and get the VW approved explanation of the Gen 2 V6 TDI before you pull the engine. Your time and your torque wrench will thank you.
