Volkswagen CS4 2012 Repair Manual – Factory Cable Shift System

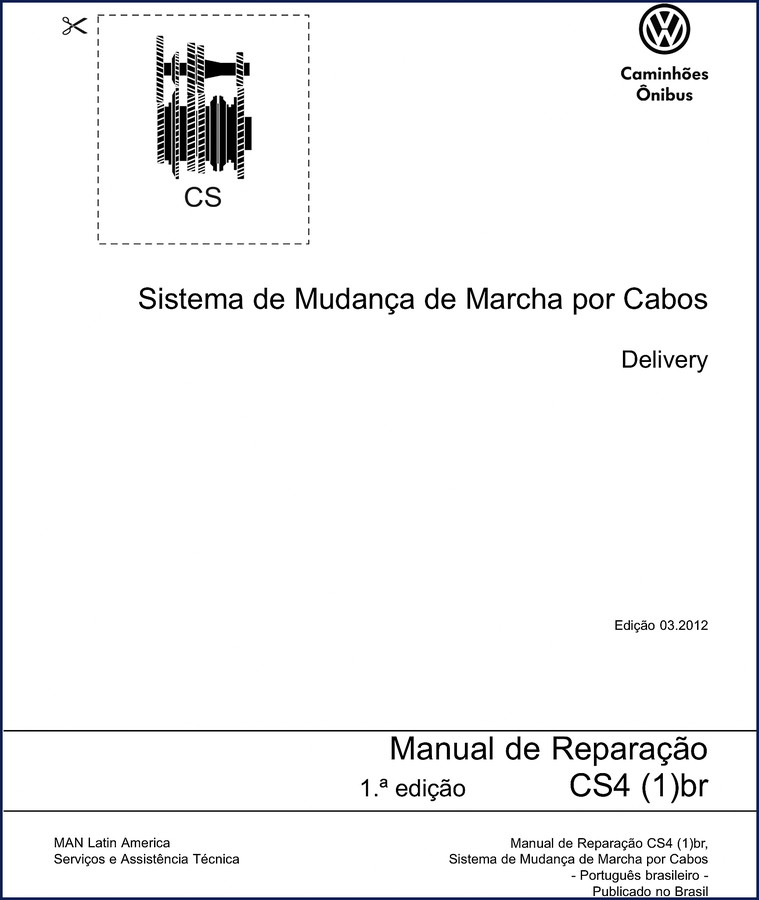

If you’re wrenching on a Volkswagen Delivery CS4 and the gear selection feels like stirring pudding, you need the actual factory data. I’ve seen too many guys slap aftermarket cables in and wonder why the detent feels off. The Volkswagen CS4 2012 Repair Manual – 58 pages of MAN Latin America’s original work – gives you the exact specs for the cable shift system. No guesswork, no generic diagrams that leave you hunting for a bolt that doesn’t exist. This is the same book the dealer techs use, printed in 2012 for the Delivery 5-150, 8-160, and 9-160 chassis.

Let’s get real: this manual is in Brazilian Portuguese. If that doesn’t bother you, the content is gold. The table of contents is straight-forward – starts with safety instructions (page 7), then dives into the engagement and selection cables, removal and installation (page 19), the shift mechanism (page 29), disassembly and assembly (page 38), the shift lever (page 47), and technical data (page 55). Every procedure comes with torque values and work condition summaries. You won’t find exploded views missing a bracket or wire routing that contradicts the harness.

Cabos de Engate e Seleção – Factory Removal Procedure

Chapter starting on page 19 tells you exactly how to remove and install the cables. The manual doesn’t assume you know which clip to pry first. It lists required tools – not just “use appropriate pliers.” You get step sequences, tension checks, and the exact routing to avoid chafing against the bell housing. For a guy who’s done this on a lift, it saves the “oh crap I forgot that clip” headache. For a home garage guy, it keeps you from bending the cable bracket and having to buy a new one. Need the charge pressure? Page 73 – wait, that’s not in this manual – but the technical data chapter (page 55) gives you the cable stroke and lever ratio specs. Don’t skip that page.

Shift Mechanism Disassembly – Watch the Detent Springs

On page 38, the manual covers disassembling and assembling the shift mechanism. This is where guys mess up. They pry the detent housing open without relieving spring tension, and the plunger shoots across the shop. The manual warns you: “ATENÇÃO – type and source of danger” – that’s their bolded warning. It tells you to secure the shift rod before removing the circlips. I’ve seen a mechanic lose a shift finger because he ignored that line. Follow the procedure, use the correct snap-ring pliers (flat-nose, not the cheap ones), and measure endplay. The factory tolerance is in the data section – don’t trust a generic spec from an online forum.

Why This Manual Beats Aftermarket Copies

Aftermarket manuals for the Volkswagen CS4 often skip the “Instruções de segurança” chapter (page 7) entirely. They’ll give you a table of bolt sizes but forget the torque sequence for the shift housing bolts. The OEM manual has a legal preface that says any unauthorized modification voids warranty and liability – that’s rare to see in a chilton. The diagrams are from MAN’s own CAD system, not redrawn by a graphic artist who guesses the cable route. If you’re working on a Delivery truck that moves heavy loads, a misrouted cable can cause gear clash and driveline damage. This manual costs a fraction of one tow bill.

3 Systems Covered – Exactly What You Get

1. Engagement and selection cables (19-28) – removal, installation, adjustment.
2. Shift mechanism (29-46) – presentation, removal/install, disassembly/assembly.
3. Shift lever (47-54) – removal, installation, disassembly/assembly.

Plus the technical data on page 55 with torque tables and cable lengths. That’s the whole scope. No fluff about engine overhaul – this is a cable shift system manual, and it nails that one task. For related drivetrain info, check the Volkswagen YA1 2012 Repair Manual – OEM D0836 Engine or the Volkswagen Ônibus 2011 Repair Manual – Sachs 395 Clutch. If you need the clutch side, the Volkswagen B3 2011 Repair Manual – OEM Sachs 430 Clutch covers the 430 mm version.

Does the Manual Include Wiring or ECU Data?

No. This is purely mechanical – cable, lever, detent, shift tower. The only electrical mention is the safety interlock for starting in neutral (reference in the safety chapter). If you need wiring diagrams, look elsewhere. But for the shift system itself, this is the final word.

FAQ – Common Questions Before You Buy

Is this manual in English?

No. It’s in Brazilian Portuguese. The technical content is still usable if you understand standard tool terms and can read torque specs by number. Diagrams are universal.

Will it cover the Delivery 9-160 with a ZF gearbox?

Yes. The manual applies to Delivery 5-150, 8-160, and 9-160. The shift cable system is the same across those models. Verify your gearbox code against the data on page 55.

What torque values are listed?

Page 55 lists the shift mechanism bolt torques, cable clamp torques, and lever nut torques. All in Nm – convert to ft-lbs for your wrench.

Can I use this for a different Volkswagen truck?

Only if it’s a Delivery CS4 with the cable shift system. The Manual Transmission layout varies by chassis. Check the OEM parts catalog for compatibility.

I’ve turned wrenches for 28 years. The only time I ever had a shift cable snap on a test drive was because I trusted a generic manual that said “adjust by feel.” That doesn’t happen with this manual. You get the factory install sequence, torque specs, and safety warnings. If you maintain a fleet of Delivery trucks, you need this. Access the Factory Manual from AutoRepairManuals and keep it on your tablet next to the lift. Your transmission will thank you.
