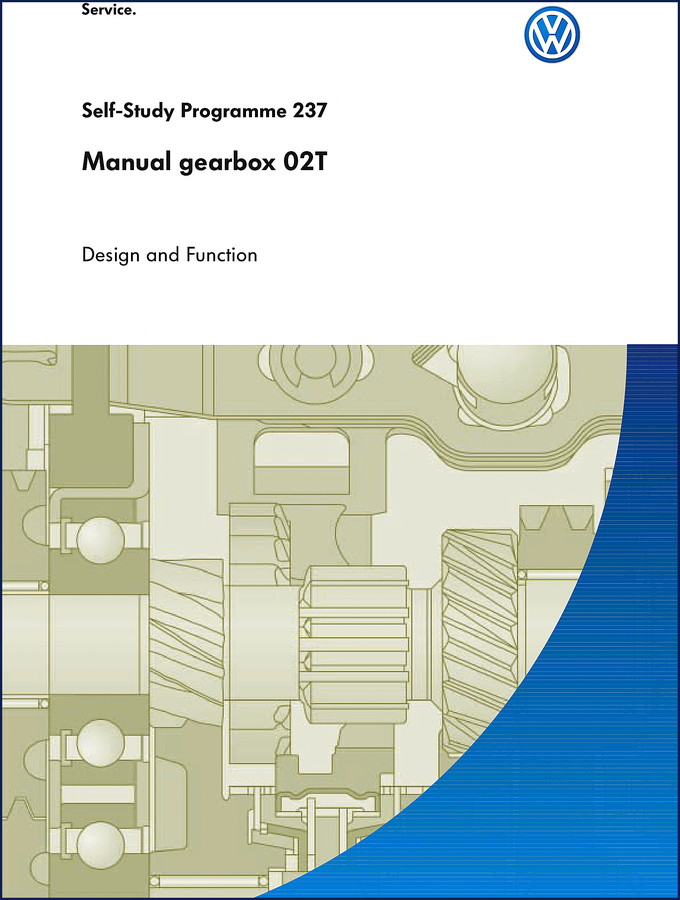

Volkswagen 02T Technical Manual – Factory Design and Function

You want to understand the Volkswagen 02T Technical Manual before you pull wrenches on that MQ200 gearbox? Smart move. This 32-page Self-Study Programme (SSP 237) is what Volkswagen issued to its own dealer techs – not a workshop manual with torque values and part numbers, they say that on page two. But if you skip the design basics and start tearing into a magnesium-housed 5- or 6-speed blind, you’re asking for broken selector forks or a misaligned bearing support. I’ve seen it happen. This manual arms you with the force paths, double synchroniser layout, and modular system breakdown so you don’t waste billable hours guessing.

What the 02T Manual Actually Covers

Starts with the modular system – clutch release lever module, selector shaft with cover, inner selector module with shift forks, and bearing support with pre-assembled shafts. Then hits the gearbox mechanicals on page 6: input shaft, output shaft, bearing support, double synchronisers, differential, and full force path. The selector mechanism section (page 16) walks outer and inner gear change, selection and shift movement, and reverse gear lock. Service notes on page 22, sensors on page 24, and a dedicated 6-speed version section on page 26 with modifications to the 5-speed design. Ends with a test-your-knowledge quiz. That’s 32 pages of concentrated factory knowledge – no filler.

Gearbox Mechanicals – Page 6 Breakdown

Page 6 opens with twin-shaft design using a magnesium housing that keeps weight under 200 Nm capacity. The force path illustration shows exactly how torque flows through input shaft, output shaft, and differential. The double synchroniser detail is what you need if you’re rebuilding a crunchy 3rd gear – most aftermarket PDFs gloss over the synchro ring taper angles. Factory drawings show the exact engagement sequence. If you’re swapping shafts, the bearing support section (grooved ball bearings pre-assembled) tells you what to check for endplay before you button it up.

Selector Mechanism: Outer and Inner

Outer selector cables and inner shift forks – the manual separates them clearly. Selection movement versus shift movement gets its own subsection on page 18-19. The reverse gear lock mechanism is a common failure point when the lockout tab wears. Without this manual you’d be chasing a phantom cable adjustment when the real problem is the detent spring inside the selector shaft module. The module assembly photo (page 4) shows the exact orientation of the angle piece for selector mechanism adjustment. You’ll want that when you’re reinstalling the selector shaft cover after a clutch job.

Service and Sensors – Pages 22-24

Service section is short but critical: it outlines the modular repair approach – replace complete modules rather than individual internal parts. That’s the factory directive for the MQ200. Sensors on page 24 cover the reversing light switch and any speed sensor fitted. Wiring pinouts? Not in this manual – remember, it’s a design and function guide. But knowing the sensor location and how it interacts with the selector shaft helps you diagnose intermittent reverse light failures. For full repair procedures you’ll need the corresponding workshop manual, but this gives you the map before you start digging.

6-Speed Version Modifications – Page 26

Page 26 details the 6-speed version: gearbox design changes from the 5-speed, modified force path, and different ratios. If you’re retrofitting a 6-speed into a car that came with a 5-speed, these two pages alone save you from ordering the wrong input shaft or differential. The force path illustration for 6-speed shows an additional gearset and revised bearing support. Also notes the final drive ratio options – crucial when matching to transfer cases or differentials in AWD applications. No torque specs here, but you’ll know exactly which parts differ.

Stick to Factory Data for Accurate Torque Specs

I’ve seen guys trust aftermarket PDFs that list M8 bolt torque at 18 lb-ft when the factory says 22 lb-ft – then wonder why the housing leaks. This manual doesn’t give you torque values, but it gives you the engineering context so you know where to find them in the official service literature. The modular system explanation (page 3) shows which bolts are single-use (the bearing support bolts) and which can be reused. That’s the kind of detail you don’t get from a random web copy. Compare with the Volkswagen 208 Technical Manual – Factory AC Fundamentals if you need auxiliary system integration. For full DSG coverage, the Volkswagen 02E Technical Manual – 5530-Page Factory Service Data is the heavy hitter. And for the same platform vehicles, the Volkswagen Golf, Jetta, GTI, Beetle 2004 Technical Manual – Factory Specs complements this transmission manual perfectly.

Frequently Asked Questions

Is this manual a step-by-step repair guide?

No. It’s a self-study programme – design and function only. Workshop manuals are separate.

Does it include torque specifications?

It does not list specific torque values. What it does provide is the assembly sequence and fastener type (e.g., the bearing support bolts are single-use stretch bolts). You use that knowledge alongside the official service manual to apply the correct 22 lb-ft torque for M8 bolts. Without understanding which bolts are critical, you’ll either under-torque and get leaks or over-torque and strip the magnesium housing – and that housing is not something you helicoil easily. The sensor section on page 24 also tells you the correct removal procedure so you don’t crack the plastic housing with a pry bar.

Can I use this to rebuild my 02T gearbox?

You can use it as a roadmap, but you’ll need a separate workshop manual for clearances, sealant specs, and torque values. The force path diagrams and double synchroniser cutaways are invaluable for understanding what goes where and why.

How many pages is the manual?

32 pages.

If you’re serious about working on the Volkswagen 02T gearbox without burning time and snapping bolts, get the factory source. Access the Factory Manual now from AutoRepairManuals and keep it on your tablet next to the lift. For broader automotive context on transmission evolution, see Manual Transmission and Automotive Industry Overview.
