Tremec WC, STD Repair Manual – 79 Pages of Factory Transmission Service

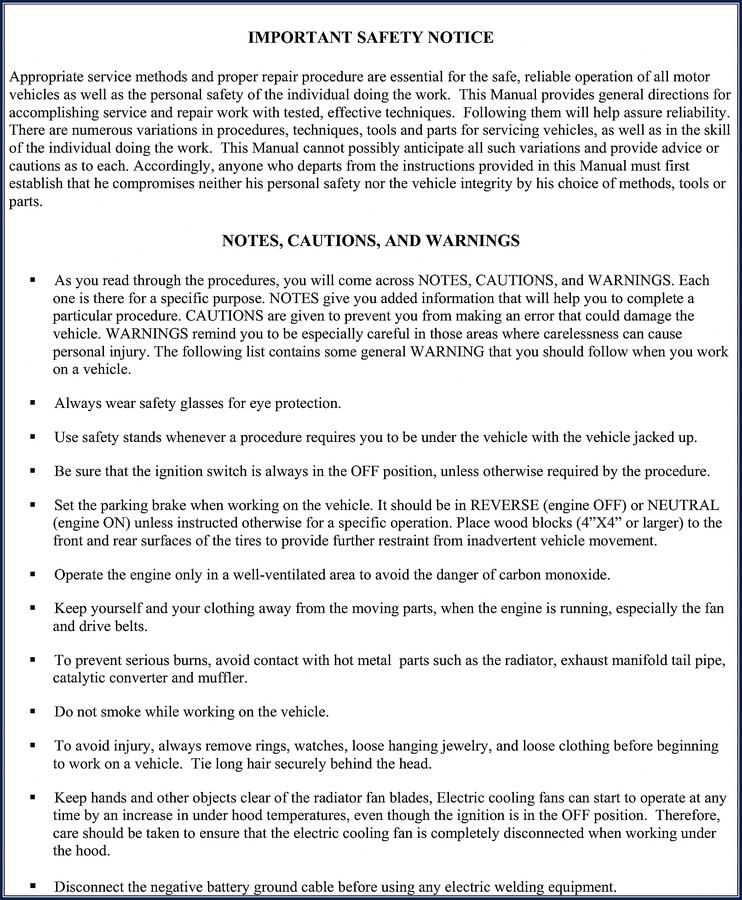

You've got a T5 transmission on the bench and a stack of aftermarket printouts that don't agree on bearing preload or synchro clearances. This Tremec WC, STD Repair Manual ends that guesswork. At 79 pages, it covers both the heavy-duty WC and standard STD models with separate disassembly and assembly procedures. The manual opens with a safety notice—page 1 tells you to wear safety glasses, use jack stands, and disconnect the battery. That's the kind of detail you get from OEM documentation. I've rebuilt more T5s than I can count, and I won't touch one without the factory specs.

Section 1 introduces the transmission families and explains the differences between the World Class (WC) and Standard (STD) versions. Know which you have before you start. Section 2 gets into on-vehicle service: troubleshooting, fluid checks, removal, and installation. This is where you save hours—the manual gives you the factory procedure for pulling the trans without fighting the shift linkage or crossmember. No shortcuts, just the right sequence.

Section 1: Introduction and Description – Know Your Transmission

Start here. Section 1 outlines the T5 HD and STD variants, including identification numbers and torque capacities. The manual tells you which models use a cast-iron tailhousing and which use aluminum. If you mix those up, you'll buy the wrong mount kit. That section alone keeps you from ordering parts that don't fit.

On-Vehicle Service and Troubleshooting (Section 2)

This is the real-world section. It covers maintenance intervals, fluid specs, and common failure points. If you're hearing a whine on decel or grinding into second, Section 2 gives you a troubleshooting flowchart. It also walks through transmission removal and installation with specific jack points and bellhousing bolt torque. The manual explicitly warns: "Be sure the ignition switch is in OFF position unless otherwise required." That's not optional.

Disassembly: HD vs. STD – Two Separate Procedures

Section 3 covers HD (WC) disassembly; Section 4 covers STD. They are not the same. The HD uses different bearings, synchro keys, and shift forks. The manual gives separate steps for each, including snap ring thicknesses and preload shim selection. I've seen guys try to use the WC procedure on a STD unit and end up with a locked mainshaft. Don't guess.

Cleaning, Inspection, and Repair – The Make-or-Break Step

Section 5 is the longest—and the most skipped. Cleaning means solvent bath and compressed air, not a rag. Inspection covers gear backlash, bearing play, and thrust washer wear. The manual lists the maximum allowable wear limits for every component. If your output shaft thrust washer exceeds .005 inch, replace it. No exceptions. For an overview of industry best practices, see Automotive Industry Overview.

Assembly: Follow the Order in Section 6 and 7

Section 6 assemblies the HD, Section 7 the STD. Each step tells you the exact tool needed and the torque spec. The manual includes a chart of required tools—snap ring pliers, seal drivers, bearing press. It also warns against reusing Teflon seals. The final step on page 73 (assembly complete) tells you to check input shaft rotation torque before installing. That's how you catch a misaligned bearing race.

Why Factory Documentation Beats Aftermarket Every Time

Aftermarket manuals combine multiple models and omit critical warnings. This Tremec document is printed from the OEM database—every torque spec, every shim thickness, every snap ring groove position comes from the engineering release. The safety notice on page 1 even tells you to disconnect the negative battery cable before using electric welding equipment. A generic PDF won't include that. If you need background on transmission basics, Manual Transmission provides good context.

Does this manual cover the T5 WC only?

No. It covers both WC and STD models in separate sections.

What tools do I need for disassembly?

The manual lists required tools in Section 3 and 4. You'll need snap ring pliers, bearing pullers, a press, seal drivers, and a slide hammer. A torque wrench is mandatory for assembly. I'd also recommend a dial indicator for checking endplay and preload. Without the right tools, you risk damaging synchros or causing premature bearing failure. I've seen guys use a screwdriver to pry snap rings and end up with metal shavings in the gear train. Spend the money on proper tools—it's cheaper than a new transmission.

Are torque specs provided for every bolt?

Yes. Each assembly procedure includes torque values for bolts and nuts.

Can I use this manual for the Tremec TKO?

No. The TKO uses different internal parts and torque specs. You need the separate TKO manual Tremec TKO 2007 Parts Catalog – OEM Factory Specs.

Related manuals you might need for your shop:

• Tremec T-56 Service Manual – OEM Factory Specs | AutoRepairManuals
• INTERACT 4.0/6.0 Engine Repair Manual Mechanical Repairs

Access the Factory Manual and get the only documented source for your Tremec T5 rebuild. 79 pages, OEM specs, no filler.
