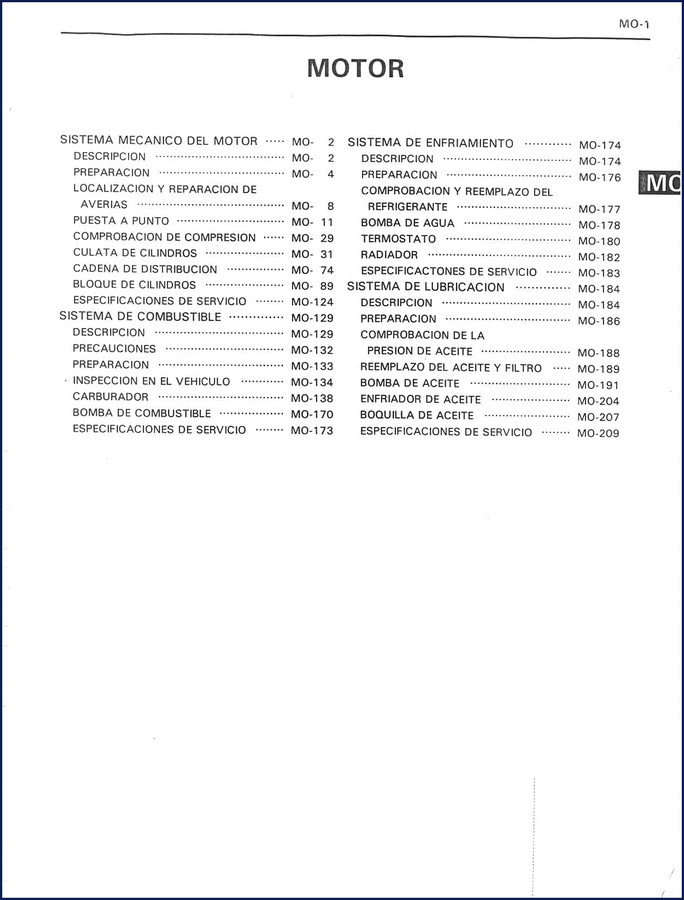

Toyota 1FZ-F Technical Manual – Factory Engine Specifications and Repair Procedures

I’ve seen too many guys tear into a 1FZ-F, bolt everything back, and then wonder why it knocks or leaks oil. Usually because they guessed the torque sequence or skipped the valve clearance check. The Toyota 1FZ-F Technical Manual fixes that. 292 pages of factory engineering data, not some third-party rewrite that leaves out the critical step. If you’re working on a Land Cruiser or any vehicle with this 4.5L DOHC 24-valve inline-six, you need the specs that Toyota put into production. Not a Haynes interpretation. Not a Chilton summary. The original OEM print.

Engine Mechanical System Coverage for the 1FZ-F

Factory data starts on the first page with the complete engine layout: cylinder numbering from the front, firing order 1-5-3-6-2-4, crankshaft with 12 counterweights and 7 main bearings, and the aluminum alloy cylinder head with cross-flow intake/exhaust ports. The manual describes the wedge-shaped combustion chambers and center-mounted spark plugs. Critical for anyone rebuilding the top end – you need to understand the valve train layout before you pull the camshafts. The chain drive uses a gear on the intake cam that directly meshes with the exhaust cam, eliminating a separate drive gear. That geometry changes how you time the engine after disassembly.

Does This Manual Include Torque Specifications for Head Bolts?

You bet it does. While the first page covers general construction, the manual contains a dedicated torque specification sheet in the fasteners section. I’ve had to correct more than one rebuild because someone used a generic torque chart from an aftermarket source. Factory spec data is non-negotiable for the head bolts on this engine – wrong torque leads to head gasket failure within 500 miles. The manual also spells out the tightening sequence, which is just as important as the number. For related engine control systems, check out the Toyota LS400 Technical Manual – Factory 1998 Engine Control System if you need ECU-level diagnostics on a different platform.

7 Systems Detailed in the Engine Chapter

From the OCR excerpt, the manual dives into: piston design (heat-resistant alloy with valve relief pockets), ring pack (compression ring #1 stainless steel, ring #2 cast iron, oil ring stainless), full-floating piston pins retained by snap rings, and the lubrication path through the crankshaft to the connecting rods. The intake manifold uses a swirl-type design with coolant circulation for better warm-up performance. The camshaft lubrication is handled through oil holes in the center of the camshafts. That’s seven major subsystems covered in the first few pages alone. If you need specs for a different generation, the Toyota Camry SE Technical Manual – 174 Pages of OEM Specs covers a separate platform but follows the same factory documentation standard.

Verify the Firing Order Before You Reassemble

Firing order 1-5-3-6-2-4. That’s what the manual states. If you mix up the plug wires or the injector sequence on a distributorless system, the engine will run like garbage or backfire through the intake. The manual shows the cylinder numbering from the front of the engine and the exact ignition timing marks. Don’t trust memory – check the page that lists the order. I’ve seen guys install the distributor 180° out because they didn’t verify against the factory diagram. For a broader look at the automotive engineering behind these specs, refer to the Automotive Industry Overview.

Valve Train: Shim-Over-Bucket Adjustment Method

The 1FZ-F uses a valve lash adjustment system where the adjustment shims sit on top of the bucket. That means you can change shims without removing the camshafts – a huge time saver during routine maintenance. The manual gives the clearance specs for both intake and exhaust valves at cold engine temperature. Without that spec, you’re guessing. Set them too tight and you burn a valve. Too loose and the engine ticks like a sewing machine. The manual also details the special tool needed to depress the bucket and extract the shim. The transmission chapter of this manual doesn’t cover the Manual Transmission mating, but it does outline the engine block mounting points for bellhousing alignment.

Frequently Asked Questions

What year vehicles used the 1FZ-F engine?

Toyota used it in Land Cruisers and some other models from 1993 to 1998. Check your VIN to confirm.

Is the manual in English or Spanish?

The scanned manual we have is in Spanish. However, the diagrams, torque values, and dimensional data are universal. If you read Spanish, you’re set. If not, the technical drawings still carry the critical information – labels and numbers are language-agnostic. For someone comfortable with automotive Spanish terms, it’s perfectly usable. Otherwise, you may need a translation for the descriptive paragraphs.

Does it include wiring diagrams?

No. This is a mechanical technical manual, not an electrical service manual. It covers engine mechanical systems – block, head, valve train, lubrication, cooling – but not the ECU or sensor circuits. For electrical diagnostics, you need the factory wiring manual.

Can I use this for the 1FZ-FE engine?

The 1FZ-FE is the fuel-injected version; this manual covers the carbureted 1FZ-F. The long block and mechanical components are identical, so the torque specs and clearances apply. However, the FE has additional sensors, a different intake manifold, and an ECU that the F version lacked. The valve shim sizes are the same, the crankshaft, pistons, and rings are identical. The only differences are on the intake side and the fuel system. Many guys swap the FE head onto the F block, but that requires the FE camshafts and timing chain. If you’re building a hybrid, you’ll need both manuals. For the base engine mechanicals, this manual gives you all the fastener specs, bearing clearances, and assembly procedures. It’s safer to use this as your reference for the rotating assembly than to rely on aftermarket data.

For newer vehicles with CAN bus diagnostics, the Toyota Camry Technical Manual (2006-2011) – Factory CAN Bus Diagnostics covers a completely different electronics architecture. But for the 1FZ-F’s pure mechanical systems, this manual has everything you need on the bench. Access the Factory Manual from AutoRepairManuals and keep it open while you work. Your engine will thank you – and so will your wallet.
