Titan Boom 40-S Hydraulic Schematic – Factory Specs & Parts List

If you’ve ever spent an afternoon trying to trace a hydraulic line on a Titan Boom 40-S without a schematic, you know the drill – disconnecting the wrong fitting, chasing dead ends, or worse, installing a relief valve with the wrong pressure rating. This 22-page factory Hydraulic Schematic pulls the guesswork out. No aftermarket redraws, no scanned-and-rescanned copies. Original OEM print, straight from Titan.

Hydraulic Schematic Breakdown: 5 Figures, 22 Pages

The manual packs five full-spread hydraulic circuit diagrams (Figures 5-1 through 5-5) starting on page 5-2. Each figure is cross-referenced to a callout table that lists every component – from BR1 wheel brakes to SV10 platform level solenoid. Need to know which orifice goes into the traction manifold? The table shows ORF2 and ORF3 both at 0.052″ diameter. That level of detail keeps you from reinstalling the wrong restrictor and starving the drive circuit.

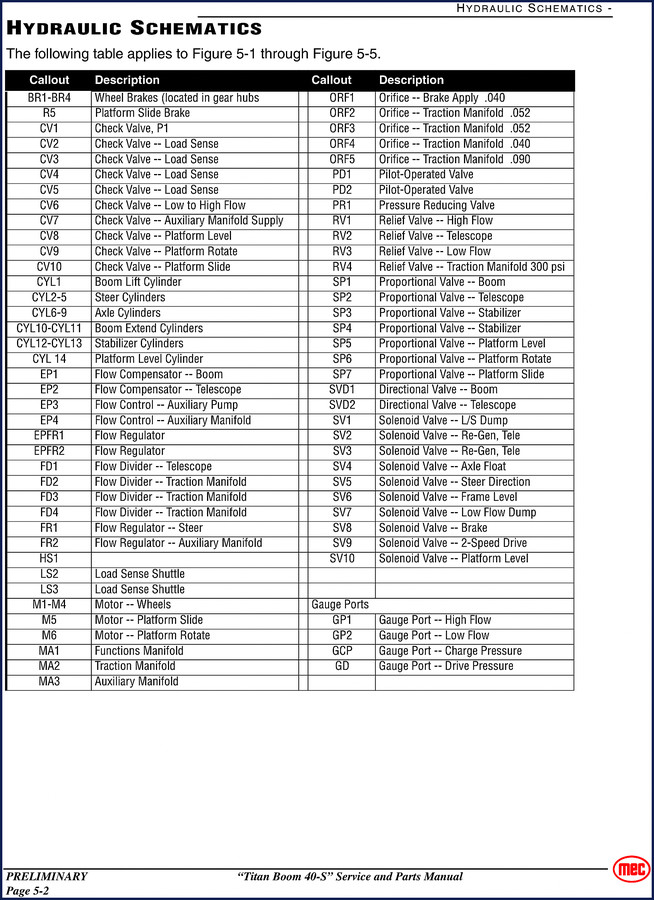

Callout to Component: Reading the Table on Page 5-2

That table is the real meat. It maps 57 separate callouts: CV1 through CV10 check valves, EP1/EP2 flow compensators, FD1–FD4 flow dividers, PR1 pressure reducer, RV1–RV4 relief valves, SP1–SP7 proportional valves, and a dozen more. Each callout includes a full description – for example, CV6 is the low-to-high flow check valve, RV4 is the traction manifold relief set at 300 psi. Run a pressure test on the platform rotate circuit? The schematic pinpoints CV9 and SP6. No flipping through parts catalogs guessing.

Do You Need the 40-S Schematic or a Different Model?

The Titan Boom 40-S is a common boom lift on rental fleets and job sites across Texas. But if you’re working on a different chassis, don’t assume the circuits match. This manual is strictly for the 40-S. If you need diagrams for other equipment, check the related listings below. For example, SAMSUNG MX6 Hydraulic and Pilot Circuit Diagrams covers a compact excavator platform, while Volvo EC55B Option Hydraulics Diagrams and Volvo EC140B Option Hydraulic Schematics address medium-to-large excavator variants.

What Factory Documentation Covers That Aftermarket Manuals Miss

Aftermarket schematics often simplify or skip the gauge ports. This factory print lists every one: GP1 (high flow), GP2 (low flow), GCP (charge pressure), GD (drive pressure). Hook up a pressure gauge to GCP and you can verify pump output without tearing into the manifold. I’ve seen a shop replace a $900 drive motor because an aftermarket diagram mislabeled the charge pressure test port. Don’t be that guy. Stick with OEM documentation. For a broader understanding of hydraulic systems fundamentals, the Wikipedia article on hydraulic machinery covers basic theory, but it’s no substitute for the factory schematic. And if you’re looking at the wider repair field, Automotive Industry Overview provides context on equipment standards.

7 Manifolds and 24 Valves: The Core of the System

The manual breaks down the hydraulic system into seven distinct manifolds: Functions (MA1), Traction (MA2), Auxiliary (MA3), plus the drive flow divider and platform level manifold assemblies. Solenoid valves SV1–SV10 control everything from load sense dump to axle float and 2-speed drive. The schematic shows which solenoid fires when the joystick moves left or right – crucial for diagnosing intermittent functions. Pump section? The P1 drive pump feeds the traction manifold; an auxiliary pump (driven by EP3/EP4) supplies platform functions. Load sense shuttles LS2 and LS3 regulate pressure to the proportional valves. All laid out in black and white.

That diagnostic precision is why I tell guys to spend the $30 on the factory print instead of three hours with a multimeter and a prayer. The 40-S schematic saves you from swapping parts that aren’t broken.

One more thing – orifice sizes are given in thousandths of an inch. ORF1 at 0.040″, ORF4 at 0.040″, ORF5 at 0.090″. If you need to clear a blockage and ream a port, those numbers matter. The factory manual doesn’t round them off.

FAQ

Does this schematic include part numbers for the valves?

It includes callout descriptions and component IDs (e.g., CV1, SP3) but not manufacturer part numbers. It’s a hydraulic circuit diagram, not a parts catalog. For replacement parts, you’ll need the Titan Boom parts manual.

What is the charge pressure gauge port designated?

GCP.

Can I use this for a different Titan Boom model?

No. This manual is specifically for the 40-S. Hydraulic circuits vary between models – the 40-S uses a specific traction manifold (MA2) with four flow dividers (FD2–FD4) that aren’t found on the 30-S or 50-S.

How many pages and what format?

22 pages, PDF format. Printable at full size – the schematics are large-format scans, legible down to the smallest callout text.

Access the Factory Manual – stop guessing, start fixing with the actual OEM hydraulic schematic. No reprints, no third-party redraws. This is the print Titan used on the assembly line.
