Terex Schaeff SKL 832 1989 Parts Catalog

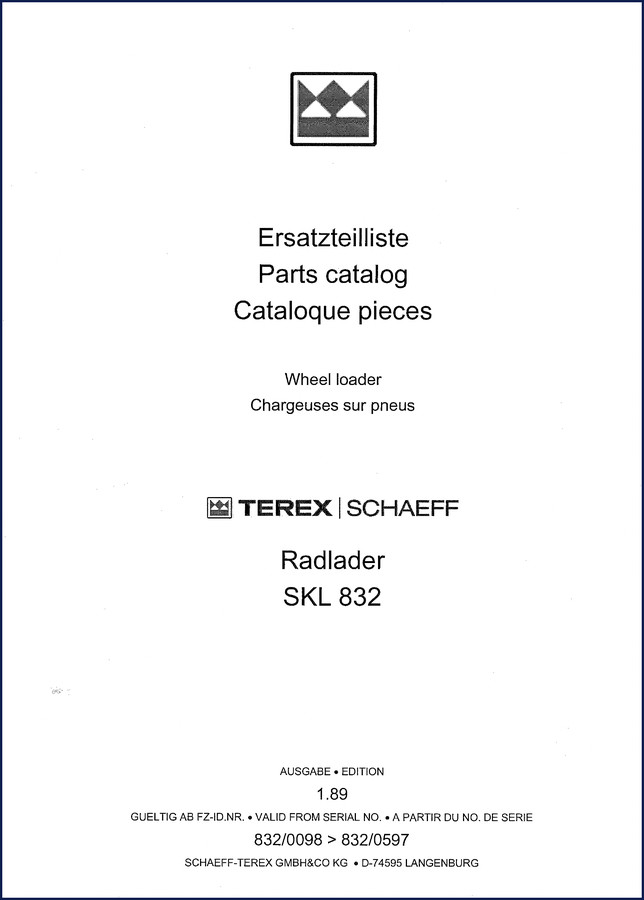

If you’re wrenching on a Terex Schaeff SKL 832 1989 Parts Catalog wheel loader and you order a brake caliper from a generic catalog, you’re gambling with a 6,000-pound machine. I’ve seen guys lose half a shift because the pin diameter was off by half a millimeter. That’s not a wasted afternoon—that’s a safety hazard. This catalog is the only straight line from your machine to the correct part number. It’s 145 pages of factory-issued plates, not some aftermarket re-numbering job. The important notice on page 1 tells you the exact serial number range (832/0098 to 832/0597) so you know it’s the right edition for your SKL 832.

SKL 832 Engine and Brake Coverage

You need parts for the Engine box (Motorbox – chapter 4) or the Brake system (Amortisseur und Bremse – chapter 6)? This catalog splays out every component: the damper assembly, brake calipers, lines, and hardware. You won’t find torque specs here—it’s a parts catalog, not a service manual—but you get exploded views with callouts that match the factory part numbering. The index on page 3 lists each Bildtafel (plate) so you can jump straight to the section. No scrolling through generic online databases that show you a brake pad that’s close enough. Close enough gets someone hurt.

What About the Hydraulics?

The SKL 832 runs on a load-sensing hydraulic system. Chapters 11 and 12 cover the work and driving hydraulic installations. That’s the pump, valves, hard lines, and fittings. One misidentified O-ring in the valve block (chapter 13) and your loader won’t lift at full pressure. The catalog gives you the part numbers off the factory drawing. You match the plate number to your machine, cross-reference the INDRi numerical list in chapter 34, and you’re done. Automotive Industry Overview operates on the same principle—original specs matter. Don’t settle for a cross‑reference that might be off by one thread pitch.

34 Plates Covering Every SKL 832 Assembly

From the front carriage articulation (plate 2) to the operator’s seat (plate 34), the catalog breaks the machine into 34 plate sections. That includes the front and rear axles, torque converter (chapter 19), differentials (chapters 20-23), and the full swivel axle bearing groups (chapters 24-25). Each plate is a clean, factory-issued drawing with parts indexed in German, English, and French. The 145 pages give you room to find exactly what’s on your bench. Compare that to a 50-page aftermarket summary that skips the tilting cylinder hardware (chapter 15). TEREX SCHAEFF SKL 832 Parts Catalog (4.98) – Section: Bloc Distributeur is another related section you’ll need if you’re rebuilding the valve block.

Identify Parts by OEM Number: The Index Method

You start at the index on page 3. Find the plate number for the assembly you’re working on—say, the lifting linkage (Ladeschwinge, plate 16). Flip to that plate, look at the drawing, note the part number next to the arrow. Then go to the INDRi numerical list (chapter 34) to verify supersessions or find the part in the correct parts catalog grouping. That’s how we did it before anyone had a smartphone in their pocket. It still works better than typing a rusty casting number into a search engine. Aftermarket catalogs often drop the INDRi list entirely—you get a part number that may or may not still be valid. This one has it.

Terex Schaeff SKL 832 1989 Parts Catalog: Why It’s Different

This is not a reprint of a reprint. It’s a direct scan of the original 1989 catalog from Schaeff-Terex GmbH & Co KG in Langenburg. The trilingual layout (German, English, French) is preserved exactly as the factory printed it. Aftermarket versions reorder plates, drop the French text, or merge multiple models into one PDF that confuses the SKL 832 with the SKL 863. You don’t have time to sort out which part fits. Schaeff-Terex SKL 863 2003 Parts Catalog and SCHAEFF-TEREX SKL 853 2003 Parts Catalog are separate manuals for different models. Get the right one for your serial number range. That’s the difference between a single order and three returns.

Does this manual include torque specs for the brake system?

No, it’s a parts catalog – it lists part numbers and diagrams, not torque values.

Is this a reprint or an original OEM document?

This is a direct scan of the original 1989 factory catalog from Schaeff-Terex GmbH & Co KG. The index on page 3 shows the plate numbers and sections exactly as the factory produced them. Aftermarket versions often re-number plates or omit the German/French original text. Here you get the trilingual layout (German, English, French) so you can cross-reference with the actual machine. The 145 pages are untouched from the original print.

Forget walking to the parts counter with a handful of rusted pieces. Get the correct part number from the factory document. Automotive Industry Overview won’t help when you need an axle stub seal for the HA Standard differential. Access the Factory Manual from AutoRepairManuals and keep it on the bench next to your torque wrench.
