Terex Schaeff SKL 831 1997 Parts Catalog

You have a Terex Schaeff SKL 831 1997 Parts Catalog in front of you, and that’s exactly what you need when a hose blows on a Saturday afternoon and the local parts house gives you a blank stare. This is the factory book – 322 pages of exploded diagrams, ten‑digit reference numbers, and ordering instructions that the Schaeff engineers wrote. Not a reprint. Not a third‑party knockoff. Original OEM print from 1997, valid for serial numbers 831/0645 through 831/4789. If you’ve ever ordered a part by guess and ended up with the wrong bracket or a seal that doesn’t fit, you understand why this book belongs on your bench.

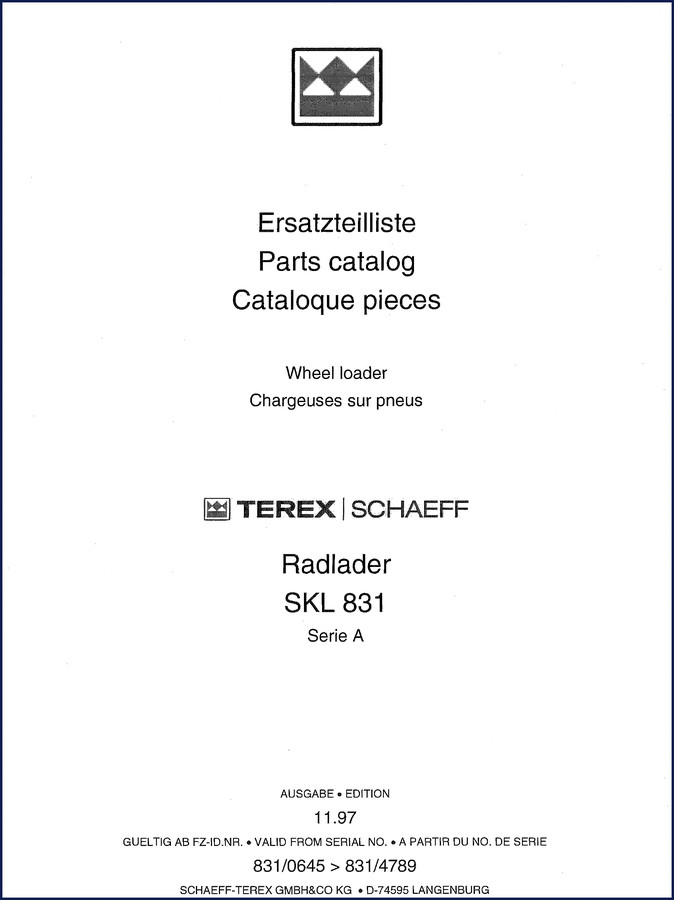

1997 Parts Catalog for SKL 831 Series A

This catalog covers the entire SKL 831 wheel loader in Series A configuration. The book is trilingual – German, English, French – so no matter where you source parts, the reference numbers stay the same. Every component, from the engine block to the loader arm pins, is broken into sub‑assemblies with index numbers that correspond to the parts list on the facing page. Need a new hydraulic quick‑coupler? Flip to the hydraulics section, find the assembly, and get the exact 10‑digit part number. That’s the whole point of a factory parts catalog: you match the drawn shape to the part in your hand, then order by number, not by description.

Why the Serial Number Matters More Than You Think

The manual’s validation block says “Valid from serial no. 831/0645 > 831/4789.” That’s not a suggestion – it’s a hard stop. Schaeff made design changes during the production run, and using a part from an earlier series can bolt up but wear out in half the hours. I’ve seen guys order a brake caliper from a 1995 book for a late‑1997 machine and wonder why the bleed screw threads didn’t match. This catalog gives you the exact production window so you order the right revision. Check the nameplate on your loader, compare it to the range, and order with confidence that the part will fit – no guessing.

Ordering the Right Part: The 8 Required Details

Page 4 of the catalog lists the eight pieces of information Schaeff requires for a correct order: machine model, serial number, part description, 10‑digit reference, quantity, delivery method, delivery address, and your order reference. That’s not bureaucracy – that’s making sure you get the right part in one shipment. If you miss the reference number, the order goes to a human who guesses. And the part you get might be close but not correct. This catalog gives you the reference numbers in the diagrams. Write them down exactly as printed, including the leading zeros. Otherwise you’ll get a part that’s for a different model, and then you’re down another day.

What This Catalog Covers (and What It Doesn’t)

This is a parts catalog, not a service or repair manual. It shows you what the part looks like, what it’s called, and what number to order. It does not give you torque specs, assembly sequences, or hydraulic pressure checks. For that you need the separate service manual for the SKL 831. But for ordering – bearings, seals, hoses, electrical components, engine rebuild kits, hydraulic pumps – this is the only source that matches the factory bin count. A common mistake: trying to use the parts catalog as a repair guide. Don’t do it. Use it for ordering, then use the workshop manual for the job.

Factory Documentation vs. Aftermarket Copies

Aftermarket parts catalogs blur the lines – they lump multiple serial ranges into one table and drop the supersession notes. This OEM catalog preserves the original factory supersession data. If part A was replaced by part B, the catalog shows the superseded number and the serial break. I have seen aftermarket books miss a supersession entirely, causing a shop to order a part that was discontinued and then blame the mechanic for the downtime. Stick with the factory book. It’s 322 pages of verified, traceable information. You can also check related models like the Schaeff-Terex SKL 863 2003 Parts Catalog or the SCHAEFF-TEREX SKL 853 2003 Parts Catalog for larger loaders, or the Schaeff-Terex SCL 515 2002 Parts Catalog for a different series. For broader context on how OEM documentation fits into the Automotive Industry Overview, you can read that Wikipedia page. And Automotive Industry Overview also covers the importance of original specs.

If you’ve been burned by a wrong part before, you know the cost of that mistake. A hydraulic line that’s 2 cm too short might not leak on the bench, but under full pressure it’ll rub against a bracket and burst. An incorrect pilot seal can cause a control valve to drift. This catalog eliminates those variables. You get the part number, you order it, it fits. No wasted trips to the parts counter.

Access the Factory Manual and keep it on your device or printed out in the cab. When the loader goes down, you’ll have the exact reference in under a minute. That’s the difference between a half‑day repair and a three‑day wait for the wrong part.

Frequently Asked Questions

Does this catalog include service specifications like torque values?

No. This is a parts catalog only. For torque specs and repair procedures you need the separate service manual for the SKL 831.

How do I know if my SKL 831 is in the serial number range covered by this catalog?

Look at the manufacturer’s nameplate on the loader frame. The serial number is stamped there. This catalog covers serial numbers 831/0645 through 831/4789. If your machine falls outside that range, you need the corresponding edition. The manual’s preface clearly states the valid serial range – always verify before ordering parts.
