Terex Schaeff HML 25 1989 Parts Catalog

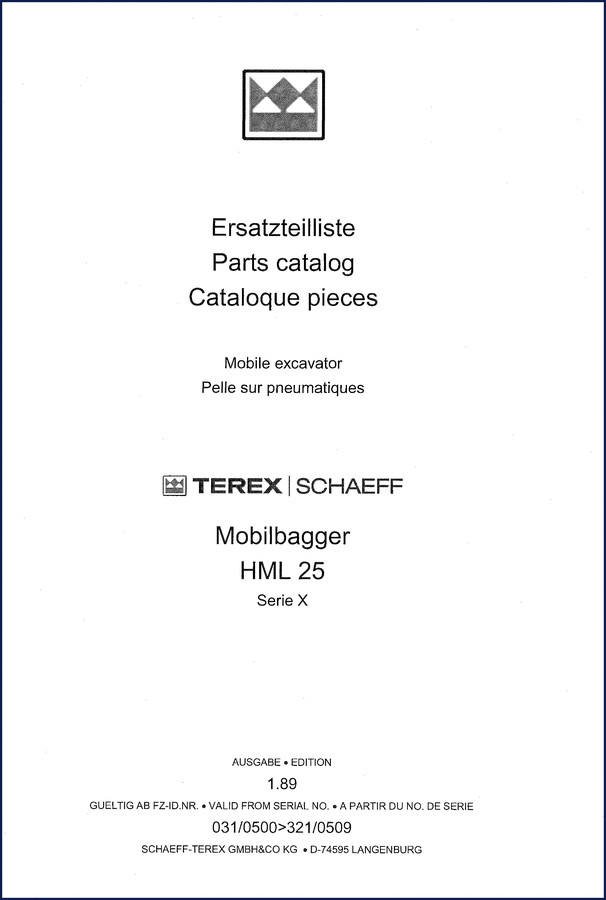

You are elbow-deep in a Terex Schaeff HML 25 1989 Parts Catalog replacement job and the aftermarket catalog cross-reference gives you a hydraulic pump seal that is three millimeters too small. That costs you half a day and a return shipping fee. I have seen it happen. The only way to get the right part the first time is to use the OEM factory parts catalog – the same booklet the dealer parts counter uses. This one is genuine Schaeff-Terex documentation from 1989, sized for the HML 25 Series X mobile excavator. It covers serial numbers 031/0500 to 321/0509, and if your machine falls inside that window, every nut, seal, and cylinder in these 110 pages is the exact piece you need.

Parts Breakdown for the HML 25 Undercarriage and Axles

Page 3 of the catalog lays out the full table of contents in German, French, and English. The first major section is Unterwagen, Achsbrücke – undercarriage and axle bridge. Inside you get exploded diagrams for the front and rear differential housings (Differentialgehäuse – VA and HA), differential assemblies, disc brakes (Scheibenbremse), wheel hubs (Radnabe), and axle bodies. Each drawing is keyed to a part number, and the number is the one you write on the order form. No guessing which “universal” replacement fits. You see the OEM part, you order that.

What Does the Factory Parts Catalog Include?

It is not a service manual – there are no torque values or step-by-step repair procedures in this document. This is a parts identification and ordering reference. The 110 pages cover every major system: the upper carriage (Oberwagen) with oil tank, diesel tank, cab, swing brake controls, parking brake, service brake, and swing column. The working equipment (Arbeitseinrichtung) section includes the hydraulic installation, swing drives, rotary union (Drehdurchführung), and all nine cylinders – knuckle, boom, intermediate boom, stick, bucket, outrigger foot, outrigger shield, and steering. Each cylinder gets its own exploded view with individual seals, pistons, and rod numbers. You can identify that leaky wiper seal in two minutes.

110 Pages of Factory Part Numbers

Thumbing through 110 pages of OEM data is faster than scrolling through five different aftermarket websites. The manual is organized logically: start with the undercarriage, then the upper, then the working equipment, then the driveline (differentials, brakes, axle hubs, transmission, parking brake). Each subsection begins with a parts drawing and a table listing the reference number, part number, description, and quantity. The part numbers are original Schaeff-Terex numbers – the same ones stamped on the housing or cast into the bracket. You cross-check, you order, you install.

Order Parts Correctly Using the Serial Number Range

Page 5 of the catalog prints the WICHTIGE HINWEISE – important notes for ordering. It explicitly tells you to provide the machine type (e.g., HML 25), the serial number (found on the frame right-hand side below the cab), the part description exactly as written in the catalog, and the full reference number including the four-digit suffix. If you skip that step, the parts desk will call you back. The manual’s validity is for serial numbers 031/0500 through 321/0509. If your machine is outside that range, call Schaeff-Terex before ordering; some components changed mid-series.

Hydraulic Cylinders: Detailed Exploded Views

The cylinder sections – Knickzylinder, Auslegerzylinder, Zwischenauslegerzylinder, Löffelstielzylinder, Löffelzylinder, Abstützfußzylinder, Abstützschildzylinder, Lenkzylinder – each have their own exploded diagram. You see the barrel, rod, piston, seals, and every O-ring. The part numbers are grouped logically, so you can order a complete seal kit or just the rod wiper. This is especially useful when the local hydraulic shop says they need the OEM number to cross-reference. Hand them this page.

Why Aftermarket Parts Catalogs Fail

I have tested aftermarket parts catalogs against this very manual. They swap part numbers, merge different series, and occasionally leave out the left-hand version of a bracket. The Automotive Industry Overview on Wikipedia explains how OEM documentation is kept under revision control – aftermarket reprints lose that. This PDF is a direct scan of the original 1989 factory booklet, no re-editing, no third-party errors. When you need a part for a 30-year-old mobile excavator, you cannot afford the wrong number. Automotive Industry Overview aside, trust the source that built the machine.

Related manuals you may need:

• Schaeff-Terex SKL 863 2003 Parts Catalog
• SCHAEFF-TEREX SKL 853 2003 Parts Catalog
• Schaeff-Terex SCL 515 2002 Parts Catalog

For the HML 25, you want the factory file. Access the Factory Manual now and get back to wrenching with the right parts in hand.

Is this manual in English?

Original is trilingual: German, French, and English. Part numbers and diagrams are language-independent.

Does this manual include torque specifications?

No. This is a parts catalog, not a service or repair manual. Torque values are not listed; you need the corresponding service manual for that data.

Can I use this catalog to identify parts for my HML 25 with a different serial number?

The manual is valid for serial numbers 031/0500-321/0509. If your machine’s serial number falls outside that range, there may be differences in hydraulic cylinders, undercarriage components, or electrical parts. You should cross-reference with the machine’s actual part stamps or contact Schaeff-Terex support. Using parts from a different serial range can lead to fitment issues, especially with older machines that underwent mid-production changes.

What format is the manual?

Digital PDF, 110 pages, immediate access after purchase. No physical copy.
