Terex Schaeff HML 15 Parts Catalog – OEM Exploded Views & Part Numbers

Description

If you’re rebuilding a Terex Schaeff HML 15 mobile excavator and you don’t have the factory parts catalog, you’re working blind. I’ve seen too many guys order the wrong hydraulic seals because they guessed from a third-party diagram. This is the real deal – 238 pages of OEM exploded views and part numbers straight from Schaeff-Terex. The catalog covers serial numbers 031/0291 through 031/0400. No aftermarket reprints, no photocopied garbage. You get the same diagrams the dealership uses.

Engine Assembly and Cooling System Coverage

Look at the table of contents. Section 7 covers the motor (engine assembly), Section 8 the cooling system. Each chapter groups parts by function with exploded isometric views. You get the original Schaeff-Terex part numbers – not some reindexed aftermarket code that might or might not cross. Need a water pump gasket? Section 8 lists the exact seal with its OEM number. Pair this with the TEREX SCHAEFF HML 15 Parts Catalog – Section: Bildtafel Diagram Planche 10 to cross-reference visual layouts.

40+ Systems Illustrated in Exploded Views

From the undercarriage (Section 2) to the stabilizer brakes (Section 3), wiring harnesses (Section 5), and suspension weights (Section 6) – every major system gets its own Bildtafel plate. The catalog uses German/English/French labels, so you can hand it to a tech who reads any of those languages. Section 4 covers chassis frame and counterweight, with callouts for bolt lengths and positions. This is the kind of detail you need when a mounting bracket cracks and you have to order the reinforced replacement.

Does This Parts Catalog Include Hydraulic Installation Diagrams?

Yes, and it’s broken down into six dedicated chapters: Sections 17 through 22 cover hydraulic installations for the upper carriage, stabilizers, chassis, steering, swivel, and auxiliary valves. Each section shows the hose routing, fitting part numbers, and seal kits. If you’re chasing a leak on the swivel joint, Section 21 gives you the exact o-ring dimensions and the OEM supplier code. No guessing which metric o-ring fits – the catalog lists it.

Match Part Numbers to Your Serial Number

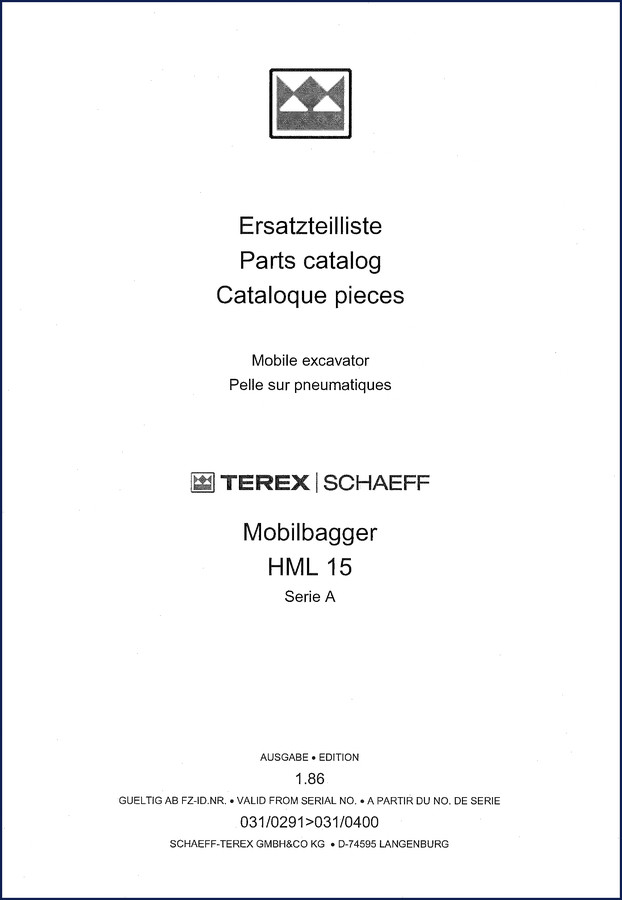

Before ordering anything, check the serial range on page 1. This edition is valid from FZ-ID.NR. 031/0291 to 031/0400. Each Bildtafel plate indicates the applicable serial sub-range. For example, Section 43 (Differential rear axle) applies to Bildtafel M 1-2. If your machine falls outside that range, you need a different edition. Don’t skip this step – I’ve seen a tech order an entire axle assembly for the wrong series. Automotive Industry Overview standards apply here: verify before you buy.

Differential Axles: Front and Rear Breakdown

Sections 43-54 tear down the differentials, axles, hubs, and brakes. Front and rear differential housings (Sections 44, 45), gears (46, 47), and axle drives (48). The catalog shows every shim, bearing race, and seal with its dimensional tolerance. Need a pinion bearing for the front diff? Section 46 lists it under Bildtafel M 9-14. Pair this with the Schaeff-Terex SKL 863 2003 Parts Catalog for cross-fleet compatibility – the part numbering system is consistent across models.

Factory OEM Documentation vs Aftermarket Reprints

I’ll say it plain: third-party parts catalogs are a gamble. They often redraw diagrams, miss callouts, or substitute generic part numbers. This is the original Schaeff-Terex print from 1986, scanned from the actual factory binder. The OCR text matches the German/English/French headers exactly. When you look up a part under Section 30 (Löffelzylinder – dipper cylinder), the diagram shows the exact grease fitting and seal orientation. Aftermarket reprints blur the lines. If you want to see another similar machine setup, check the SCHAEFF-TEREX SKL 853 2003 Parts Catalog – same level of detail.

Automotive Industry Overview practices remind us that OEM documentation is the only reliable source for critical components like brake systems and hydraulic controls. Don’t risk a failure because someone photocopied the wrong page.

Access the Factory Manual now and stop guessing part numbers. Your parts counter will thank you when you hand them a printout from the actual OEM catalog. No more returns, no more wrong seals.
