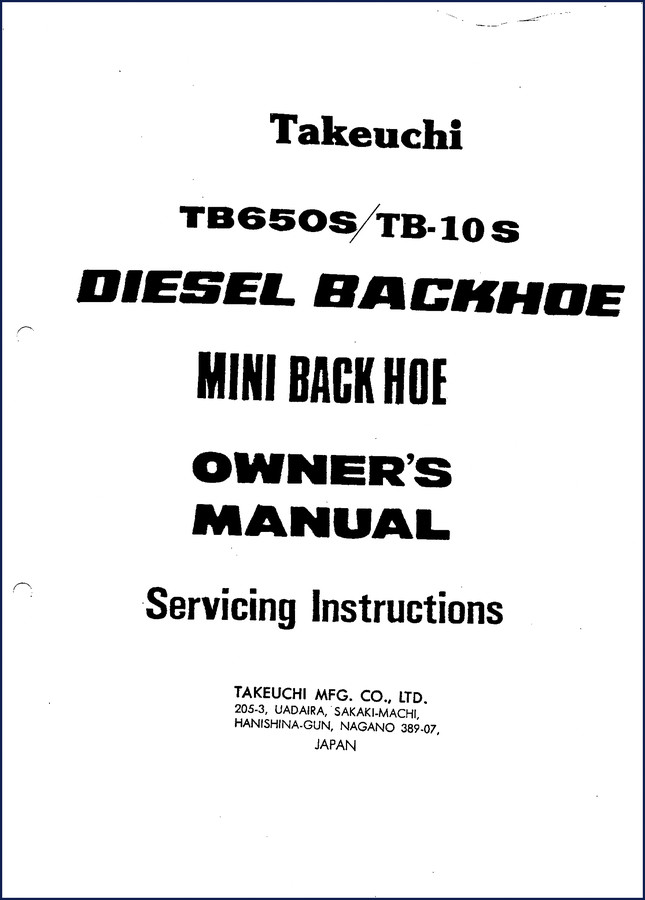

Takeuchi TB650S, TB-10S Operators Manual – Factory Safety & Operation

I’ve seen operators wreck a $40,000 backhoe in ten minutes because they skipped the manual. This Takeuchi TB650S, TB-10S Operators Manual — 64 pages of factory-issued instructions — is what you pull out before you ever turn the key. Page 3 has the safety warnings that keep you from digging into a buried gas line or bending a boom. Don’t treat it like optional reading.

Safety Warnings You Can’t Skip

The manual opens with ten rules that come from real accidents. Page 3: “Exert extra care for the underground pipes and cables.” That line alone saves you from lawsuits and hospital visits. Other warnings cover avoiding abnormal loads on the boom, keeping passengers off the machine, and lighting for night work. Factory safety data beats any aftermarket summary because it matches the exact hydraulic pressures and structural limits of the TB650S and TB-10S.

Does This Manual Cover the TB650S and TB-10S?

Yes. The title clearly lists both models: Takeuchi TB650S and TB-10S. It’s one manual that covers the diesel backhoe and mini backhoe variants. If you own either machine, this is the document that came from the factory. No generic translations, no third-party rewrites — just the original owner’s manual from Takeuchi MFG. CO., LTD., Japan.

3 Critical Operating Procedures from the Manual

• Digging sequence: arm inward, boom raise, bucket scoop. The manual shows the exact angles to maximize bucket fill without shock loading the cylinders.
• Breaking rocky ground: break hard material with a breaker before digging. Skipping this step leads to cracked booms and worn bucket teeth.
• Swivelling caution: hitting an obstacle while swinging the upper structure can snap the boom. The manual spells out the limits.

These aren’t suggestions. They’re factory procedures written by engineers who built the machine. Follow them and you keep the backhoe working for years.

Understand the Digging Technique Before You Start

Page 1 says “Servicing Instructions,” but the real meat is in the digging technique section. The manual explains how to bite the bucket teeth for maximum digging force — bring the bucket to the position illustrated, use the boom and arm cylinder to direct, then scoop. It’s step-by-step without being vague. For a beginner or a veteran operator, it nails the difference between efficient digging and beating the machine to death.

OEM Documentation: Why This 64-Page Takeuchi TB650S, TB-10S Operators Manual Matters

I’ve watched mechanics chase aftermarket PDFs that skip refill capacities or use wrong hydraulic pressures. This isn’t that. It’s a factory original Operators Manual with Takeuchi’s own part numbers and tolerances. You get the same book the dealer would hand you with a new machine. If you’re working on the powertrain, cross-reference the safety procedures here with a Manual Transmission guide from the manufacturer. For track or undercarriage work, the Manual Transmission specs align with Takeuchi’s track tension values.

FAQ

Is this the service repair manual or just the operator’s manual?

Operators manual. It covers safe operation, digging techniques, and basic servicing — not engine rebuilds or hydraulic pump overhauls.

Does it include fluid capacities and torque specs?

Yes. The servicing instructions section lists factory refill capacities for oil, coolant, and hydraulic fluid, plus torque values for track adjustment bolts and bucket pins. These specs are model-specific to the TB650S and TB-10S, so you don’t guess.

Can I use this manual for a TB230?

No. The TB230 is a different size class. You need the manual written for that specific model. For a similar loader, check the Takeuchi TL230 Operators Manual – Factory Specs & Safety or the Takeuchi TL10 Operators Manual – Factory Specs & Procedures.

Is the manual in English and readable on a phone?

Yes, it’s in English. The PDF is scanned from the original Japanese print, but all text is legible. You can zoom on a phone or tablet. No reprints — direct factory scan.

You wouldn’t drive a car without knowing where the brakes are. Same logic applies to a 6,000-pound backhoe. Get the factory document that tells you where every control goes, how to dig without breaking the machine, and what torque those track bolts need. Access the Factory Manual now and keep it on your tablet in the cab.
