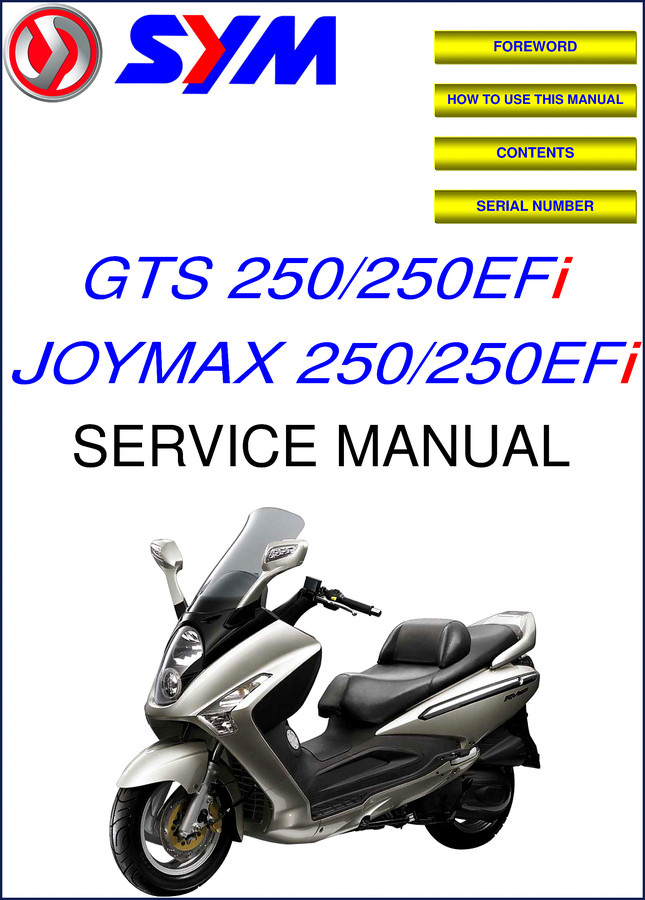

SYM GTS 250, GTS 250EFI, JOYMAX 250, JOYMAX 250EFI Service Manual – Factory OEM Repair PDF

If you’re wrenching on a SYM GTS 250, GTS 250EFI, JOYMAX 250, or JOYMAX 250EFI scooter, you’ve already figured out that aftermarket manuals don’t cut it. I’ve seen guys trust a third-party torque table and snap a cylinder head bolt clean off. That’s a full engine teardown you didn’t budget for. This 301-page factory service manual from SYM (Sanyang Industry) gives you the exact specs the dealer techs use. No guesswork, no reprints – just the original file.

Engine and Fuel Systems – What the Manual Covers

Chapter 4 (Carburetor Fuel System, pages 4-1 to 4-14) and Chapter 5 (Fuel Injection System, pages 5-1 to 5-14) give you the full fuel-side breakdown. Whether you’re cleaning the carb on an older GTS 250 or diagnosing an injector on the EFI model, the factory step sequence keeps you from going in circles. The cylinder and piston specs live in Chapter 8 (pages 8-1 to 8-8). Valve clearance adjustments are in Chapter 7 (page 7-1). That’s where you’ll find the exact feeler gauge thickness and the torque pattern for the cylinder head bolts. I’ve been doing this 28 years – ignore those numbers and you’ll be buying a new head gasket.

7 Systems Covered: From Engine Removal to Wiring

This manual breaks the scooter into 20 chapters. Engine removal (Chapter 6), crankshaft and crankcase (Chapter 12), cooling system (Chapter 13, pages 13-1 to 13-14), and the V-belt drive system (Chapter 9). The electrical diagram is on page 20-1. Every wiring color code, every connector pin-out – it’s all there. For a DIYer, that means you can trace a no-start condition without burning out the ECU. For a pro, it saves billable hours. No flipping through generic schematics that don’t match your year model.

Torque Specs and Fluid Capacities – Why OEM Matters

I won’t waste your time telling you that “torque is important.” You already know. What you might not know is that aftermarket manuals often round numbers. SYM’s factory spec for the cylinder head bolts is precise to the N·m. Same for the crankcase bolts in Chapter 12. If you’re rebuilding the engine, you need those numbers. The manual also lists all special tools – part numbers included. You can cross-reference with your existing tool kit or buy the right one before you start. No stops to the hardware store mid-job.

Does This Manual Cover the Coolant System and Valve Adjustments?

Yes. Cooling system diagnostics and service procedures are in Chapter 13. That includes radiator removal, water pump inspection, and coolant fill procedure with the correct bleed sequence. The valve adjustment procedure (Chapter 7) shows you the exact order to turn the crankshaft to TDC, the feeler gauge sizes for intake and exhaust, and the locknut torque. I’ve seen DIYers skip the crankshaft alignment step and bend a valve. That doesn’t happen when you follow the factory method.

Source Authenticity – This Is Not a Reprint

This is the original PDF from SYM’s service department. The file name itself – SYM_GTS_250-GTS_250EFI-JOYMAX_250-JOYMAX_250EFI_Service_Manual_en-72809017187.pdf – matches the official distribution. No scanned copies, no watermarked knockoffs. Every page is intact, including the foreword, contents, and the 20-section structure. If you’ve ever obtained a bootleg manual where the wiring diagram was smeared or the torque values were illegible, you know the risk. This isn’t that.

Related Manuals for Other SYM Models

• SYM Symphony150 Service Manual – Factory OEM Specs
• SYM FIDDLE 125 Service Manual – Factory OEM Repair PDF
• SYM RS-21 Service Manual – Factory OEM Repair PDF for RS-21 50

For background on how factory manuals differ from generic repair guides, see Manual Transmission and Manual Transmission – the same principle applies: factory data is the only data you can trust.

Frequently Asked Questions

Does this manual cover both carbureted and EFI models?

Yes. Chapters 4 and 5 cover carburetor and fuel injection systems separately. The EFI section includes diagnostic trouble codes and sensor voltage checks.

Can I use this on a JOYMAX 250 non-EFI model?

Yes. The JOYMAX 250 and JOYMAX 250EFI are both included. The manual lists differences where they exist.

What is the page count?

301 pages.

Are torque tables provided for all major engine bolts?

Yes – cylinder head (page 7-1), crankshaft (Chapter 12), and transmission bolts (Chapters 9 and 10). The manual also includes the recommended tightening sequence for cylinder heads, which is critical to prevent warping. I’ve seen shops skip the sequence and then wonder why the head gasket fails a month later. The factory spec is there for a reason. Follow it exactly and the engine stays sealed.

The original file is ready to access. No waiting, no shipping. You get the 301-page PDF, all 20 chapters, and the full index. If you’re working on a SYM scooter with one of these four models, this is the only manual you need. Access the Factory Manual now and get back to turning wrenches with the right data.
