Suzuki SQ416, SQ420, SQ625 2000 Service Manual – OEM Factory Specs for Transmission & Drivetrain

If you are tearing into a Suzuki SQ416, SQ420, or SQ625 from the 2000 model year, you need factory specs. Not a reprint. Not a scan of a scan. You need the actual OEM service manual. I have seen too many stripped threads and wrong endplay from guys using aftermarket garbage. This 214-page Suzuki SQ416, SQ420, SQ625 2000 Service Manual comes straight from the manufacturer. It covers the manual transmission, automatic transmission, transfer case, and front/rear differentials. Page 2 of the foreword spells it out: “This manual provides information on the unit repair service procedures for the following units.” Trust that.

What the Suzuki SQ416, SQ420, SQ625 2000 Service Manual Covers

Seven sections make up this book – Sections 7A, 7A1, 7B1, 7D, 7E, and 7F. Section 7A deals with the manual transmission disassembly, component inspection, and assembly. It includes the gear shift lever case for both 2WD and 4WD models. Section 7A1 covers a separate manual transmission variant with input shaft assembly details and location of knock and plug on the intermediate case. Section 7B1 is the automatic transmission unit repair – torque converter diagnosis, overdrive clutches, valve body, and oil pump. Then Sections 7D, 7E, and 7F handle the transfer case, front differential, and rear differential. Each section ends with tightening torque specifications, required service materials, and a list of special tools. That is what a real manual looks like.

Transmission Disassembly: Sections 7A and 7A1

You get step-by-step unit disassembly starting with the gear shift lever case. For the 4WD model, the manual walks you through removing the shift lever and case. Then the transmission unit comes apart – input shaft, main shaft, upper case and shifter. Inspection sections cover counter shaft and main shaft inner parts, including low and reverse scissors gear assemblies if equipped. Do not skip the component inspection steps. The manual tells you exactly what to look for: wear patterns, pitting, and endplay. Unit assembly reverses the process with torque values for every fastener. I will say it again: use the tightening torque specification page before you put a wrench on anything.

Torque Converter Diagnosis from Section 7B1

Section 7B1 is not just a tear-down guide. It starts with torque converter diagnosis. The manual lists conditions when the stator assembly freewheels, when it remains locked up, and – critically – when you should not replace the converter for certain conditions. That saves you from swapping a good part. Then it moves into unit repair with precautions, a part inspection and correction table, and sub-assembly repair for the oil pump, overdrive (planetary gear side and case side), forward clutch, direct clutch, center support, planetary gears and output shaft, and the front and rear upper valve bodies. Every step has a torque spec. I have used this section to rebuild three different Suzuki automatics; it works.

Differential and Transfer Case Repair (Sections 7D, 7E, 7F)

Section 7D covers the transfer case – disassembly, component inspection, assembly, with torque specs and required materials. Sections 7E and 7F are the front and rear differentials. You get procedures for differential carrier adjustment, differential case assembly, drive bevel pinion installation, and side bearing preload. The manual shows you where to measure backlash and how to set pinion depth using the special tools it lists. Do not attempt a ring-and-pinion swap without this data. Aftermarket guides guess; this manual does not.

3 Reasons This OEM Manual Beats Aftermarket Copies

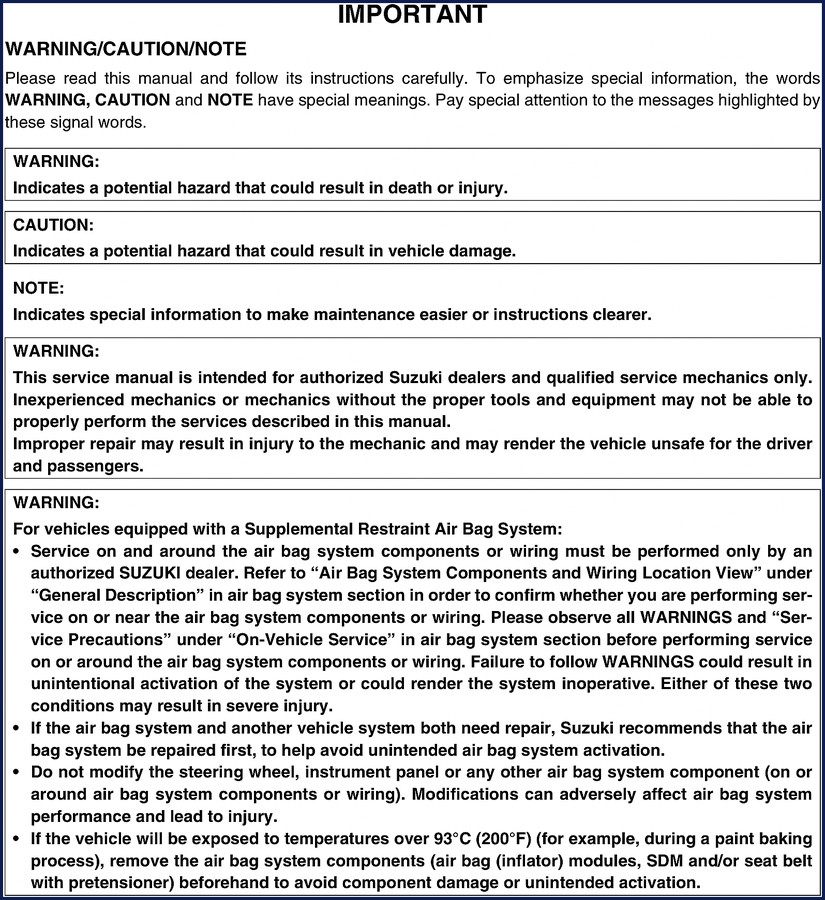

First, the torque specifications are Suzuki-original. Aftermarket reprints often round numbers or omit critical values. Second, the special tool list is complete. You know exactly what you need before you start. Third, the safety warnings are present – air bag system precautions, temperature limits for paint baking, and the warning that this manual is intended for authorized Suzuki dealers. Read those warnings. Page 1 of the manual says improper repair may result in injury. I take that seriously. Aftermarket documents delete those warnings to save space. That is dangerous.

Required Service Materials and Special Tools

Every section in this manual includes a “required service material” table and a “special tool” list. For the automatic transmission, you need Suzuki ATF and specific sealants. For the differentials, the manual lists the correct gear oil viscosity and friction modifier. The special tool section includes part numbers for bearing pullers, oil seal installers, and clutch spring compressors. You can order them or fabricate equivalents, but at least you know what you need. I have seen techs use the wrong sealant because the aftermarket book said “equivalent” – then the case leaked. This manual gives you the Suzuki part number. For other Suzuki models, check out the Suzuki Grand Vitara XL-7 Service Manual if you need similar coverage for a different platform. If you work on motorcycles, the Suzuki VLR1800 2008 Service Manual – OEM Factory Repair Guide is also here. For a compact SUV, the Suzuki Grand Vitara 2005 Service Manual – OEM Factory Specs covers those years.

Understanding how a manual transmission works helps when reading Section 7A. The Manual Transmission article on Wikipedia gives a good overview of the components. For context on how automotive repair standards have evolved, see the Automotive Industry Overview page.

Frequently Asked Questions

What sections are included in the manual?

Seven sections covering manual and automatic transmission, transfer, and differentials.

Is this manual suitable for a beginner DIY mechanic?

The manual explicitly states it is intended for authorized Suzuki dealers and qualified service mechanics. That said, if you have a solid set of tools, follow every WARNING and CAUTION, and read the component inspection steps carefully, a serious DIYer can use it. The torque specs are exact, the procedures are sequential, and the special tool references tell you what you need. Do not skip the foreword or the safety warnings. Page 1 contains air bag system cautions that apply if your SQ416 has an air bag. If you ignore those, you risk unintended deployment. Beginners should have a mentor or at least watch professional videos alongside this book.

Access the Factory Manual from AutoRepairManuals and get the exact same PDF that Suzuki dealers used in 2000. No reprints, no aftermarket compression. 214 pages of OEM data ready to print or view on your tablet. Your transmission rebuild depends on it.
