Suzuki GRAND VITARA XL-7, SQ416, SQ420, SQ625 2001 Service Manual – OEM Factory Specs

If you’re tearing into a 2001 Suzuki Grand Vitara XL-7 or one of the SQ416, SQ420, SQ625 variants, you need the factory documentation. Aftermarket manuals skip steps. They guess at torque values. This Suzuki GRAND VITARA XL-7, SQ416, SQ420, SQ625 2001 Service Manual is the same book Suzuki dealers used. 672 pages of procedures, specifications, and wiring diagrams. No translation errors from a third party. I’ve been turning wrenches for 28 years, and I’ve seen what happens when a tech relies on a generic manual. Stripped threads, blown A/C systems, airbag deployments that should never have happened. This manual keeps you out of that mess.

Suzuki GRAND VITARA XL-7 Service Manual: 672 Pages of Factory Data

The manual is thick. Section 0B covers maintenance schedules for normal and severe driving conditions. You’ll find the oil change intervals, belt inspection procedures, and emission control system checks. Section 1A covers the rear ductwork. But the real meat is in Section 1B – the A/C system. From refrigerant recovery to rear evaporator unit removal, it’s all there. And it’s written in Spanish, because this is the original Suzuki document for the Latin American market. If you can read Spanish, you’re set. If not, the diagrams and torque tables are universal.

Does This Manual Cover the A/C System and Rear Climate Control?

Yes, and it covers it better than any aftermarket manual I’ve seen. Section 1B includes a full diagnostic flow for the front and rear A/C systems. It gives you the performance table at ambient temperatures between 30°C and 35°C. You get wiring circuits, voltage checks, and the solenoid valve relay locations. The manual walks you through refrigerant recovery, evacuation, and charging with HFC-134a. It even tells you the exact oil fill for the compressor. On page [DATA NEEDED] you’ll find the torque specs for the A/C lines. Don’t guess – use the spec. Additionally, the rear A/C unit removal procedure is step-by-step with component locations for the expansion valve, evaporator, blower motor, and ductwork. The wiring diagrams are clear enough that even a home garage enthusiast can trace a short circuit. The factory manual saves you from having to reverse-engineer the system.

Get the Right Torque Specs for Steering and Suspension

Section 3B1 covers the power steering pump drive belt adjustment and hydraulic pressure test. Section 3C1 is the supplemental restraint system – you do not want to mess with airbag components without the factory precautions. I cannot stress that enough. Section 3D gives you control arm bushing service and torque specs. Section 3E covers the rear axle shaft and wheel bearing. Torque values for every fastener are listed. Automotive Industry Overview doesn’t help you here; only the OEM spec will.

Use the factory torque values.

Section 0A: Safety Precautions and Airbag System

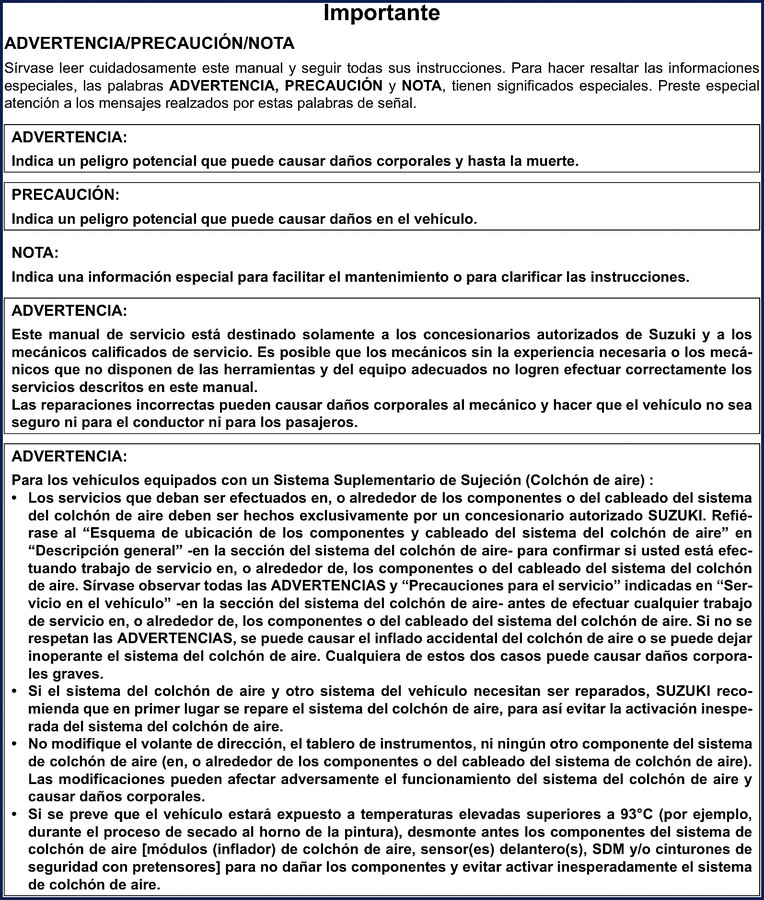

Turn to page 1. The warning about the SRS (Supplemental Restraint System) is printed there in bold. “ADVERTENCIA: Los servicios que afectan ser efectuados en, o alrededor de los componentes o del cableado del sistema del colchón de aire deben ser hechos exclusivamente por un concesionario autorizado SUZUKI.” That means if you’re working near the airbag wiring, you follow the deactivation procedure in this manual. No shortcuts. The manual tells you how to disable the system, how to handle the steering column, and what to do after an accident. Section 3C1 has the full service precautions. Ignore this and you risk injury.

7 Major Systems Diagnosed with Factory Procedures

This manual covers the following systems with section-specific diagnostic tables:
– Engine and emission controls (Section 0B)
– A/C front and rear (Section 1B)
– Steering gear and power steering (Section 3B1)
– Suspension control arms (Section 3D)
– Rear axle and wheel bearings (Section 3E)
– SRS airbag system (Section 3C1)
– General maintenance (Section 0A)
Each section includes step-by-step removal, inspection, installation, and torque values. No generic “tighten securely” – you get the number. For transmission-specific repair procedures, refer to Manual Transmission documentation.

Is this manual in English?

The manual is in Spanish. It was published by Suzuki for the Latin American market.

What torque specs are provided for the rear axle?

Section 3E lists the axle shaft nut torque and wheel bearing preload specifications. Without these values, you risk bearing failure or seal leaks. The manual gives you the exact numbers Suzuki used on the assembly line. You’ll find them in the torque table at the end of the section. I recommend you look up the nut torque before you start – it’s not something you want to guess at. The difference between a properly torqued axle nut and a loose one is a ruined hub assembly.

If you want to work on this Suzuki the right way, get the book that the factory built. Suzuki SQ416, SQ420, SQ625 2000 Service Manual – OEM Factory Specs is available for the previous model year, and Suzuki VLR1800 2008 Service Manual – OEM Factory Repair Guide covers the motorcycle line. For the Grand Vitara, the 2001 manual is the one you need. Suzuki Grand Vitara 2005 Service Manual – OEM Factory Specs is also in our collection. Access the Factory Manual now and keep your repair safe and accurate.
