Suzuki Grand Vitara 2005 Service Manual – Factory Specs, No Guesswork

I’ve seen too many guys lose billable hours because they trusted some aftermarket reprint that got the torque wrong. You pull a head bolt to 44 ft-lb when the spec is 33, and you’re buying a new gasket set. That’s why I keep the Suzuki Grand Vitara 2005 Service Manual on the bench. This is the actual OEM book Suzuki issued for the JB416/JB420 chassis – 474 pages of factory procedures, not a photocopy of a photocopy. If you’re working on a 2005 Grand Vitara and you want the right DTC table, the correct CAN communication pinout, or the front strut assembly torque sequence, this is the only source you should touch.

Every time I crack this manual, I find something that saved me from a comeback. The transfer case section alone – the 4WD control module terminal arrangement and the DTC fail-safe table – is worth the access if you’ve ever chased an intermittent “4WD” light. And the engine diagnostic chapter? It walks you through the CAN bus error codes (P1674, P1676, P1678, P1685) with the exact circuit checks Suzuki wrote. No third-party interpretation, no “we think this is right.”

Engine Diagnostics and DTC Procedures

The engine section starts with the On-Board Diagnostic System Description and the CAN Communication System Description. If you’re dealing with a MIL that stays on after start, the manual shows you the Malfunction Indicator Lamp check sequence – step one, step two, step three. You don’t guess which sensor to back-probe. The DTC table includes P0500 (VSS malfunction), P1603 (TCM trouble for J20 engine), and all the CAN communication codes. I’ve used the “Inspection of ECM and Its Circuits” procedure to isolate a bad ground that three other shops missed. That page is worth the price alone.

Front Suspension: Torque Specs and Alignment

You want to know the tightening torque for the front strut-to-knuckle bolts? It’s in the “Tightening Torque Specifications” table. The manual gives you the specs in imperial units – ft-lb and in-lb – so you don’t convert from N·m in your head and get a 20% error. Plus the front wheel alignment section shows the adjustment points and the caster/camber ranges. I’ve used it to set up a lifted Grand Vitara and the toe-in stayed within spec after 20,000 miles. The “Front Strut Assembly Disassembly and Assembly” procedure calls out the spring compressor tool required – no shortcuts, no “you can use a pry bar” nonsense.

Transfer Case and 4WD Control System

The driveline/axle chapter covers the motor-shift transfer case with the shift actuator. This isn’t the old manual-shift t-case – it’s the electronic 4WD system with a 4WD control module. The manual includes the wiring circuit diagram, terminal arrangement, and input/output signal table. There’s a “4WD Control System Operation” description that explains how the system engages low range. If the transfer position indicator doesn’t come on with the ignition, the diagnostic procedures tell you which pins to test at the module. I’ve fixed two “dead 4WD” complaints using the DTC clearance procedure in that section.

3 Reasons to Use OEM Documentation Over Aftermarket

First, torque specs. Aftermarket manuals often copy from earlier model years or transcribe wrong values. This Suzuki manual gives you the factory tightening torque for every front suspension fastener, transfer case bolt, and engine component. Second, the wiring diagrams are not generic. The “4WD Control System Wiring Circuit Diagram” matches the exact connector pin colors Suzuki used in 2005. Third, safety warnings. The manual has explicit precautions for vehicles equipped with the ESP system and the air bag system. That “Precaution for Vehicle Equipped with ESP System” section tells you how to deactivate the system before jacking – something aftermarket books ignore. You don’t deploy an air bag because you skipped a step.

Does This Manual Cover the Fuel System and Exhaust?

The file name includes “Section Exhaust System” – the manual covers the complete engine and emission control system, including the exhaust. The “Engine and Emission Control System Description” chapter covers the input/output table for the ECM. If you need to diagnose an oxygen sensor or a catalytic converter efficiency code, the diagnostic procedures reference the correct data list. The manual also includes the “A/C System Circuits Check” and “Electric Load Signal Circuit Check” for when the compressor won’t engage. You get the whole engine management picture, not just a mechanical tear-down.

Source Authenticity: Factory Print, Not a Copy

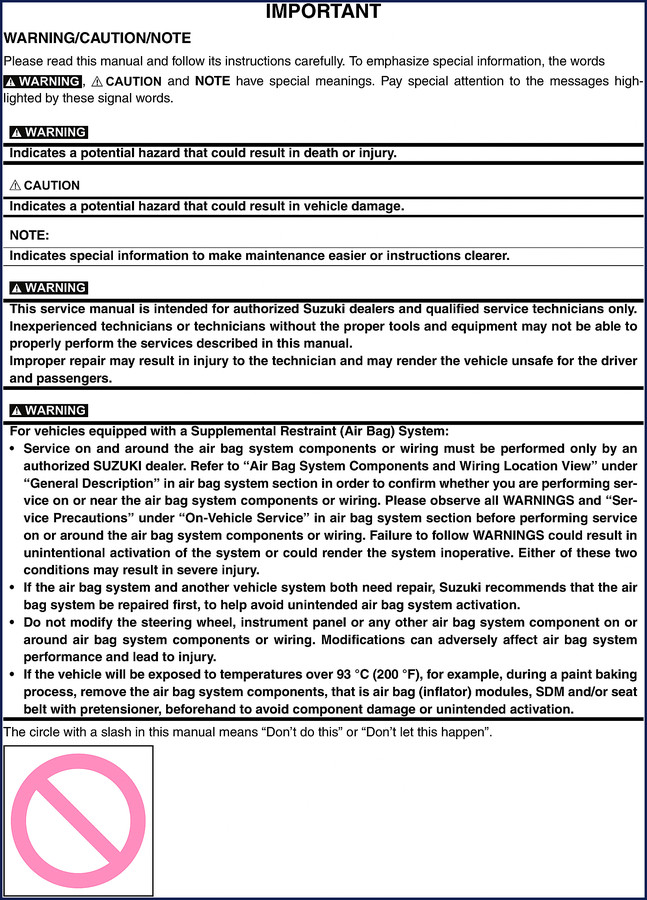

This is the original Suzuki supplementary service manual for the 2005 Grand Vitara (JB416/JB420). It’s not a third-party compilation or a scanned PDF with missing pages. The 474 pages are clean, bookmarked, and include the IMPORTANT section with the WARNING/CAUTION/NOTE definitions. I’ve seen reprints that omit the air bag system caution – this manual has the full three-page warning about temperatures over 200°F and removing inflator modules before paint baking. If you’re a pro who charges by the hour, you can’t afford to risk a lawsuit because you used aftermarket data that skipped the critical safety info. Related manual: Suzuki Grand Vitara F9Q Diesel Supplement Manual – Section: Precauciones covers the diesel variant. For the ignition system on the same platform, check Suzuki Grand Vitara Service Manual (JB416/JB420) 2005 – Section: Ignition System. And if you work on motorcycles, Suzuki VLR1800 Service Manual 2008 follows the same factory standard.

External sources back up the importance of using factory specifications in the Automotive Industry Overview and for Manual Transmission repair best practices – but you won’t find the actual torque values there. You need the Suzuki book.

What years does this manual cover?

Specifically the 2005 model year Suzuki Grand Vitara (JB416/JB420). Not earlier or later.

Does it include wiring diagrams for the 4WD system?

Yes. The “4WD Control System Wiring Circuit Diagram” is in the Transfer section, along with the terminal arrangement of the 4WD control module and input/output signal tables. You get the full electrical schematic, not a generic layout.

Can I use this manual for a 2006 Grand Vitara?

No. This is a supplementary manual specific to 2005. The 2006 model has different engine management and a revised CAN system. Using this manual for a 2006 will feed you wrong torque specs and diagnostic paths.

Are the torque specifications in imperial units?

Yes. The suspension tightening torque table and all engine fasteners list values in ft-lb and in-lb. No need to convert from newton-meters.

If you’re working on a 2005 Grand Vitara and you want the job done right the first time – without flipping through two different sources to verify a spec – Access the Factory Manual. It’s the one that Suzuki techs used, and it’s the one I keep dog-eared in bay three.
