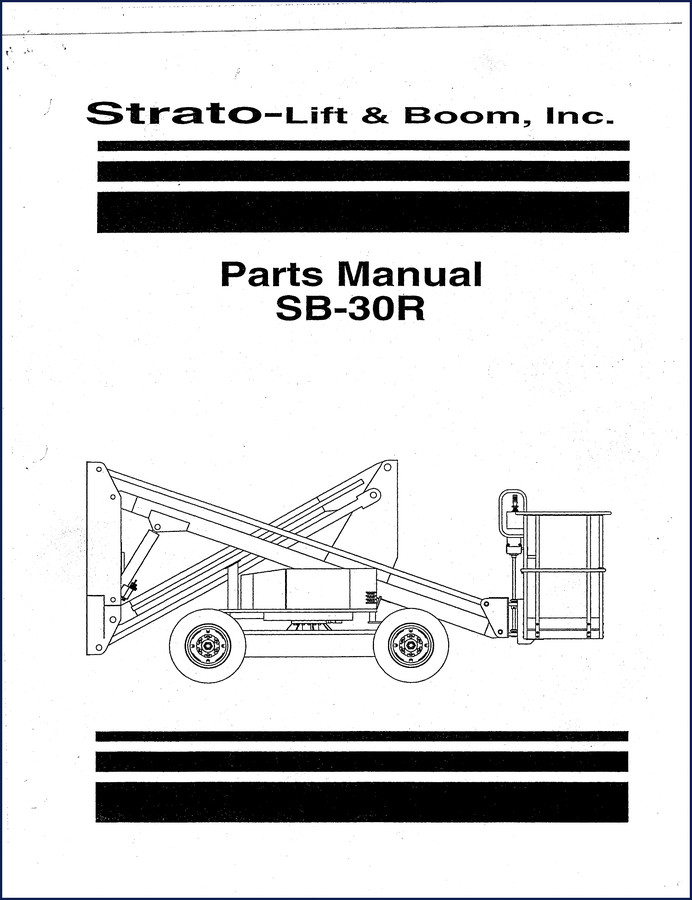

Strato-lift & Boom SB-30R Parts Catalog

If you are wrenching on a Strato-lift & Boom SB-30R and need to order a replacement part, the last thing you want is a parts number that doesn’t match what you have in your hand. I have seen too many guys pull a part off a shelf based on a third-party cross-reference only to find it is the wrong size or thread pitch. That costs you time and money. This Strato-lift & Boom SB-30R Parts Catalog is the OEM document – 44 pages of factory drawings and part numbers, direct from the manufacturer. No aftermarket editing, no guesswork. You get the exact exploded views and numbered lists that the dealer uses.

44 Pages of Factory Part Numbers

Every page in this catalog is an original factory drawing. The bookmarks go from page 1 through page 44 – that is it. No fluff. The document covers the SB-30R model across a specific serial number range: 001046 to 001050. If your machine falls inside that range, these illustrations are exact. Each page shows assemblies like the machine ass’y, boom ass’y, control box, and more, with callouts referencing part numbers. For example, on page 5 you see items like PIN 3/4 x 1 1/4 LG (part number 0034211) and hydraulic rotator assembly. You do not have to guess what a part looks like – the drawing shows it.

Serial Number Range: Why It Matters

This catalog lists parts for serials 001046-001050. If you own an SB-30R outside that range, you need to check if the manufacturer made revisions. The drawings are dated 04/06/03, so this reflects that production period. I recommend confirming your machine serial before ordering any components. The catalog is not a service manual – it won’t tell you how to rebuild the boom or torque the bolts. But if you are hunting down a part number for that upper boom pivot pin or the control box decals, this is the source.

Aftermarket vs. OEM: The Difference in a Pinch

I have had a handful of students and new techs bring me aftermarket “equivalents” that are close but not correct. Threads mismatch, shoulder diameters are off, or the material grade is wrong. With an OEM parts catalog, you get the exact part number that Strato-lift & Boom assigned. You can take that number straight to the dealer or a trusted supplier and know you are getting the right piece. This catalog also includes notes like “THIS DRAWING IS PROPERTY OF STRATO-LIFT, INC. IT IS NOT TO BE REPRODUCED…” – that is your assurance this is an original document, not a scanned copy that lost resolution.

How to Use This Catalog on the Job

Spread this PDF on a tablet or print out the pages you need. Each assembly drawing has a numbered list adjacent to it. Look at page 5 as an example: you see part numbers for the lower control arm, upper boom, hydraulic fitting, and decals. Cross-reference the callout number with the list, and you have the factory part number. I keep a grease pencil handy to mark what I need. For those of you who also work on other equipment, check out the Massey-Harris-Ferguson FF 30 GS 1957 Parts Catalog | OEM Fastener Guide”>Massey-Harris-Ferguson FF 30 GS 1957 Parts Catalog for older tractor work, or the Futura Wear Technology Parts Catalog”>Futura Wear Technology Parts Catalog if you deal with wear parts. The LANDTRAC TRACTOR Parts Manual Models 410-550 DTC – Section: Numerical Index”>LANDTRAC TRACTOR Parts Manual also has a useful numerical index if you need to look up parts by number.

Is This a Service Manual or a Parts Catalog?

This is a parts catalog, not a repair manual. It does not contain torque specs, fluid capacities, or step-by-step disassembly procedures. If you need that, you need the separate service manual. But for ordering the correct bolt, seal, or hydraulic component, this catalog is indispensable. The Automotive Industry Overview”>Automotive Industry has standards, but off-highway equipment like this boom often uses proprietary parts. Do not assume a generic bolt will work – get the factory number.

Does this catalog include torque specifications?

No. This is a parts catalog. Torque values are only in the shop service manual.

Can I use this for SB-30R machines with serial numbers outside 001046-001050?

Possible but not guaranteed. Strato-lift & Boom may have revised parts for later builds. If your serial is close, you can compare drawings, but I recommend finding the catalog that matches your exact serial range.

Is this a service manual or a parts catalog?

It is a parts catalog. It contains exploded-view diagrams and numbered parts lists, not repair procedures or diagnostic steps.

How are the parts exploded views organized?

Each major assembly has its own page or multi-page section. For example, the machine ass’y covers pages 2-3, the boom ass’y is on page 5, and there are separate pages for decals, hydraulic fittings, and control box components. The drawings are clear enough to identify part shape and orientation.

If you are tired of cross-referencing wrong aftermarket lists and want the real factory part numbers for your Strato-lift & Boom SB-30R, this is the document you need. 44 pages, straight from the manufacturer. Access the Factory Manual and keep it on your shop tablet or phone.
